Quick Details
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOOSAFE
-
Model Number:
-
LS-POE2MP24
-
Technology:
-
NetWork
-
Keyword:
-
h.265X poe nvr kit
-
Lens:
-
4mm(6mm,8mm optional)
-
Image Sensor:
-
1/3" CMOS
-
Resolution:
-
1080p
-
Video compression standards:
-
H.265X
-
Channel:
-
24 channel POE NVR kit
-
IR LED:
-
4 pcs LEDs array
-
Motion detection:
-
Support
-
Channels:
-
24
Quick Details
-
Special Features:
-
NIGHT VISION, One-way Audio, Motion Detection, Vandal-proof
-
Network:
-
ONVIF, SDK
-
Function:
-
Waterproof / Weatherproof, One-way Audio, Vandal-proof, NIGHT VISION, Alarm I/O, RESET, Built-in Mic
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM, Software reengineering
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOOSAFE
-
Model Number:
-
LS-POE2MP24
-
Technology:
-
NetWork
-
Keyword:
-
h.265X poe nvr kit
-
Lens:
-
4mm(6mm,8mm optional)
-
Image Sensor:
-
1/3" CMOS
-
Resolution:
-
1080p
-
Video compression standards:
-
H.265X
-
Channel:
-
24 channel POE NVR kit
-
IR LED:
-
4 pcs LEDs array
-
Motion detection:
-
Support
-
Channels:
-
24

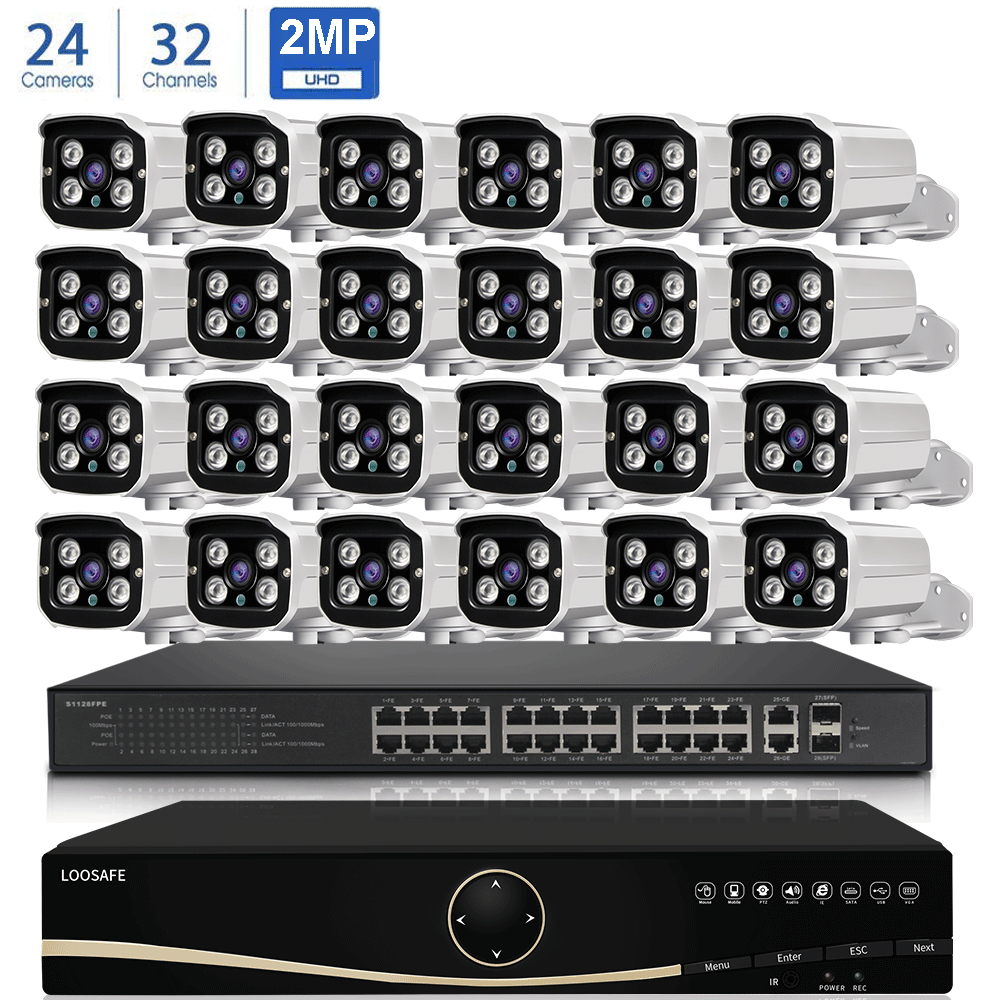

LOOSAFE 24CH 1080p security camera poe system alram home outdoor ip camera motion detection audio record nvr kit
|
|
Lens |
3.6mm |
|
Sensor |
1/3" CMOS |
|
|
S/N Ration |
>47db |
|
|
Image Pixel/Resolution |
1920*1080 |
|
|
Image Compression: |
H.265X |
|
|
View Angle |
75.7° - 19.8° |
|
|
Infrared Distance |
20m - 50m |
|
|
Mini Illumination |
0 Lux (IR-Cut) |
|
|
Day & Night |
Automatic IR-Cut |
|
|
3D-DNR |
Auto/BW/Color |
|
|
OSD |
Date Time/Tilt |
|
|
White Blance |
Auto |
|
|
Stream |
Dual Stream: 1920*1080@25fps |
|
|
Internet Interface |
1*RJ45 Ethernet Interface, 802.11b/g/n |
|
|
Power |
12V DC/2A (Output), 100-240V AC (Input) , 50-60HZ |
|
|
Materials |
Aluminum Alloy |
|
|
Waterproof |
IP66 |
|
|
Operation Temperature |
-25 ℃ - 45 ℃ |
|
|
Size |
L100*W60*H66mm |
| Model | LS-2P323NVR(H.265X) |
| Main processor | Hi3536C |
| Operating system | embedded Linux operating system |
| system resource | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation |
| Operation interface | 16-bit true color graphical wipe single interface, support for mouse operation |
| Screen display | 1/4/8/16/232Depending on the channel mode |
| Video access mode | 32ch support 25ch 5mp/32ch 1080p |
| Access to broadband | Access 300mbs transfer: 240mbs |
| Image coding | H.265X/H.264 adaptive compression technology |
| Monitoring quality | Max 4k |
| Motion Detection | Dependent on the front camera |
| Standard | G.711A |
| Local playback | 1ch 4k/2ch 5mp/4ch 1080p |
| Record way | Manual recording,>alarm recording> dynamic detection,>timer recording |
| Video query | Time retrieval point, calendar search, time search, channel search |
| Video record | HDD/network |
| Backup way | U disk, network backup, USB mobile hard disk, USB burning, SATA burning |
| Video output | 1ch VGA,1ch HDMI |
| Neyeork interface | RJ45 10M/100M/1000M Adaptive network port |
| USB interface | 2*USB |
| SATA interface | 2*SATA interface(support 6TB) |
| Power | 12V 4A |
| Power consumption | <10W(No contain hdd) |
| Temperature | 0~+55℃ humidity 10%~90% |
| Air pressure | 86kpa-106kpa |
| Size | 320*50*240mm |
