Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KY
-
Model Number:
-
KY45FG/KY40FG/KY32FG
-
Weight (KG):
-
150 KG
-
Product name:
-

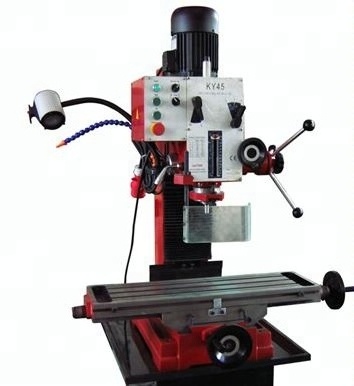

Drilling Milling Machine
-
Precision:
-
High Precision
-
Color:
-
Black
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Step of speed:
-
6
-
Spindle taper:
-
MT4/R8
-
Spindle travel:
-
130mm
-
Weight:
-
150 kg
-
Power(W):
-
1500W
-
Spindle speeds:
-
80-1500 r.p.m
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
45 mm
-
Range of Spindle Speed(r.p.m):
-
80 - 1500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KY
-
Model Number:
-
KY45FG/KY40FG/KY32FG
-
Weight (KG):
-
150 KG
-
Product name:
-
Drilling Milling Machine
-
Precision:
-
High Precision
-
Color:
-
Black
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Step of speed:
-
6
-
Spindle taper:
-
MT4/R8
-
Spindle travel:
-
130mm
-
Weight:
-
150 kg
-
Power(W):
-
1500W
-
Spindle speeds:
-
80-1500 r.p.m
Product Description
|
Specifications
|
|
|
|
Drilling capacity
|
32mm/40mm/45mm
|
|
|
Face milling capacity
|
80mm
|
|
|
End milling capacity
|
32mm
|
|
|
Max. Distance from spindle nose to table
|
450mm
|
|
|
Min. Distance from spindle axis to column
|
260mm
|
|
|
Spindle travel
|
130mm
|
|
|
Spindle taper
|
MT4 or R8
|
|
|
Step of speed
|
6
|
|
|
Range of spindle speed 50Hz
|
80-1250 rpm
|
|
|
60Hz
|
95-1500 rpm
|
|
|
Swivel angle of headstock perpendicular Size of table
|
800*240mm/700*240mm
|
|
|
Forward and backward travel of table
|
175mm
|
|
|
Left and right travel of table
|
500mm/400mm
|
|
|
Power
|
1.5KW
|
|
|
Voltage/frequency
|
As customer's requirement
|
|
