Quick Details
-
Brand Name:
-
HBM
-
Model Number:
-
LXLC
-
size:
-
40-600mm
-
Accuracy:
-
class A
-
Color:
-
As picture /customized
-
Packing:
-
Carton box/ wooden carton
-
Connection:
-
Screw Thread/Flange End
-
Installation Type:
-
Horizonal/Vertival
-
Application:
-
Water Resource Management
-
Product name:
-
Water Flow Meter
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
1 years, 24 months
-
Type:
-
Compound meters, Turbine meters
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBM
-
Model Number:
-
LXLC
-
size:
-
40-600mm
-
Accuracy:
-
class A
-
Color:
-
As picture /customized
-
Packing:
-
Carton box/ wooden carton
-
Connection:
-
Screw Thread/Flange End
-
Installation Type:
-
Horizonal/Vertival
-
Application:
-
Water Resource Management
-
Product name:
-
Water Flow Meter
-
Certification:
-
ISO

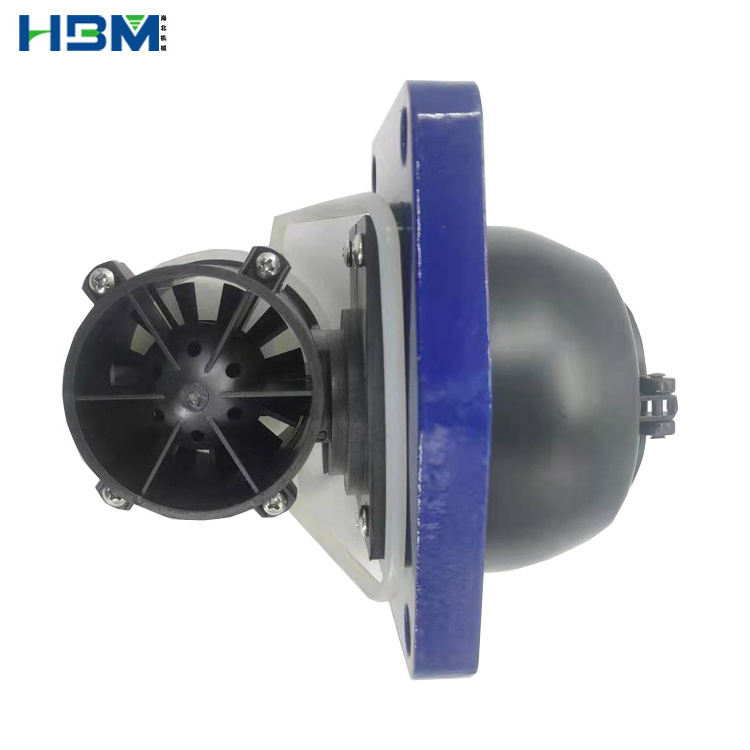

water meter parts
| Size | Class |
R= Q3/Q1 |
Q4 Overload Flow |
Q3 Permanent Flow |
Q2 Transitional Flow |
Q1 Minimum Flow |
Minimum Reading |
Maximum Reading |
| DN | m³/h | m³ | ||||||
| 50 | A | 50 | 31.3 | 25 | 0.8 | 0.5 | 0.0002 | 999,999 |
| B | 80 | 50 | 40 | 0.5 | 0.32 | |||
| 65 | A | 50 | 50 | 40 | 1.28 | 0.8 |
0.0002 |
999,999 |
| B | 80 | 0.8 | 0.5 | |||||
| 80 | A | 50 | 78.8 | 63 | 2 | 1.26 | 0.002 | 999,999 |
| B | 80 | 1.3 | 0.79 | |||||
| 100 | A | 50 | 125 | 100 | 3.2 | 2 | 0.002 | 999,999 |
| B | 80 | 2 | 1.25 | |||||
| 125 | A | 50 | 200 | 160 | 5.12 | 3.2 | 0.002 | 999,999 |
| B | 80 | 3.2 | 2 | |||||
| 150 | A | 50 | 312.5 | 250 | 8 | 5 | 0.002 | 999,999 |
| B | 80 | 5 | 3.1 | |||||
| 200 | A | 50 | 500 | 400 | 12.8 | 8 | 0.002 | 999,999 |
| B | 80 | 8 | 5 | |||||
| 250 | A | 25 | 787.5 | 630 | 40.32 | 25.2 | 0.002 | 9,999,999 |
| B | 50 | 20.16 | 12.6 | |||||
| 300 | A | 25 | 1250 | 1000 | 64 | 40 | 0.02 | 9,999,999 |
| B | 50 | 32 | 20 | |||||
DIMENSIONS
| Type | Size |
L Length |
H Height |
Connecting flange |
||
| mm |
D1 Outside diameter |
D2 Bolt circle diameter |
Conneting Bolts (n-M) |
|||
|
LXLC-50
|
50 | 200 | 261 | 165 | 125 |
4-M16
|
|
LXLC-65
|
65 | 200 | 271 | 185 | 145 |
4-M16
|
|
LXLC-80
|
80 | 225 | 279 | 200 | 160 |
8-M16
|
|
LXLC-100
|
100 | 250 | 289 | 220 | 180 |
8-M16
|
|
LXLC-125
|
125 | 250 | 299 | 250 | 210 |
8-M16
|
|
LXLC-150
|
150 | 300 | 319 | 285 | 240 |
8-M20
|
|
LXLC-200
|
200 | 350 | 346 | 340 | 295 |
8-M20(1.0MPa)
|
|
12-M20(1.6MPa)
|
||||||
|
LXLC-250
|
250 | 450 | 450 |
395(1.0MPa)
|
350(1.0MPa)
|
12-M20(1.0MPa)
|
|
405(1.6MPa)
|
355(1.6MPa)
|
12-M24(1.6MPa)
|
||||
|
LXLC-300
|
300 | 500 | 478 |
445(1.0MPa)
|
400(1.0MPa)
|
12-M20(1.0MPa)
|
|
460(1.6MPa)
|
410(1.6MPa)
|
12-M24(1.6MPa)
|
||||
