1. Self-loading concrete transport trucks automatically load, measure, mix, and discharge.
2. These self-contained mixers are user-friendly, highly efficient, and deliver excellent mixing results.
3. They come with a dedicated water supply system to ensure high-quality concrete.
4. With only one operator needed, they handle driving, loading, and material mixing tasks efficiently.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
6900*3100*3640mm
-
Power:
-
110kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SWANTECH
-
Weight:
-
11200 kg
-
Dimension(L*W*H):
-
6900*3100*3640mm
-
Power:
-
110kw

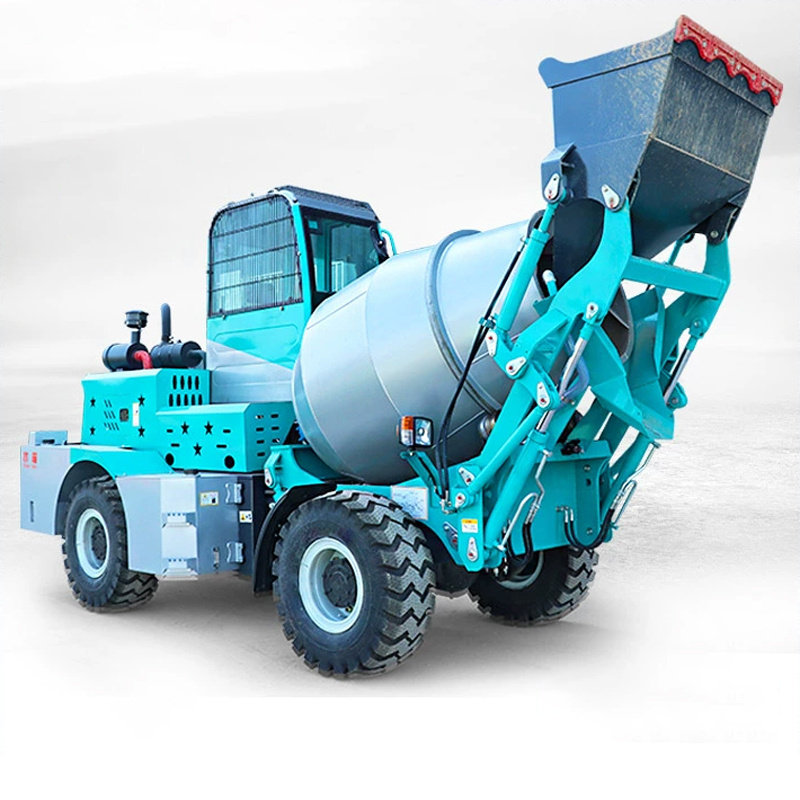

5.5m3 Self Loading Ready Mix Concrete Mixer Truck Price China Used Self Loading Mixer Truck Concrete Pump Machine
A
s
elf-loading concrete mixer
is a hybrid of a concrete mixer truck and a cement mixer. It seamlessly automates the process of feeding, measuring, mixing, and discharging concrete mixture. This innovative machine not only saves valuable time but also ensures precise and consistent concrete quality. Whether it's for construction sites, remote locations, or large-scale projects, the self-loading concrete mixer is the ultimate solution for efficient and hassle-free concrete production. Streamline your operations with this versatile and dependable equipment.
Specification
|
Model
|
SCM-55
|
|
Dimension
|
6900*3100*3640mm
|
|
Weight
|
11200KGS
|
|
Wheelbase
|
3350mm
|
|
Speed
|
42km/h
|
|
Min Turning Radius
|
6200mm
|
|
Min ground clearance
|
380mm
|
|
Engine model
|
YIQI XICHAI 6110
|
|
Rated power
|
110KW
|
|
Drive method
|
Torque converter
|
|
Gear level
|
4 forward 4 reverse
|
|
Water supply method
|
Hydraulic water supply pumps
|
|
Maximum Climbing Degree
|
45°
|
|
Transmission
|
ZL-315
|
|
Oil Tank
|
180L
|
|
Reducer
|
HJ80-43
|
|
Water tank
|
860L
|
|
Drum capacity
|
7800L
|
|
Drum rotary speed
|
20times/min
|
|
Concrete production
|
5.5 cubic meter
|
ADVANTAGE
Product Description
Details Images
Branded Engine:
Branded engine with low fuel consumption and sufficient horsepower, quality is guaranteed.
Slewing support: closed wheel screw, sealing, refusing to sand, dust and other debris into the
Slewing support: closed wheel screw, sealing, refusing to sand, dust and other debris into the
Imported motor:
Imported tank rotary motor, stable performance, high torque, sufficient power, no oil seepage.
Parking camera: The whole vehicle is equipped with a camera, real-time monitoring around, to protect you and the surroundings safely.
Parking camera: The whole vehicle is equipped with a camera, real-time monitoring around, to protect you and the surroundings safely.
Wear-resistant steel wire siped tires have a strong anti-slip grip and can adapt to any difficult terrain.
Packing & Delivery
PACKAGE
1.Standard export packaging by container, which should be applicable to international requirement.
2.Big size equipment will be
fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
3.Special packing requirement from clients is available based on previous notice for self loading trailer mounted 1 yard concrete mixer machine.
