Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY011
-
Torque:
-
request
-
Applications:
-
Electric sofa
-
Color:
-
Black / White
-
Thrust:
-
6000N
-
Stroke:
-
50-1000mm
-
Limit switches:
-
inner
-
Protection class:
-
IP43/IP65
-
Function:
-
Driving
Quick Details
-
Speed(RPM):
-
Higher speed
-
Continuous Current(A):
-
0.1-5A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY011
-
Torque:
-
request
-
Applications:
-
Electric sofa
-
Color:
-
Black / White
-
Thrust:
-
6000N
-
Stroke:
-
50-1000mm
-
Limit switches:
-
inner
-
Protection class:
-
IP43/IP65
-
Function:
-
Driving

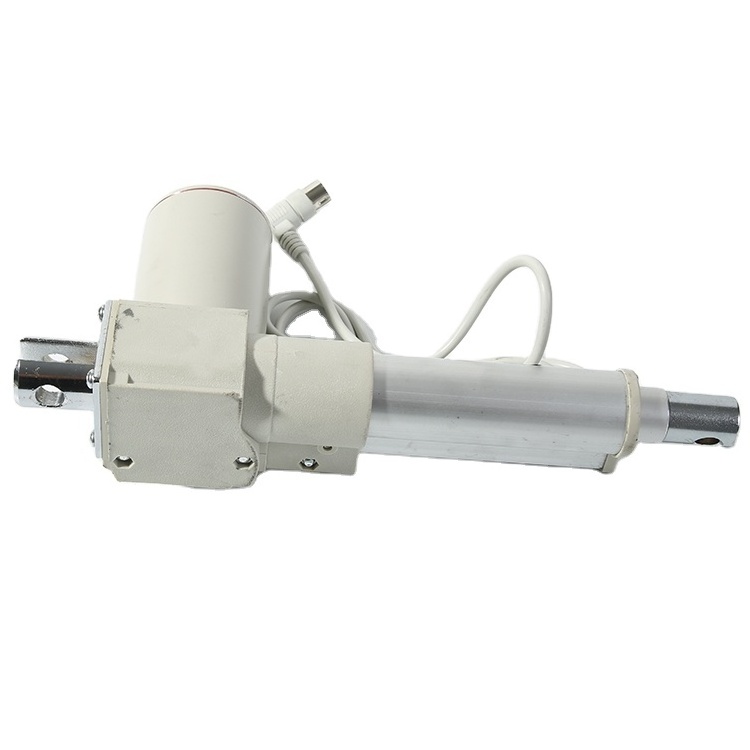

Specifications of FY011 Linear Actuator :
FY011 Linear Actuator is a multipurpose product . By advantage of its small size and powerful comprehnsive funtion , it is popular in furniture ,medical equipmet, office and so on .
Feature :
1) High quality
2) Low noise
3) Competitive price
4) Excellent after-sale service
FY011 Linear Actuator specifications :
| 1) 12v or 24v DC motor |
| 2) Thrust up to 6000N in push , and up to 4000 N in pull |
| 3) Elegant and compact design with small instanllation dimensions |
| 4) Built-in limit switches ( not adjustable after leaving factory ) |
| 5) Aluminium or zinc outer tube / inner tube |
| 6) Steel back fixture |
| 7) Standard protection class |
| 8) Noise level < 50 db |
| 9) Warranty : Two years |
| 10) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use |
Specifications of the cntrol box--FYK011
| Input Voltage | 110 or 220V AC |
| Output Voltage | 24V DC |
| Output Power | 50VA |
| Type of duty | 10%~50% |
We can make the products as our customers' requirements .
|
Name: |
Linear Actuator |
|
Model: |
FY011 |
|
Usage: |
Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use |
|
Input Voltage: |
12v or 24v DC |
|
Load Capacity: |
750N, 1500N, 4000N, 6000N |
|
Free Load Speed: |
30mm/s, 18mm/s, 8mm/s, 4mm/s |
|
Standard Stroke: |
50 mm --- 1000mm (Optional) |
|
Installation Dimension: |
S + 175mm |
|
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
|
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
|
Work Temp.: |
-26 to 65 centigrade |
|
Protection Grade: |
IP43, IP54, IP65 |
|
Certificate: |
CE / EMC + LVD, RoHS |
|
Control Box Used: |
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A |
|
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 |
|
|
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 |
|
|
Control 4 Linear Actuators: FYK012-4, FYK016-4 |
|
|
Control 5 Linear Actuators: FYK012-5, FYK016-5 |
|
|
Control 6 Linear Actuators: FYK016-6 |
|
|
Handset Used: |
All FYH Series Handset, Pls contact us for detail pictures. |
