Quick Details
-
Type:
-
Upper Cistern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hansbo
-
Model Number:
-
8801.13.1
-
Material:
-
Stainless Steel
-
Installation Type:
-
Wall Mounted
-
Drainage Pattern:
-
P-trap, S-trap
-
Structure:
-
Two Piece
-
Flushing Method::
-
Gravity Flushing
-
Capacity:
-
8L
-
Tickness:
-
90mm
-
Displacement:
-
3L/6l 3L/4.5L
-
Size:
-
1185*527*115mm
Quick Details
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Type:
-
Upper Cistern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hansbo
-
Model Number:
-
8801.13.1
-
Material:
-
Stainless Steel
-
Installation Type:
-
Wall Mounted
-
Drainage Pattern:
-
P-trap, S-trap
-
Structure:
-
Two Piece
-
Flushing Method::
-
Gravity Flushing
-
Capacity:
-
8L
-
Tickness:
-
90mm
-
Displacement:
-
3L/6l 3L/4.5L
-
Size:
-
1185*527*115mm

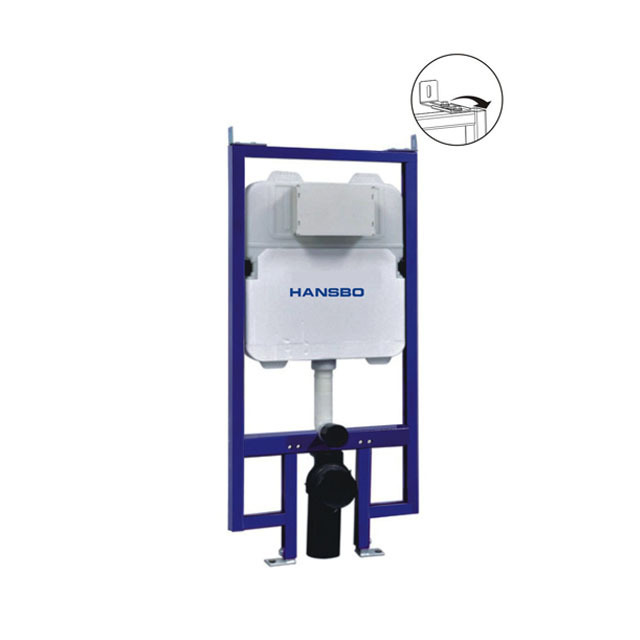

Product classification :Mega concealed cistern
Cistern thickness :90mm
Installation :Wall-in
Button's position :Front push
Cistern thickness :90mm
Installation :Wall-in
Button's position :Front push
|
Application
|
Characteristics
|
Ordering information
|
Product Details
|
|
1. Suitable for half wall front installation of solid wall or groutless wall 2. Suitable for floors with a thickness of 80-200mm
3. Suitable for wall-mounted toilets with mounting holes fixed spacing of 180mm or 230mm. |
1. Bracket height 1185mm
2. The amount of flushing water is adjustable
3. Top water supply link
4. Self-supporting stand
5. Water tank insulation and anti-condensation protection
6. Paint, blue,
7. Galvanized support frame, adjustable between 0-200mm
|
1.1/2” x 3/8” Water Supply Angle Valve
2. Sewage elbow, Ф90/110, optional PVC or HDPE material
3. Flushing link pipe, Ф45,
standard length 180mm, can be customized 250mm
4. Sewage connection pipe, Ф90, standard length 180mm, can be customized 250mm
5.Flushing link pipe rubber ring, sewage link pipe rubber ring
6. Maintenance port protection frame, ABS material, can be cut
according to the actual height
7. Large anti-mud plug, small anti-mud plug
8.2 sets of M12 ceramic fixing screws
9.6 sets of expansion fixing screws
|
1. The large flushing water volume can be adjusted between 6L/7.5L.
2. Small flushing volume can be adjusted between 3L/4L.
3. The factory default flushing volume is 3L/6L.
|
