Glass Door Display Cold Room Supermarket Cold Storage Room Walk in Cooler Freezer Containers Refrigeration Equipment Fan Cooling

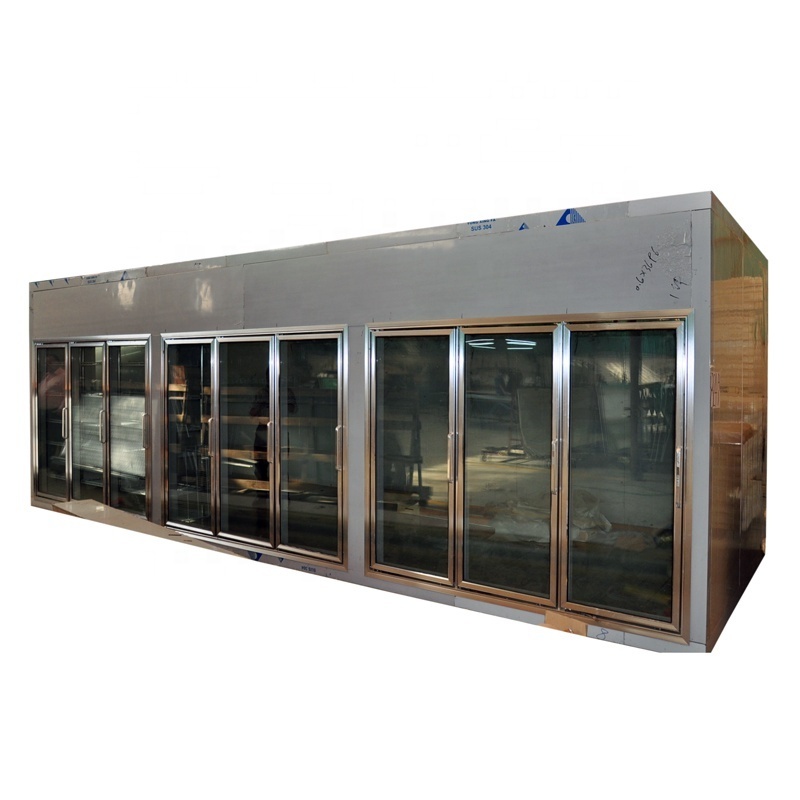

Supermarket glass door display cold room

Specification

Cold room temperature 4~8degree C

Cold room size 7069mm L*950mm W*2300mm H

9-heated tempered glass door

Auto-defog and auto-defrost

Feature

1.make up of polyurethane panel thick 100mm, danisty of 43kg/m3, self-extinguish . Whited-painted galvanized steel covered on both sides of polyurethane panel.Every panel is with gasket to strengthen the seal performance.

2.panels are cam lock type , use hexagonal key to assemble and disassemble.

3.total 9 sets of heated tempered glass door with aluminium alloy doorframe

4.provide lights for the  glass doors

5. white plastic dipping shelves behind the glass door

6.high efficient air cooled Copeland compressor and fine quality evaporator to provid even cold air inside the cold room.

8.offer control box , copper pipe and preservation , drainage system , wire , light and switch etc to install whole cold room refrigeration system.

Cold room Assemble and Details pictures

Refrigeration unit of the Supermarket glass door display cold room

--outside unit: usually we choose Bitzer or Copeland or Danfoss Compressor

--hermetic/ semi-hermetic/ monoblock

--air cooled

--refrigerant R404a

DACHANG company provide the pefect solutions to the modular walk in cooler for 28years !

DACHANG company attend the related exhibitions every year.
