Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
60-80HP
-
Working width:
-
1650-2050 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
Quick Details
-
Weight (KG):
-
443
-
Type:
-
Flail mower
-
Use:
-
mowing weeds
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
60-80HP
-
Working width:
-
1650-2050 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic

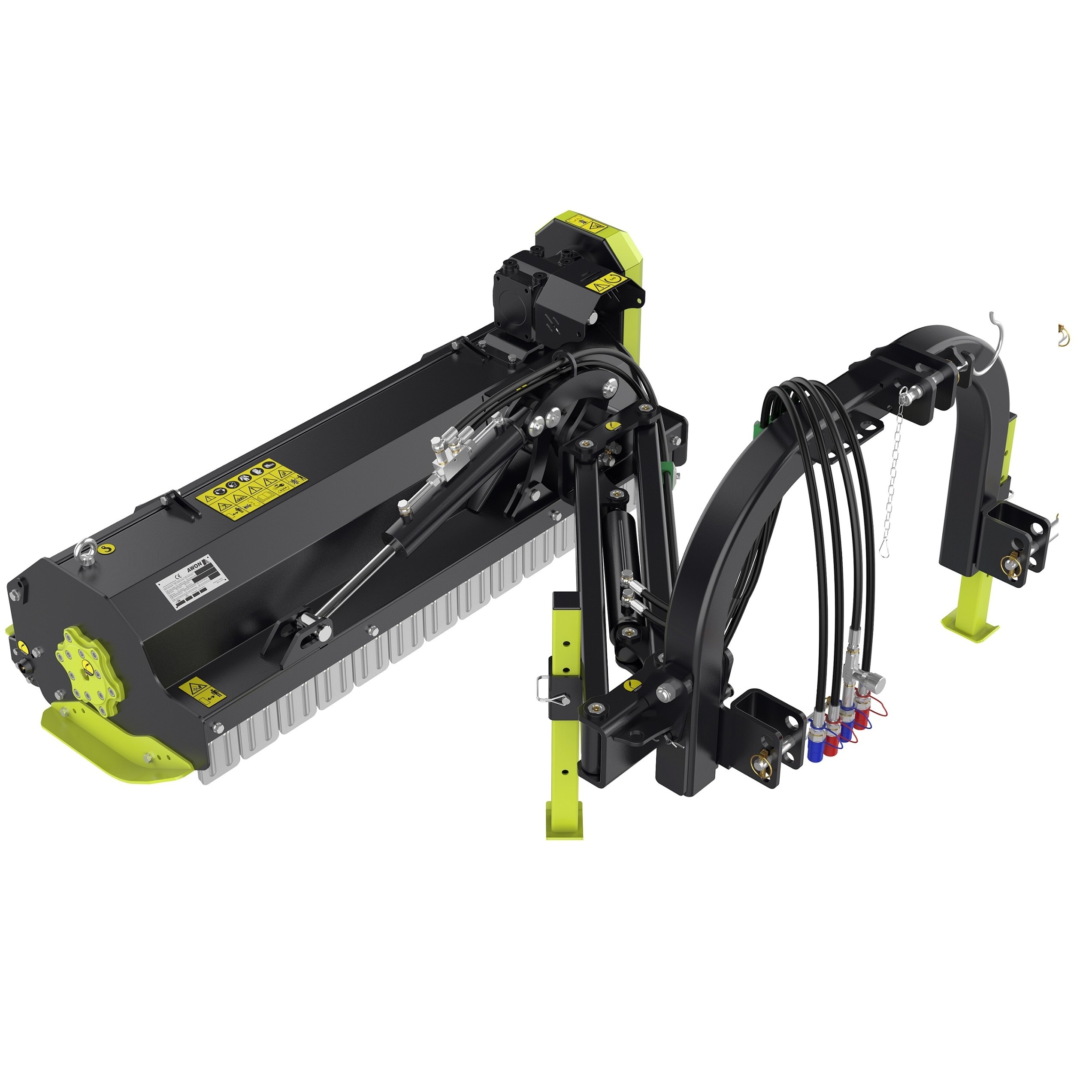

Awon Rear-Side Flail Mower
SFM rear-side series are rear mounted,PTO driven flail mowers for tractors. 10 models in total,working width varies from 1,200 to 2,400mm,power demand 25-130HP.SFM series can be typically aggregated with tractors with 3-point hitch of Cat.Ⅰor Ⅱ.SFM with paralellogram arm, enables operation in-line or at the side of the tractor.Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°).SFM series are specially designed for carriageway maintenance,green belts,scarps,embankments,road shoulders or ditches.
The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment
Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical
safety breakaway device • Mowing height adjustment with ground following
bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
safety breakaway device • Mowing height adjustment with ground following
bar • Wide-angle PTO shaft • Automatic tension of V-belts •Hammer Blades•3-point hitch
Main Features
1.Boom reach up:
up to 90°，down to -45°
2.Boom reach out:
80 degrees offset
3.Transport:
AWON series transport places the cutter head to the rear of the tractor for optimum operator visibility
4.Operation:
1)Enables rise of the machine when obstacle is met
2)Owing to the paralellogram arm works perfectly for heavy-duty road maintenance Assignments
|
Model
|
SFM165
|
SFM185
|
SFM`205
|
|
Weight(Kg)
|
443
|
460
|
507
|
|
Cutting Width(mm)
|
1650
|
1850
|
2050
|
|
PTO Input Speed
|
540
|
540
|
540
|
|
Number of blades
|
18
|
22
|
24
|
|
Power required(HP)
|
60-80
|
60-80
|
60-80
|
AWON Group was founded in 2006 with its headquarter in the Netherlands, is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. for some years now AWON Machinery has designed and manufactured a wide range of machinery including:mower, mulcher,wood shredder, cotton baler etc. Mulching is an important part of modern agriculture and helps providing a better growing
environment
. Uniform application of the mulch prevents soil erosion and pesticides, helps the decomposition of crop resides and fast absorption of the nutrient value, and ultimately increases soil fertility.
AWON Group attached special importance to China market, AWON factory founded in Nantong in 2012 to support the domestic market of China and put into production in the same year. And a professional design team dedicated to design products based on the characteristic of China’ s agricultural development was built in 2015,more and more advanced products are introduced and produced into the localization process and devoted ourselves for the efforts of speeding up the agricultural mechanization of China. The sales-network of our company all over China would offer you our best service.
AWON Group attached special importance to China market, AWON factory founded in Nantong in 2012 to support the domestic market of China and put into production in the same year. And a professional design team dedicated to design products based on the characteristic of China’ s agricultural development was built in 2015,more and more advanced products are introduced and produced into the localization process and devoted ourselves for the efforts of speeding up the agricultural mechanization of China. The sales-network of our company all over China would offer you our best service.
