Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XW-ETLINK
-
Model Number:
-
XW-601-17-B
-
Current Rating:
-
1.5A
-
Voltage Rating:
-
125v
-
Contact Resistance:
-
30milliohm Max
-
Isolation Voltage:
-
1500V/AC(Input to Output)
-
Mating/Unmating Force:
-
2.2KG.F MAX
-
Retention Strength:
-
7.7KG.F MIN Between Jack And Plug
-
Operating Life:
-
750 Cycles MIN
-
Operation Temperature:
-
-40℃ to +85℃
-
OEM/ODM:
-
YES
Quick Details
-

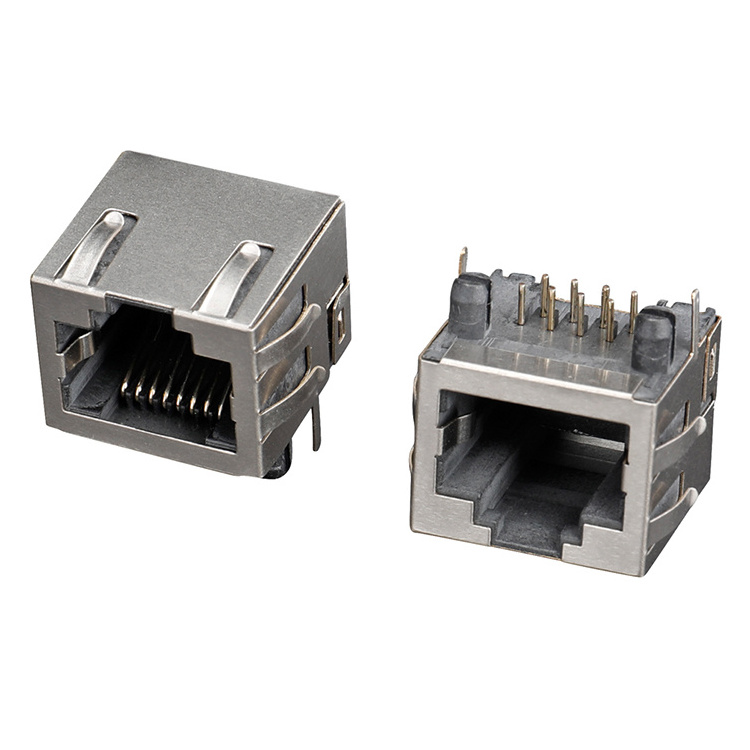

Type:
-
RJ45
-
Application:
-
PCB
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XW-ETLINK
-
Model Number:
-
XW-601-17-B
-
Current Rating:
-
1.5A
-
Voltage Rating:
-
125v
-
Contact Resistance:
-
30milliohm Max
-
Isolation Voltage:
-
1500V/AC(Input to Output)
-
Mating/Unmating Force:
-
2.2KG.F MAX
-
Retention Strength:
-
7.7KG.F MIN Between Jack And Plug
-
Operating Life:
-
750 Cycles MIN
-
Operation Temperature:
-
-40℃ to +85℃
-
OEM/ODM:
-
YES
Note: All certificates are authentic and valid. If you need the certificate details, please contact customer service to provide
Specification
|
Electrical
|
|
|
|
|
||||
|
1.Current Rating
|
1.5 amps
|
|
|
|
||||
|
2.Voltage Rating
|
125vac
|
|
|
|
||||
|
3.Insulation Resistance
|
500 MΩmin
|
|
|
|
||||
|
4.Contact Resistance
|
30 MΩmax
|
|
|
|
||||
|
5.Withstanding Voltage
|
AC 1000V RMS 50Hz or 60Hz 1 min
|
|
|
|
||||
|
Mechanical
|
|
|
|
|
||||
|
1.Retention Strength
|
7.7KG.F min between jack and plug
|
|
|
|
||||
|
2.Durability
|
750 mating cycles min
|
|
|
|
||||
|
Material
|
|
|
|
|
||||
|
1.Housing
|
PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
|
|
|
|
||||
|
2.Contact Wire
|
Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
|
|
|
|
||||
|
3.Shield
|
0.20~0.25mm thickness brass with tin plated
|
|
|
|
||||
|
4.Gold Plating
|
1u" 3u" 6u" 15u" 30u" 50u"
|
|
|
|
||||
|
5.RoHS peak wave solder
|
RoHS peak wave solder temperature rating 260℃±5℃
|
|
|
|
||||
|
Operating and Storage Temperature
|
|
|
|
|
||||
|
Operating Temperature
|
-40℃ to 85℃
|
|
|
|
||||
|
Storage Temperature
|
-40℃ to 85℃
|
|
|
|
||||
|
APPLICATION
|
|
|
|
|
||||
|
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK,
|
|
|
|
|
||||
|
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
|
|
|
|
|
||||
