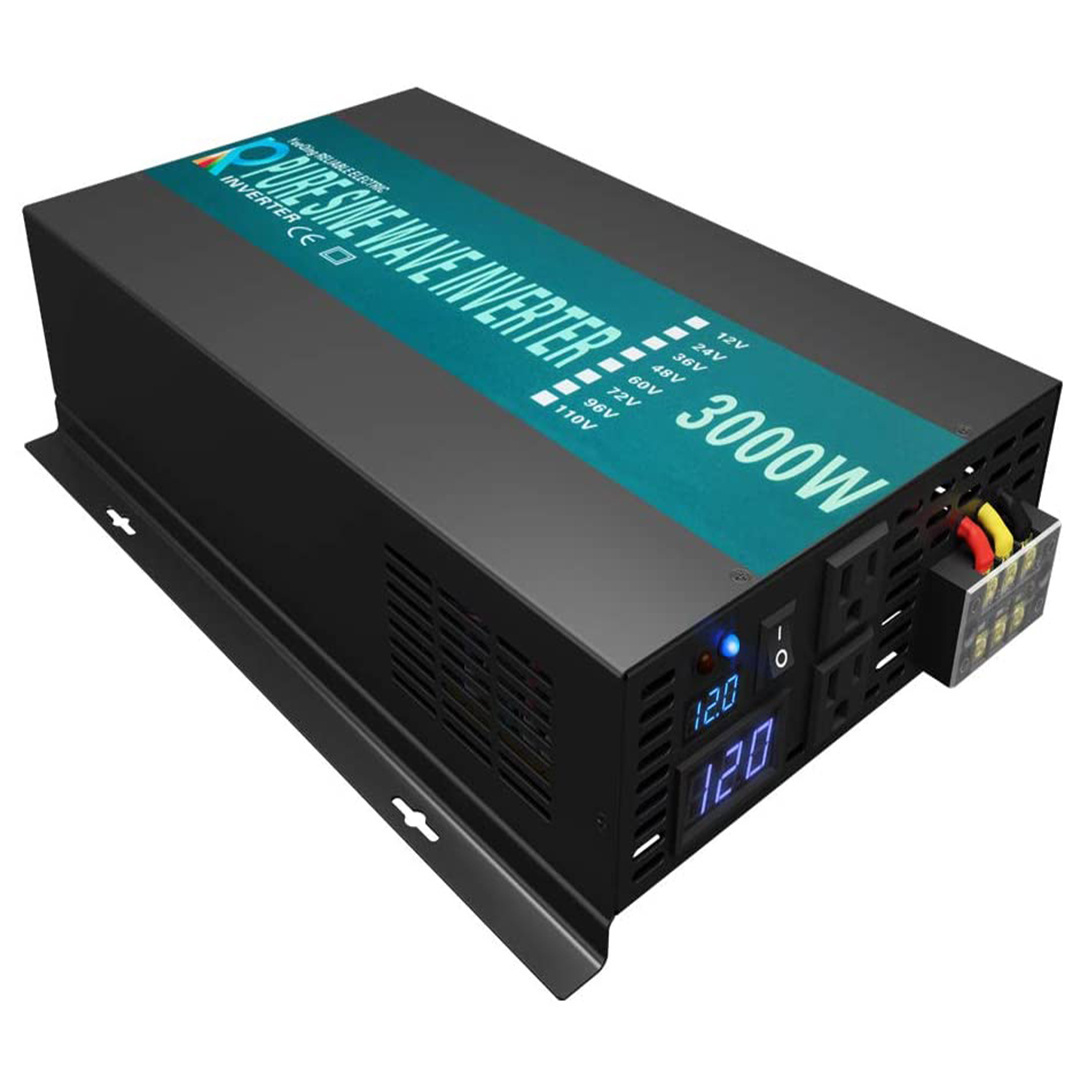

WZRELB 12v 24v 48v Dc To 110v 220v 230v 240v Ac 3000w Home Use Pure Sine Wave Inverter

WZRELB 12v 24v 48v Dc To 110v 220v 230v 240v Ac 3000w Home Use Pure Sine Wave Inverter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $230

≥10 Pieces

US $220

≥100 Pieces

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: RBP-3000-LED

Output Frequency:: 50Hz or 60Hz

Size:: 36*24.6*9.4 cm

Weight:: 5.2KG

Color:: BLACK

Efficiency:: 90%

Protection:: short circuit,overload,reverse,high voltage,low voltage and etc

DC voltage:: 12v/24v/36v/48v/72v/96v/110v

Material:: Iron Shell

AC Regulation:: 3%

Application:: Home Use Or Rv System Use

Warranty:: 12 Months

Feature:: Safe

Peak Power:: 6000w

Certificate:: CE/FCC/RoHS/EMC

Quick Details

Output Current:: Load

Place of Origin:: Zhejiang, China

Brand Name:: WZRELB

Model Number:: RBP-3000-LED

Output Frequency:: 50Hz or 60Hz

Size:: 36*24.6*9.4 cm

Weight:: 5.2KG

Color:: BLACK

Efficiency:: 90%

Protection:: short circuit,overload,reverse,high voltage,low voltage and etc

DC voltage:: 12v/24v/36v/48v/72v/96v/110v

Material:: Iron Shell

AC Regulation:: 3%

Application:: Home Use Or Rv System Use

Warranty:: 12 Months

Feature:: Safe

Peak Power:: 6000w

Certificate:: CE/FCC/RoHS/EMC

Detailed Images

Specification of Off-grid Pure Sine Wave Power Inverters
Model			Description
Input	DC Voltage	12V or 24V or 48V or 72V or 110V
		Voltage Range	10-15VDC or 21-30VDC or 42-60VDC or 62-85VDC or 90-135VDC
		No Load Current Draw	< 1.9A
		Efficiency	> 85%
Output	AC Voltage	100/110/120VAC or 220/230/240 VAC
		Rated Power	3000w Continuous Power
		Surge Power	6000w
		Waveform	Pure Sine Wave
		Frequency	50Hz or 60Hz
		AC Regulation	3%
Protection	Low Voltage Alarm	10DC±0.5V or 20.5DC±1V or 44VDC±1V or 64VDC±1V or 92VDC±1V
		Low Voltage Shut Down	9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 62VDC±1V or 90VDC±1V
		Over Load	Shut Off Output
		Over Voltage Shut Down	15.5V or 30.5V or 61.2V or 85V or 135V
		Over Thermal	Shut Off Output Automatically
		Fuses	Short Circuit
Environment	Working Temperature	Between -10℃ and +50℃
		Working Humidity	20%～90%RH
		Storage Temperature	Between -30℃ and +70℃
Others	Start	Soft Start
		Cooling Ways	Cooling Fan
		Total Harmonic Distortion	THD < 5%

Feartures:

1. Pure Sine Wave, as good as the grid power.

2. Full Power.

3. Core Technology, German Design.

4. Most Advanced Program in Software.

5. Complete Protection Non Defect Rate.

6. Better EMC - Electro Magnetic Compatibility.

7. No Noise for TV or Stereo Sound.

8. SMT- Surface Mounting Technology.

9. All Big Imported Mosfet,Strong Driving Capacity.

10. PCB Thickness :2.00mm

11. LED Display.

12. Compact Design, Less Weight, Full Power.

13. Single Layer Design, Easy to Repair if any.

14. Earth Connection for Both Inverter and PCB.

15. Low No Load Current Draw.

16. Durable quality with 10 years usage,

17. Alarm and LED Indication Light for error warning.New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.

18. Sufficient Heat Radiation

19. More Vent Holes on the plates and the bottom for heat radiation

20. Popular Metal Black Design

21. Big Current Connector,

22. All kinds of socket are available

23. Strong Wiring Row on AC End.

24. Best quality ever in the market.

25. Factory Price.

Build Your Cozy Zone in Vehicles

The compact and solid design makes it possible to take the little power plant in your vehicles, like RV or trailer
everywhere.Build your zone cozy and efficiency.

Never miss the pure sine wave inverter. Never miss the cozy zone in your life.

Enjoy Your Leisure Nature Time

Even though you are in a remote area for camping, electricity is still necessary. The reliable WZRELB power inverterlights up your
leisure nature time.

Lay in the embrace of nature while be shone under the light of modern civilization.

Stay Safe and Sound With Lights On

lt's the era of electricity.But sometimes natural disasters hustleus back to the time of dark (without electricity) harshly.With the reliable WZRELB pure sine wave inverter,the problem goes away easily.

Feel all the beauty of being powered and stay safe and sound in your house with lights on.
