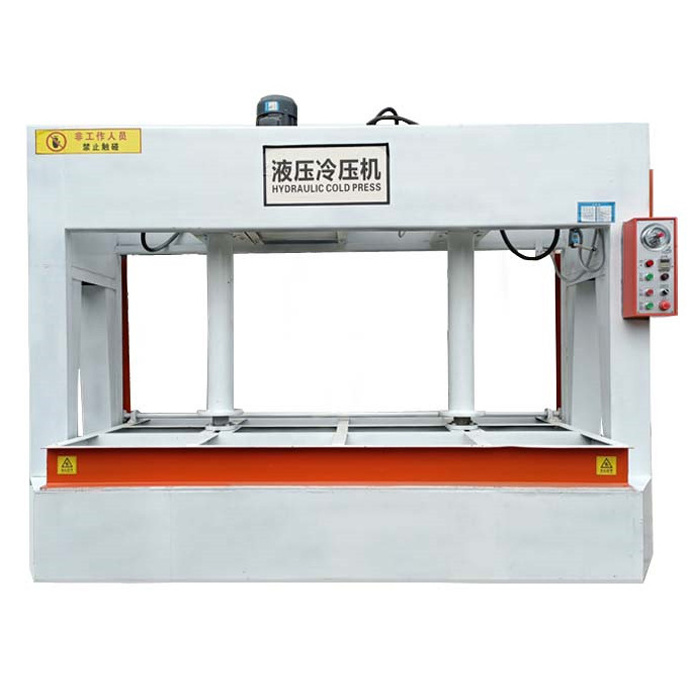

The hydraulic cold press machine is used to press furniture panels, wooden doors, all kinds of plates, and furniture leveling and shaping.It can make the bonding between the plates more firm. The pressure is strong and it does not pull back. Ordinary furniture factories are generally equipped with woodworking cold presses machine. Used for laminating plywood, multi-layer boards, solid wood doors, steel doors, etc.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guandiao cnc
-
Voltage:
-
380/220v
-
Weight (KG):
-
2200 KG
-
Power (kW):
-
4kw
-
Dimension(L*W*H):
-
2900*1300*2000mm
-
Product name:
-
Wood Door Cold Press Machine
-
Model:
-
GD-1325 /GD-1530
-
Press platen dimensions:
-
1250mm*2500mm (customized)
-
Z axis distance:
-
1000mm/1300mm/1500mm
-
Pressure of Hydraulic System:
-
50tons/60tons/80tons
-
Oil Cylinder:
-
2pcs /4pcs
-
Motor power:
-
4kw 5.5kw
-
Diameter of cylinder:
-
100mm
-
Functions:
-
Wood plywood MDF cold press
-
Keyword:
-
Cold press machine, wood press machine
Quick Details
-
Max.Pressure(T):
-
50
-
Working Table Size(mm):
-
1300×2500
-
Pressure:
-
50T
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guandiao cnc
-
Voltage:
-
380/220v
-
Weight (KG):
-
2200 KG
-
Power (kW):
-
4kw
-
Dimension(L*W*H):
-
2900*1300*2000mm
-
Product name:
-
Wood Door Cold Press Machine
-
Model:
-
GD-1325 /GD-1530
-
Press platen dimensions:
-
1250mm*2500mm (customized)
-
Z axis distance:
-
1000mm/1300mm/1500mm
-
Pressure of Hydraulic System:
-
50tons/60tons/80tons
-
Oil Cylinder:
-
2pcs /4pcs
-
Motor power:
-
4kw 5.5kw
-
Diameter of cylinder:
-
100mm
-
Functions:
-
Wood plywood MDF cold press
-
Keyword:
-
Cold press machine, wood press machine
Product Description
Automatic Horizontal Cold Press Hydraulic Pressing Machine Wood Door Laminate 50Tons 100Tons Plywood Cold Press Machine Price
Application of cold press machine
Features of cold press machine
1.Thick steel sheet and tough machine body stable and durable.
2.Precision platen working table,it can make the pressure distribution of the whole table evenly and the flatness of the pressure
maintaining surface for a long time.
3.Easy and convenient control panel easy for operation.
4.Timing control,Set the appropriate time, when the set time is reached, the pressure plate will automatically release and beep to
remind the operator.
5.The pressure can be adjusted according to the production process, convenient and wide applicability.
6.The hydraulic control is faster than the screw control and the production efficiency is higher.
7.The design is reasonable, the operation mode is convenient, easy to learn and easy to use.
8.One year warranty, lifetime telephone guidance service, easy maintenance.
Applications:
1.Thick steel sheet and tough machine body stable and durable.
2.Precision platen working table,it can make the pressure distribution of the whole table evenly and the flatness of the pressure
maintaining surface for a long time.
3.Easy and convenient control panel easy for operation.
4.Timing control,Set the appropriate time, when the set time is reached, the pressure plate will automatically release and beep to
remind the operator.
5.The pressure can be adjusted according to the production process, convenient and wide applicability.
6.The hydraulic control is faster than the screw control and the production efficiency is higher.
7.The design is reasonable, the operation mode is convenient, easy to learn and easy to use.
8.One year warranty, lifetime telephone guidance service, easy maintenance.
Applications:
Product Parametes
Wood door cold press machine parameters
|
Model (cold press)
|
GD-1325
|
GD-1330
|
GD-1350
|
|
Max. pressure: (T)
|
50
|
80
|
100
|
|
Platen size: mm
|
2500*1300
|
3000*1300
|
5000*1300
|
|
Hydraulic cylinder diameter: mm
|
110
|
140
|
140
|
|
Total power: Kw
|
5.5kw
|
5.5kw
|
5.5kw
|
|
Overall dimension: mm
|
3000*1250*2500
|
3500*1300*2500
|
6000*1300*2500
|
|
Net weight: Kg
|
2300
|
2700
|
3500
|
|
Max. working opening: mm
|
1000/1300/1500
|
1000/1300/1500
|
1000/1300/1500
|
Specification
Wood door cold press machine details
Welding of the thickened steel plate field structure makes the pressure distribution even, and the quality of the extruded plate is better. The pressing surface is processed by heavy-duty gantry milling to improve the precision of the pressing plate
.
Samples Display
Woodworking hydraulic cold press series models are used to press the furniture plate, wooden doors, all kinds of sheet metal, as well as furniture , leveling, stereotypes can make the bonding between the plate and solid.
