- Product Details
- {{item.text}}
Quick Details
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yugong
-
Weight:
-
2500 kg, 2500KGS
-
Dimension(L*W*H):
-
3500*1500*2200mm
-

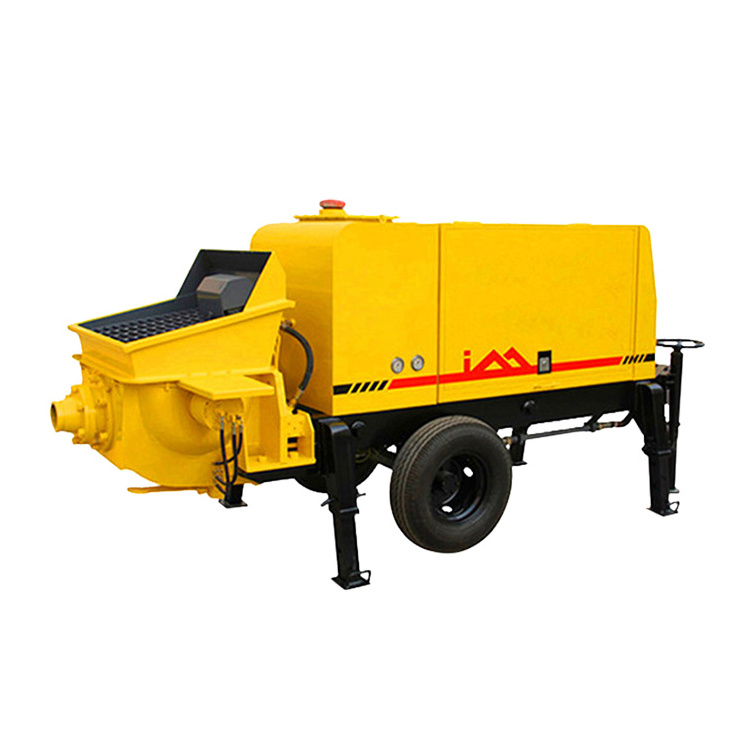

Product name:
-
Trailer Concrete Pumps
-
Model Number:
-
YG30 small concrete pump
-
Concrete pump type:
-
concrete mixer with pump
-
Capacity:
-
30/40 M3/h
-
Max Aggregate Size:
-
30mm
-
Maximum outlet pressure:
-
15/18mpa
-
Vertical conveying distance:
-
20-120m
-
Horizontal convey distance:
-
50-260m
-
Package:
-
Wooden Case
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
1160M
-
Max. horizontal conveying distance:
-
300M
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yugong
-
Weight:
-
2500 kg, 2500KGS
-
Dimension(L*W*H):
-
3500*1500*2200mm
-
Product name:
-
Trailer Concrete Pumps
-
Model Number:
-
YG30 small concrete pump
-
Concrete pump type:
-
concrete mixer with pump
-
Capacity:
-
30/40 M3/h
-
Max Aggregate Size:
-
30mm
-
Maximum outlet pressure:
-
15/18mpa
-
Vertical conveying distance:
-
20-120m
-
Horizontal convey distance:
-
50-260m
-
Package:
-
Wooden Case
Product Description
1.The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting , tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.
1. Using advanced smooth s pipe valve reversing: can meet the transportation of fine stone concrete or commercial fine stone concrete, it is not suitable to block the pipe;
2. Spectacle plate and cutting ring: high hardness and wear-resistant alloy material, longer life;
3. High export pressure, it can meet the transportation requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil cooling adopts air cooling system: the cooling effect is good, the use is simple, and it is not easy to pollute the oil;
5. Adopting stepless manual variable displacement: it can meet the different requirements of many users for the discharge speed;
6. Advanced wireless remote control function: Improve remote control distance, facilitate remote control operation, and make products more humanized;
7. Highly wear-resistant concrete cylinder: guarantees and increases the service life of the concrete pump and reduces
the maintenance cost of the user;
the maintenance cost of the user;
8. The main cylinder of the new process chrome-plated inner hole: thus avoiding the problem of damage to the main cylinder due to dirty oil;
9. Highly wear-resistant glasses plate and cutting ring: the use of large-area carbide inserts is the latest technology to improve the use of glasses;
Product Paramenters
|
Model
|
YG20
|
YG30
|
YG40
|
|
Motor power
|
22KW
|
37KW
|
45KW
|
|
Maximum outlet pressure
|
15/18mpa
|
15/18mpa
|
23mpa
|
|
Maximum theoretical throughput
|
12m³/h
|
15-18m³/h
|
20-22m³/h
|
|
Maximum particle size of aggregate
|
20mm
|
20mm
|
20mm
|
|
Horizontal conveying distance
|
40m
|
160m
|
260m
|
|
Vertical conveying distance
|
80m
|
80m
|
120m
|
|
Weight
|
1600kg
|
2200kg
|
2400kg
|
|
Dimensions
|
3400x1200x1600mm
|
3800x1500x1600mm
|
4000x1500x1550mm
|
