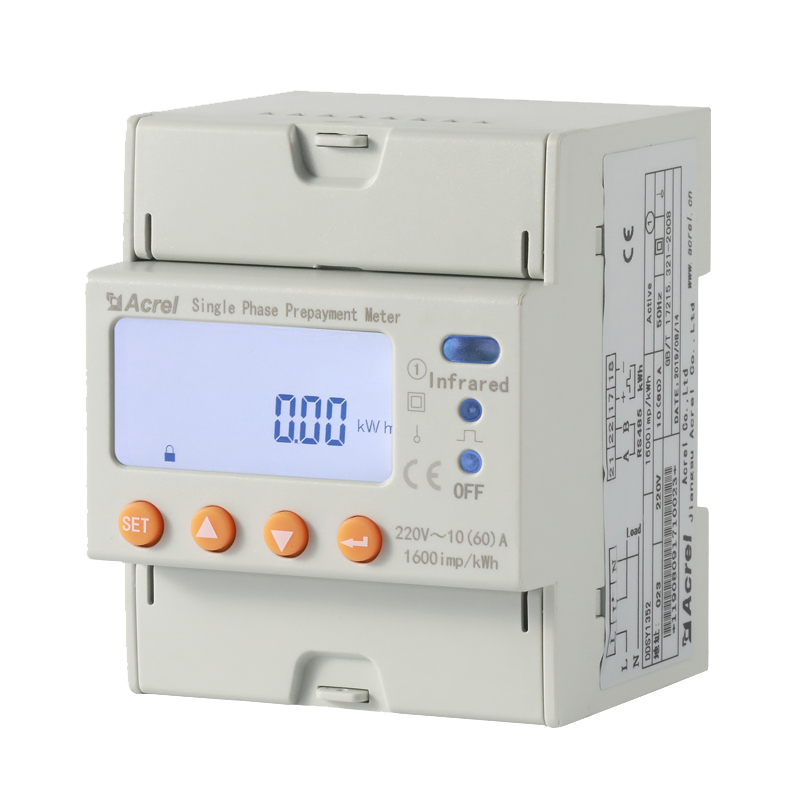

Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-
ADL100-EYRF
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
72*88*70mm
-
Communication:
-
RS485 Modbus RTU
-
Rated voltage:
-
AC 220-240V
-
Rated current:
-
10(60)A
-
Display:
-
LCD Digital Display
-
Frequency:
-
45~65HZ
-
Installation:
-
35 mm DIN Rail
-
Measure:
-
U,I,P,Q,S,PF,Hz,kWh, kvarh
-
Standard:
-
IEC62052-11/IEC62053-21
-
Type:
-
Single Phase Energy Meter
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-99999kWH
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel
-
Model Number:
-
ADL100-EYRF
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
72*88*70mm
-
Communication:
-
RS485 Modbus RTU
-
Rated voltage:
-
AC 220-240V
-
Rated current:
-
10(60)A
-
Display:
-
LCD Digital Display
-
Frequency:
-
45~65HZ
-
Installation:
-
35 mm DIN Rail
-
Measure:
-
U,I,P,Q,S,PF,Hz,kWh, kvarh
-
Standard:
-
IEC62052-11/IEC62053-21
-
Type:
-
Single Phase Energy Meter
Parameter
|
Technical parameters
|
|
ADL100-EY
|
|
|
Voltage
|
Nominal voltage
|
220V
|
|
|
|
Nominal frequency
|
50/60Hz
|
|
|
|
Consumption
|
＜4VA(Each phase)
|
|
|
Current
|
Maximum current
|
60A
|
|
|
|
Starting current
|
Connect directly:0.04A,connect via CT:0.002A
|
|
|
|
Consumption
|
＜4VA(Maximum current)
|
|
|
Measurement
|
Accuracy
|
Class 1
|
|
|
performance
|
|
|
|
|
Clock
|
Accuracy
|
Error ≤0.5
|
|
|
Active pulse
|
Width
|
80ms±20ms
|
|
|
|
Constant
|
1600imp/kWh
|
|
|
Communication
|
Interface
|
RS485
|
|
|
|
Protocol
|
MODBUS-RTU
|
|
|
Temperature range
|
Operating
|
-25℃ ～55℃
|
|
|
|
Storage
|
-40℃ ～70℃
|
|
|
Humidity
|
|
≤95%（No condensation）
|
|
|
Altitude
|
|
≤2000m
|
|
