Quick Details
-
Size:
-
18.5*65.1(mm) Max
-
Max charge voltage:
-
3.65V
-
Discharge cut off voltage:
-
2.0V
-
Max discharge current:
-
3C
-
Max charge current:
-
1500mAh
-
Charging Temperature:
-
0~45℃
-
Discharging Temperature:
-
-20 ~ 60℃
-
Warranty:
-
12 Months
-
Cycle life:
-
2000 cycles
-
Application:
-
Solar Energy Storage Systems
Quick Details
-
Brand Name:
-
BAKTH / Neutral / OEM
-
Model Number:
-
18650FE
-
Place of Origin:
-
Guangdong, China
-
Size:
-
18.5*65.1(mm) Max
-
Max charge voltage:
-
3.65V
-
Discharge cut off voltage:
-
2.0V
-
Max discharge current:
-
3C
-
Max charge current:
-
1500mAh
-
Charging Temperature:
-
0~45℃
-
Discharging Temperature:
-
-20 ~ 60℃
-
Warranty:
-
12 Months
-
Cycle life:
-
2000 cycles
-
Application:
-
Solar Energy Storage Systems

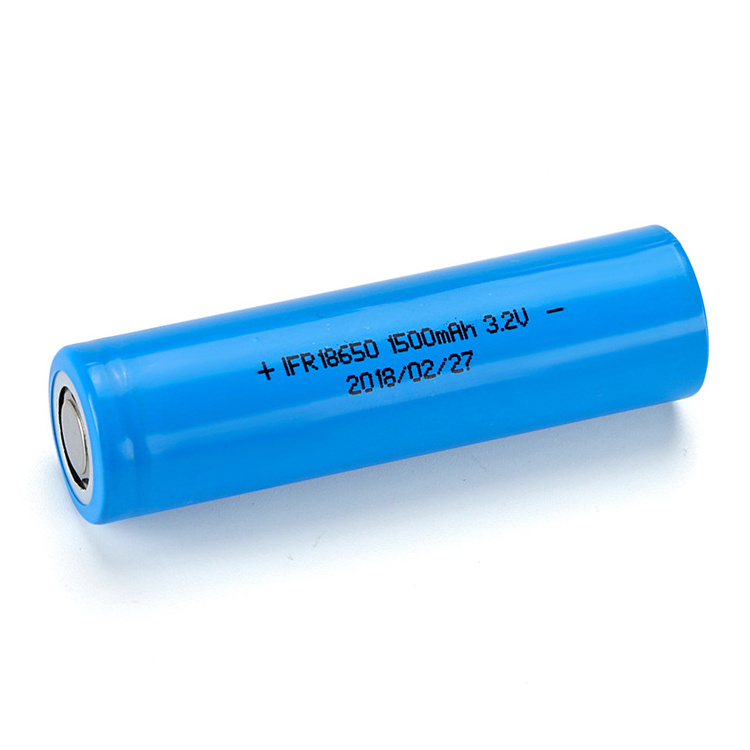

Lithium Ion Battery 18650 Round Lifepo4 Battery 3.2V 15000 mAh
| Product features |
production by automatic production line with high quality materials |
Charging Temperature | 0~45℃ |
| Nominal capacity | 1500mAh (0.2C) | Discharging Temperature | -20 ~ 60℃ |
| Nominal voltage | 3.2V | Storage temperature |
≤1 month: 45~60℃
≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Max charge voltage | 3.65V | Humidity Range | 0~60% (non-condensing) |
| Discharge cut off voltage | 2.0V | Dimension | 18.5*65.1 (mm)Max |
| Standard charge current | 0.2C | Weight | about 35g |
| Max charge current | 1500mAh | Brand | BAKTH / Neutral / OEM |
| Standard dischrge current | 0.2C | Warranty | 12 Months |
| Max dischrge current | 3C | PCB/PCM | none |
| Charging mode | CC/CV | Connector | none |
| Internal resistance | ≤40 | Battery type | LiFEPO4 |
| Cycle life | 2000 cycles | Rechargeable or not | Yes |
| Model | Nominal capacity | Nominal voltage | Max discharge current | Cycle life | Dimension |
Certificate (Part) |
Battery type |
|
High energy |
3350mAh |
3.6V | 30A | 600cycles | 65.0*18 (mm)Max |
UN38.3 UL1642 IEC62133
|
18650 cell |
|
High energy |
3050mAh |
3.6V | 2C | 500cycles | 65.0*18 (mm)Max | ||
|
High energy |
3000mAh |
3.6V |
3C |
1000cycles | 65.0*18 (mm)Max | ||
|
stability |
2500mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | ||
|
High rate |
2500mAh |
3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
|
High rate |
2600mAh |
3.6V | 4C | 500cycles | 65.0*18 (mm)Max | ||
|
High rate |
2150mAh |
3.6V |
5C |
1000cycles | 65.0*18 (mm)Max | ||
|
High energy |
4800mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
|
Stability |
3300mAh | 3.2V | 5C | 2000cycles | 26*65.5 (mm)Max | LiFEPO4 | |
|
Stability |
3600mAh |
3.2V | 3C | 20 00cycles | 26*65.5 (mm)Max | ||
|
High rate |
2200mAh | 3.2V | 15C | 20 00cycles | 26*65.5 (mm)Max |
