Quick Details
-
Voltage:
-
380V 50HZ
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
10 kW
-
Extruder Motor Power(kW):
-
10 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
400 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.6 m³/min
-
Die Head Heating Power(kW):
-
10 kW
-
Accumulator Capacity(L):
-
100 L
-
Power (kW):
-
30
-
Weight (T):
-
2
-
Material:
-
PP PE HDPE
-
Local Service Location:
-
no
-
MACHINE SIZE:
-
3000*1750*2100mm
-
Machine:
-
Blow Molding Equipment
-
Packing:
-
Wooden Box
-
Delivery Time:
-
30~40 Working Days
-
Certification:
-
CE Certificated
-
More application:
-
Popsicle
-
Processing Type:
-
Extruding Machine
-
Advantage:
-
Simple Operation
Quick Details
-
Clamping Force (kN):
-
1500
-
Output (kg/h):
-
150 kg/h
-
Place of Origin:
-
China
-
Voltage:
-
380V 50HZ
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
10 kW
-
Extruder Motor Power(kW):
-
10 kW
-
Mold Platen Size(Width)(mm):
-
300 mm
-
Mold Platen Size(Height)(mm):
-
400 mm
-
Air Pressure(MPa):
-
0.6 MPa
-
Air Comsumption(m³/min):
-
0.6 m³/min
-
Die Head Heating Power(kW):
-
10 kW
-
Accumulator Capacity(L):
-
100 L
-
Power (kW):
-
30
-
Weight (T):
-
2
-
Material:
-
PP PE HDPE
-
Local Service Location:
-
no
-
MACHINE SIZE:
-
3000*1750*2100mm
-
Machine:
-
Blow Molding Equipment
-
Packing:
-
Wooden Box
-
Delivery Time:
-
30~40 Working Days
-
Certification:
-
CE Certificated
-
More application:
-
Popsicle
-
Processing Type:
-
Extruding Machine
-
Advantage:
-
Simple Operation
Product Overview

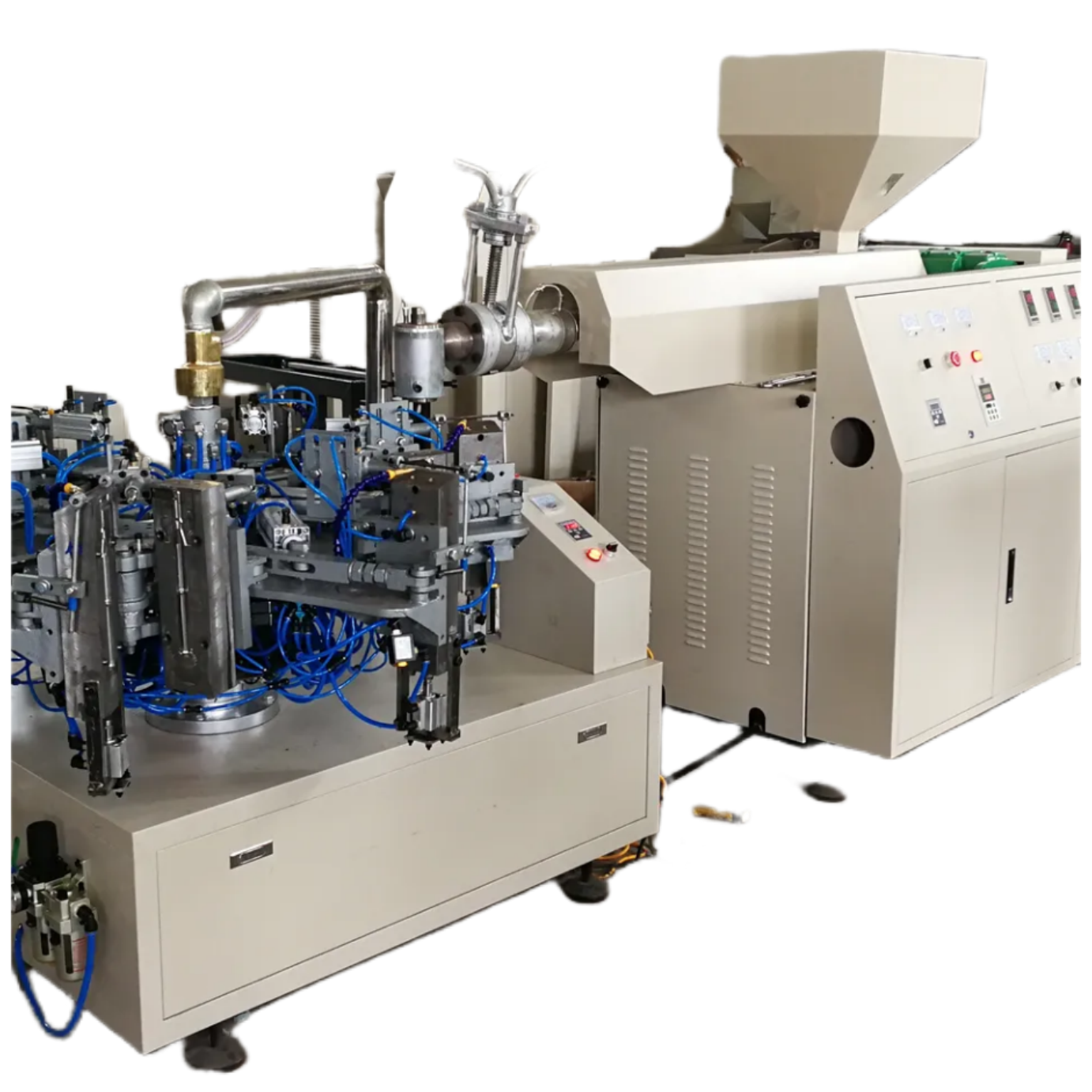

ZY-3 automatic rotary blowing machine Extruder part:
(1) The reducer adopts Jiangsu Guomao full hard gear surface reducer products.
① Special reducer for ZLYJ series plastic extruder is selected. ② Deceleration ratio is 16:1
(2) Barrel and screw (Products of Zhejiang Zhoushan Bemet Co., LTD.)
Screw diameter: Ø55mm, length-diameter ratio: 25:1, compression ratio: 2.5:1
② Barrel and screw material are 38 chromium molybdenum aluminum: 38CrMoAl
③ Cylinder and screw surface nitriding treatment, nitriding depth: 0.5-0.7mm, tempered hardness: HB260°-280°
(3) Main motor: choose products of Shandong Evergrande Company
① Motor power: P=7.5KW TYPE: Y type ② Power supply: AC380V 50HZ (three-phase four-wire)
(4) Electrical control
① The main motor adopts frequency conversion governor for speed regulation, and the frequency conversion governor adopts the products of Zhejiang Ziri Inverter Co., LTD.
② The body temperature control electrical parts are selected from "Shanghai Yatai Electronics Co., LTD.", the temperature control accuracy is ±0.5℃, and the external size of the temperature control meter is 96mm×48mm.
③ The sensor and proximity switch are made of Omron products from Japan.
2. Six-station rotary machine
(1), rotary motor: choose Shandong Weihai Shunyi Company products, motor power is 0.75Kw, model :Y80M2-4.
(2) Reducer: Hangzhou "Jie brand transmission" company products, model :WPO.
(3), pneumatic components (cylinders, valves) are selected from "Zhejiang Dongte pneumatic components Group" products.
PRODUCT SPECIFICATIONS
|
Type specification
|
|
ZY-3
|
|
|
Screw diameter
|
mm
|
55
|
|
|
Screw length-diameter ratio
|
|
25：1
|
|
|
Single blowing machine speed
|
Per minute
(Popsicle) |
≥60
|
|
|
Maximum extrusion
|
kg/h
|
25
|
|
|
Use power
|
Three phase
|
380V 50Hz
|
|
|
Main motor power
|
KW
|
7.5
|
|
|
Overall power
|
KW
|
17.5
|
|
|
Rated power
|
KW
|
11
|
|
|
Overall dimension
|
mm（length × width × height）
|
3300×1200×1900
|
|
|
Machine weight
|
kg
|
1500
|
|
PRODUCT CONFIGURATION
BOTTLE MACHINE
MACHINE SHELL
PLC CONTROL
SALES AND SERVICE NETWORK
FAQ
Q1：*****
A1：*****
Packing and transportation
The export of the machine is protected by special export wooden cases to prevent damage in the sea
