Quick Details
-
Voltage:
-
220v/380v
-
Weight:
-
1042 KG
-
Dimension(L*W*H):
-
4435*2365*7485mm
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
lng ambient air vaporizer
-
Vaporizer Construction:
-
All aluminum or as required
-
Frame Construction:
-
Aluminum alloy or as required
-
Capacity:
-
10 to 70,000 Nm3/Hour & higher on request
-
Pressure Range:
-
1 bar(g) to 320 bar(g)
-
Fluid Type:
-
LNG/LAr/LCO2/LO2/LN2/LPG
-
Types of Vaporization:
-
Skids with Flow & Pressure Regulation
-
Application:
-
General Industrial Fields
-
Color:
-
as material
-
After-sales Service Provided:
-
online
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHONG NENG ZHI HUA
-
Production Rate:
-
95%
-
Voltage:
-
220v/380v
-
Weight:
-
1042 KG
-
Dimension(L*W*H):
-
4435*2365*7485mm
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
lng ambient air vaporizer
-
Vaporizer Construction:
-
All aluminum or as required
-
Frame Construction:
-
Aluminum alloy or as required
-
Capacity:
-
10 to 70,000 Nm3/Hour & higher on request
-
Pressure Range:
-
1 bar(g) to 320 bar(g)
-
Fluid Type:
-
LNG/LAr/LCO2/LO2/LN2/LPG
-
Types of Vaporization:
-
Skids with Flow & Pressure Regulation
-
Application:
-
General Industrial Fields
-
Color:
-
as material
-
After-sales Service Provided:
-
online
Product Description

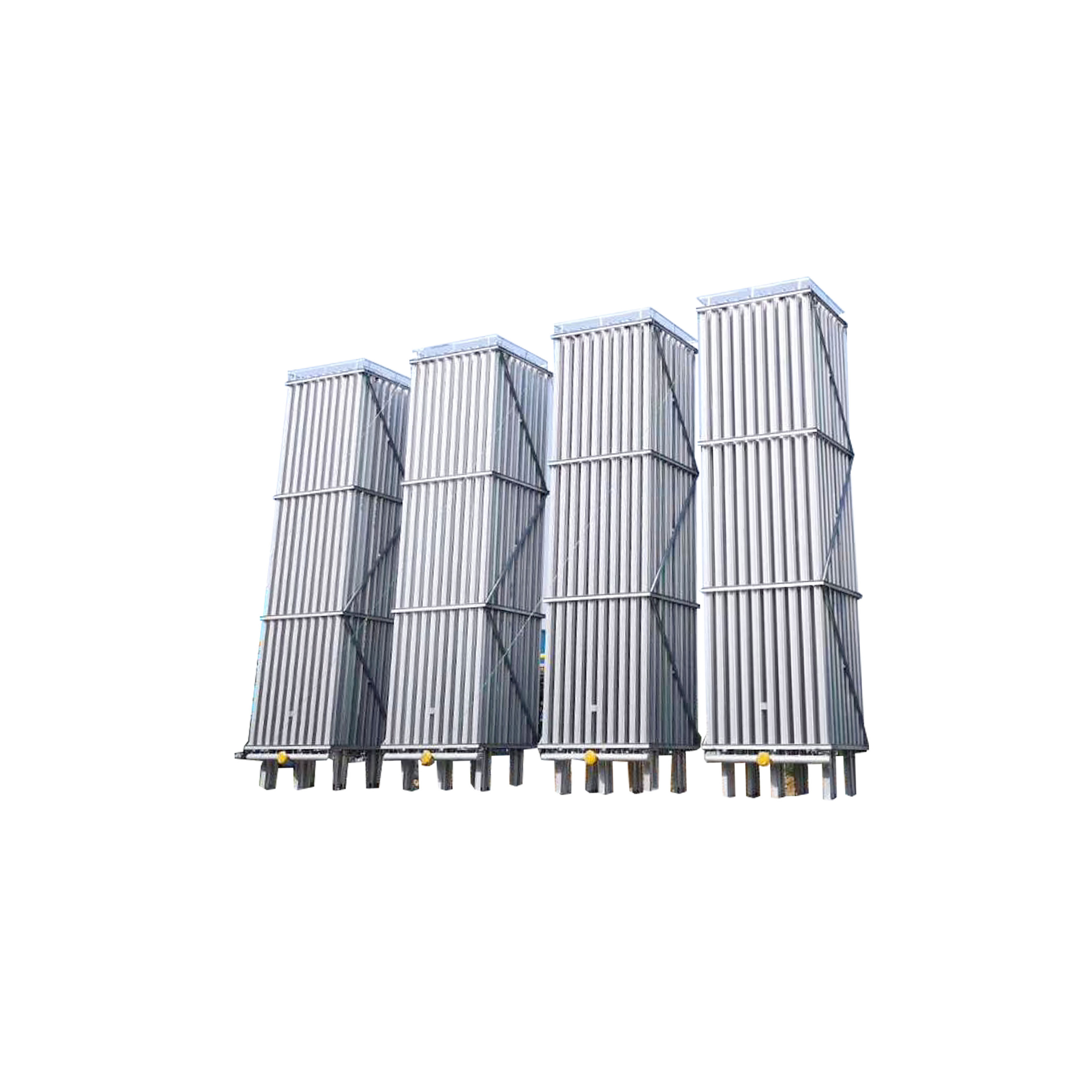

LNG vaporizer
1．working principle
After depressurized by the pressure regulator on vaporizer, LNG enters the heat exchanger which is composed of aluminum alloy longitudinal fin tube bundle, absorbs the heat from the ambient air and vaporizes, reorganizes in the separator and feeds into the pipe network.
As the heat absorbed by LNG all comes from the ambient air, the vaporizer should be set in an unobtrusive outdoor environment.
Local frosting is a normal phenomenon in the working process of air ambient vaporizer. It’s no need to use external force to remove so as to avoid damage to the heat pipe beam. Usually continuous gas industrial users could alternate with a spare vaporizer to work in order to natural gasification.
When LNG accumulation and rises to the alarm height due to excessive use of gas, the remote level alarm will issue an audible and visual alarm, meantime the alloy float valve in the gas-liquid separator will automatically close to prevent excessive liquid. After troubleshooting, open the reset valve, the equipment can work normally.
LNG passes through the stainless-steel tube immersed in warm water, absorbs the heat of warm water, vaporizes and overheats, and is removed and reorganized by the gas-liquid separator before entering the pipe network.
The set pressure of the safety valve on the vaporizer is 0.6Mpa, and the vaporizer is equipped with on-site display instrument of LNG inlet and outlet pressure .
2．technical characters：
The main body is made of low temperature aluminum alloy argon arc welding, and the surface is treated with anti-corrosion
The anti-fluid device is safe and reliable, and can be equipped with a remote warning system
Series inlet pressure reducing valve to provide double protection of output pressure
The safety release device provides overpressure protection in the heat exchanger
There will be no reliquefy during transportation
All key components in the equipment are made of quality products
According to the characteristics of foreign LNG, the gasification and superheating section are integrated, and the heat exchange area is increased, so as to be more suitable for foreign LNG
By absorbing natural heat in the environment to complete gasification, usually does not require any other energy, operation and maintenance which costs are greatly reduced without polluting the environment
Wide wing longitudinal low-temperature aluminum alloy finned tube
Beam structure
All stainless steel instrument box
Explosion-proof air change system is optional
Where conditions permit, it can be installed outdoors, greatly reducing the investment in infrastructure, heating, power supply, and fire fighting projects
Specification
|
Types of Vaporization
|
Cryogenic Vaporization Skids with Flow & Pressure Regulation & Safety Components
|
|
Fluid Type
|
LNG
|
|
Capacity
|
10 to 7,000 Nm3/Hour
|
|
Pressure Range
|
1 bar(g) to 320 bar(g) as standard & higher on reques
|
|
Vaporizer Construction
|
All aluminium or as required
|
|
Frame Construction
|
Aluminium alloy
|
Packing & Delivery
1.Standard export packaging,Wooden case
2.Bare load into container
