HY manufacture supply High Quality Clear Glass Quartz Optical light guide Clear Quartz Rod Glass

HY manufacture supply High Quality Clear Glass Quartz Optical light guide Clear Quartz Rod Glass

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1.5

≥100 Pieces

US $0.9

≥500 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: huoyun

Model Number:: clear quartz rod

Silicon Dioxide Component:: 99.99%

Transmittance:: 93%

Ovality:: 1%

Material:: 99.99% Pure Quartz

Density:: 2.2g/cm3

Color:: Clear Transparent

Surface:: Smooth

Work Temperature:: 1100℃

Soften point:: 1730℃

Feature:: Fire Resistant

Category:: fused silica

Package:: Carton+Bubble Film+Woodem Cases

Size:: Client's Request

Quick Details

Type:: Clear Quartz Rod

Application:: semi/optical/chemical

Outside Diameter:: 8-100mm

Place of Origin:: Jiangsu, China

Brand Name:: huoyun

Model Number:: clear quartz rod

Silicon Dioxide Component:: 99.99%

Transmittance:: 93%

Ovality:: 1%

Material:: 99.99% Pure Quartz

Density:: 2.2g/cm3

Color:: Clear Transparent

Surface:: Smooth

Work Temperature:: 1100℃

Soften point:: 1730℃

Feature:: Fire Resistant

Category:: fused silica

Package:: Carton+Bubble Film+Woodem Cases

Size:: Client's Request

Products Description

Product Details:

1.SiO2> 99.99% ,high purity quartz rod.

2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.

3.Excellent visual and chemical performance.

4. without surface coating and infectant.

5. Health care and environmental protection.

6. Any dimension can be made.

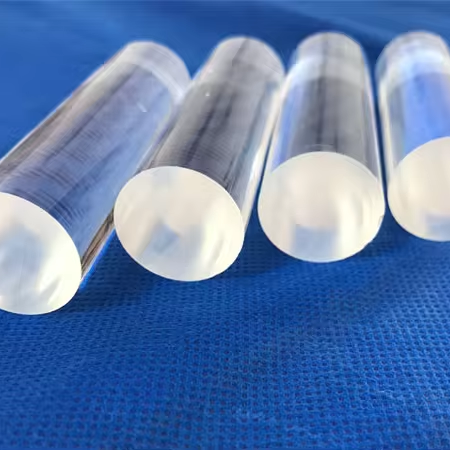

Transparent quartz rod is made of high-purity quartz sand. It has high purity, strong heat resistance and corrosion resistance.

In scientific research, due to its excellent optical properties and chemical stability, quartz rods are often used in optical experiments, chemical experiments and other fields; in optical instrument manufacturing, quartz rods are used in optical fiber communications, laser devices, etc., which can achieve high precision and Stable light transmission. In the field of medical device manufacturing, quartz rods are often used in surgical instruments, medical probes, etc. due to their biocompatibility and corrosion resistance.

Specification

Sio2	99.99%
Density	2.2g/cm³
Hardness	570KHN100
Specific heat(20℃)	660J/kg℃
Thermal conductivity (20℃)	1.4W/m℃
Working temperature	1100℃
Annealing point	1215℃
Softening point	1730℃
Ligth Transmittance	＞92％（1000 times than ordinary glass）
Bulk Modulus	3.7x1010 Pa (5.3x106 psi)
Rigidity Modulus	3.1x1010 Pa (4.5x106 psi)

Packing and delivery

Packing: 1. Inner layer: bubble paper. Plastic air cushion film. Foam material 2. Outer layer: Transport cartons, wooden cases or according to customer's requirements. Delivery: It depends on your requirements.

Here is our recommendation: For small orders, we recommend choosing DHL, FedEx, UPS or TNT as they are fast and secure. If the order quantity is large, we recommend shipping by sea as it is more cost-effective. Of course, air transport is also supported

Certifications

Company Introduction

Production details

company instruction

Lianyungang Huoyun Quartz company is one of the leading high quality quartz glass manufacturer and supplier in China.

Factory’s main products are: quartz tube;quartz plate; quartz rod; quartz glass flask; quartz glass beaker; quartz glass condenser; quartz glass crucible and other customized quartz products. The factory has advanced equipment, strong technical force, complete measurement and detection means, complete quality assurance system, to provide you with high-quality, high-standard products .We always try our best to meet the various needs of users.

Huoyun Quartz has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic.Providing high quality products and services to our customers is one of our most important tasks.
