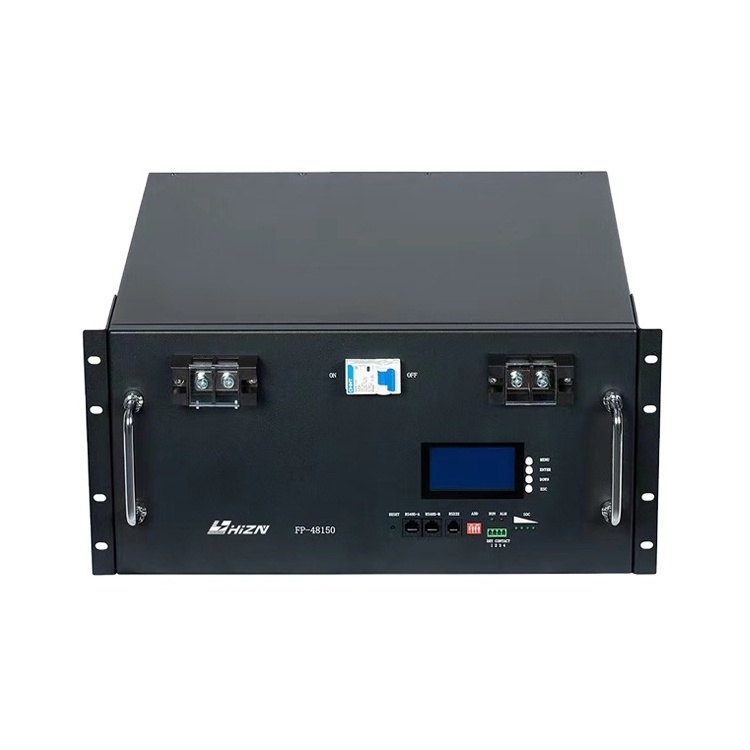

Solar Energy Storage Battery 48V 5Kwh 7Kwh 10Kwh 100Ah 150ah 200Ah LiFePO4 Home Power System Lifepo4 Lithium ion Battery Pack

Solar Energy Storage Battery 48V 5Kwh 7Kwh 10Kwh 100Ah 150ah 200Ah LiFePO4 Home Power System Lifepo4 Lithium ion Battery Pack

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1410

≥50 Pieces

US $1340

≥100 Pieces

US $1280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HIZN/OEM

Model Number:: 48V 150AH

Place of Origin:: China

Weight:: 67kg

The charging ratio:: Standard

The discharge rate:: Standard

Combination Method:: 15S1P

Features:: High Efficiency

Nominal Capacity:: 150ah/7200Wh

Nominal Voltage:: 51.2V

Color:: Balck

Temperature range:: -20~60℃

Material:: LiFePO 4

Display:: LCD Display

Product Name:: 48V 100Ah 150ah 200Ah LiFePO4 Lifepo4 Lithium ion Battery Pack

Protection:: Built-in Smart BMS

Quick Details

Storage Type:: Cool and dry

Anode Material:: LFP

Application:: Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Telecom Base Station, Backup Power, Medical Equipment

Brand Name:: HIZN/OEM

Model Number:: 48V 150AH

Place of Origin:: China

Weight:: 67kg

The charging ratio:: Standard

The discharge rate:: Standard

Combination Method:: 15S1P

Features:: High Efficiency

Nominal Capacity:: 150ah/7200Wh

Nominal Voltage:: 51.2V

Color:: Balck

Temperature range:: -20~60℃

Material:: LiFePO 4

Display:: LCD Display

Product Name:: 48V 100Ah 150ah 200Ah LiFePO4 Lifepo4 Lithium ion Battery Pack

Protection:: Built-in Smart BMS

Product Description

Specification
Electrical Characteristics	Nominal Voltage	51.2V
		Nominal Capacity	150Ah
		Nominal Energy	7200Wh
		Combinatior Method	15S1P
		Cycle Life	≥3500 cycles @80%DOD
		Months Self Discharge	3%/Month
		Efficiency of Charge	≥97%
		Efficiency of Discharge	≥98%
Standard Charge	Recommended Charging Voltage	54V
		Recommended Charging Current	30A
		Max. Charging Voltage	54.75V
		Max. Charging Current	100A
Standard Discharge	Recommended Discharging Current	75A
		Max. Pulse Current	150A
		Discharge Cut-off Voltage	40.0V
Environmental	Charge Temperature	0℃~45℃
		Discharge Temperature	-20℃~60℃
		Storage Temperature	0C~40℃
Other	IF Class	IP30
		Plastic Case	Metal
		Dimensions(in./mm.)	442222460mm
		Weight(lbs./kg.)	67kg
		Others(optional)	Anti-theft function, LCD display

Solar Energy Storage Battery 48V 5Kwh 7Kwh 10Kwh 100Ah 150ah 200Ah LiFePO4 Home Power System Lifepo4 Lithium ion Battery Pack

Longer Cycle Life: Offers up to 10 times longer cycle life than lead acid battery, reduce replacement cost and total cost.

Lighter Weight: About 40% of the weight of a comparable lead acid battery.

Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

Wider Temperature Range: -20~60℃

Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overchaeging or short circuit situation.

Certifications

Company Introduction

Huizhong Power was set up at Lanzhou in 2001. Then the company's production base moved to Wuxi, Jiangsu. Meanwhile, Wuxi Huizhong Power Co., Ltd was established. Today, Huizhong Power has grown into one of the most professional storage battery manufacturers in China.

♦Huizhong specializes in lead-acid (AGM/GEL/OPzV/OPzS)battery, deep cycle battery, Ni-cd battery, lithium battery, provide the entire solar system configuration installation scheme for customers. ♦All of our products meet CE ISO IEC standards. And we also passed the factory audited of BSCI by Intertek. ♦Huizhong products are exported to Latin America, South America, Africa, Australia, Southeast Asia, dozens of countries around the world and regions, and have been recognized by the majority of customers. ♦Help you is to help ourselves. Wuxi Huizhong Power looks forward to working with you to win tomorrow!
