Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor
Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor

Programmable Thermocouple K J PT100 to 4-20mA Converter TC RTD Input 4-20mA Output Head-mounted Temperature sensor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $7
≥100 Pieces
US $6.8
≥300 Pieces
US $6.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

input signal:
Thermal resistance (RTD), thermocouple (TC)
Cold junction compensation range:
-20~60℃
Compensation accuracy:
±1℃
output signal:
4~20mA
Load Resistance:
RL≤(Ue-12)/0.021
Supply voltage:
DC12~40V
Temperature drift:
0.02%FS/℃
Response time:
1s reaches 90% of final value
Working temperature:
-40~80℃
Installation area:
b-type top box mounting

Quick Details

Place of Origin:
Shaanxi, China
Brand Name:
XingYuTeng
Model Number:
BS-30
input signal:
Thermal resistance (RTD), thermocouple (TC)
Cold junction compensation range:
-20~60℃
Compensation accuracy:
±1℃
output signal:
4~20mA
Load Resistance:
RL≤(Ue-12)/0.021
Supply voltage:
DC12~40V
Temperature drift:
0.02%FS/℃
Response time:
1s reaches 90% of final value
Working temperature:
-40~80℃
Installation area:
b-type top box mounting
Product Overview

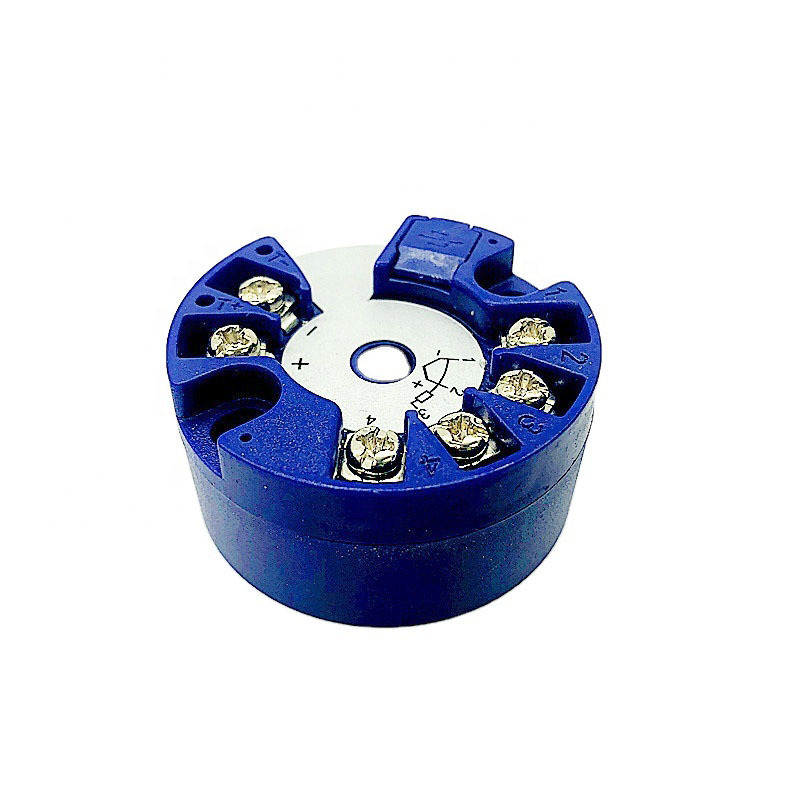

The intelligent temperature transmitter (round card) is used for the input of thermal resistance (RTD) and thermocouple (TC) signals and the output of 2-wire 4-20ma analog system. It is installed inside the sensor (Form B).
output signal: 4～20mA

Supply voltage: DC12～40V

Temperature drift: 0.02%FS/℃

Working temperature: -40～80℃

Stored temperature: -40～100℃

Shock resistance :4g/2～150Hz

installation angle :Unlimited

Installation area :b-type top box mounting
PRODUCT SPECIFICATIONS
Model
Types
Measuring
Minimum
Measuring
Conversion
Note



RTD
Pt100
-200.0～850.0℃
10℃
≤100℃
0.2%
1. The above
accuracy data
is obtained by
testing under
the
environment
temperature
of 20 ℃
± 2 ℃.
2. The output
accuracy "%"
is relative to
the set range.
3.The cold
junction
compensation
error needs to
be added
when
measuring the
thermocouple.

RTD
Pt100
-200.0～850.0℃
10℃
>100℃
0.1%
Cu50
-50.0～150.0℃
10℃
≤100℃
0.2%
>100℃
0.1%













TC
B
400～1800℃
500℃
≤300℃
0.2%
>300℃
0.1%
E
-100～1000℃
50℃
≤300℃
0.2%
>300℃
0.1%
J
-100～1200℃
50℃
≤300℃
0.2%
>300℃
0.1%
K
-180～1372℃
50℃
≤300℃
0.2%
>300℃
0.1%
N
-180～1300℃
50℃
≤500℃
0.2%
>500℃
0.1%
R
-50～1768℃
500℃
≤500℃
0.2%
>500℃
0.1%
S
-50～1768℃
500℃
≤500℃
0.2%
>500℃
0.1%
T
-200～400℃
50℃
≤500℃
0.2%
>500℃
0.1%
Wre3-25
0～2315℃
500℃
≤500℃
0.2%
>500℃
0.1%
Wre5-26
0～2310℃
500℃
≤500℃
0.2%
>500℃
0.1%

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.
With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.
We sincerely hope that we can be one of your dependable and trust-able cooperators!
Successful Project


FAQ
1. How long will you reply me?
Normally in 1 hours, longest time wouldn't over 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium,
electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
