Quick Details
-
Brand Name:
-
SADE
-
Model Number:
-
SD-SL
-
Weight (KG):
-
10000
-
Power (kW):
-
30
-
Production:
-
Hexagonal wire netting machine
-
Retad voltage:
-
3P,380V/50HZ as required
-
Control system:
-
PLC programmable
-
Wire diameter:
-
1.8-4.2mm
-
Mesh size:
-
80x100mm
-
Net width:
-
3300/4300/5300mm
-
Motor power:
-
30kw
-
Dimension:
-
7200*1400*2400
-
Weight:
-
15T
Quick Details
-
Wire Diameter (mm):
-
1.6 - 4.2 mm
-
Production Capacity:
-
165-230m/Hour
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SADE
-
Model Number:
-
SD-SL
-
Weight (KG):
-
10000
-
Power (kW):
-
30
-
Production:
-
Hexagonal wire netting machine
-
Retad voltage:
-
3P,380V/50HZ as required
-
Control system:
-
PLC programmable
-
Wire diameter:
-
1.8-4.2mm
-
Mesh size:
-
80x100mm
-
Net width:
-
3300/4300/5300mm
-
Motor power:
-
30kw
-
Dimension:
-
7200*1400*2400
-
Weight:
-
15T
|
|
|
| Wire spiral coiling machine(6 spiral) | Wire straighten device | Mesh collector |
|
||
| Mesh leveling machine | Gabion mesh packing machine | Wire wrapping machine |

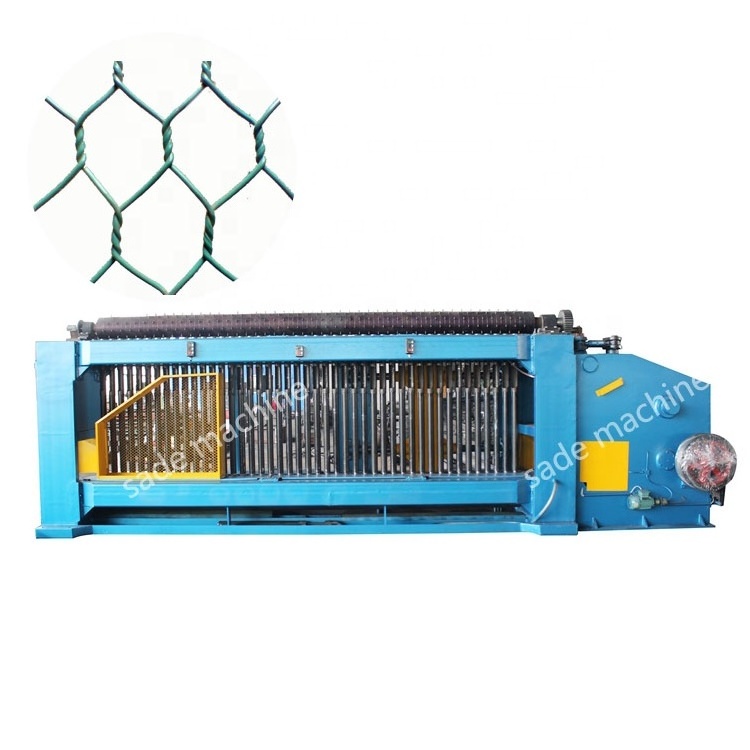

Machine description
Gabion Mesh Machine is also called heavy-duty hexagonal wire mesh machine. It adopt PLC touch screen frequency control, which has the function of frequency control of motor speed according to different of wire diameter, has buffer function when apeed increase or decress in very short time, can count output every day or every year, can save about 30% energy.
| Model | Mesh Size | Max. Width | Wire Diameter | Twisting Number |
Main drive shaft speed |
Motor Capacity | Theoretical Speed |
| / | mm | mm | mm | / | / | / | m/h |
| SDWL23-60-2 | 60*80 | 2300 | 1.6-3.0 | 3 | 25 | 11 | 165 |
| SDWL23-80-2 | 80*100 | 1.6-3.0 | 195 | ||||
| SDWL23-100-2 | 100*120 | 1.6-3.5 | 225 | ||||
| SDWL23-120-2 | 120*150 | 1.6-3.2 | 20 | 255 | |||
| SDWL-33-60-2 | 60*80 | 3300 | 1.6*2.8 | 25 | 15 | 165 | |
| SDWL-33-80-2 | 80*100 | 1.6*3.0 | 195 | ||||
| SDWL-33-100-2 | 100*120 | 1.6*3.2 | 225 | ||||
| SDWL-33-120-2 | 120*150 | 1.6*3.5 | 20 | 255 | |||
| SDWL-43-60-2 | 60*80 | 4300 | 1.6*2.8 | 25 | 22 | 165 | |
| SDWL-43-80-2 | 80*100 | 1.6*3.0 | 195 | ||||
| SDWL-43-100-2 | 100*120 | 1.6*3.0 | 225 | ||||
| SDWL-43-120-2 | 120*150 | 1.6*3.2 | 20 | 255 | |||
| SDWL-43-60-3 | 60*80 | 4300 | 1.6*2.8 | 5 | 25 | 22 | 165 |
| SDWL-43-80-3 | 80*100 | 1.6*3.0 | 195 | ||||
| SDWL-43-100-3 | 100*120 | 1.6*3.0 | 225 | ||||
| SDWL-43-120-3 | 120*150 | 1.6*3.2 | 20 | 255 |
1. It has the function of frequency control of motor speed according to different of wire diameter.
2. It has buffer function when speed increase or decrease in very short time.
3. It can count output every day or every year
4. It can save about 30% energy.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
