Quick Details
-
Brand Name:
-
BEWELL
-
Model Number:
-
GM-D30
-
Work Time (h):
-
Continue
-
Warranty:
-
2 Years
-
Product Name:
-
MPPT Solar Charge Controller
-
Rated current:
-
30A
-
Protection Degree:
-
IP21
-
MPPT Efficiency:
-
95%
-
Communication Port:
-
RS485(Optional)
-
Display:
-
LCD Screen
-
Control Mode:
-
Intelligent Control
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BEWELL
-
Model Number:
-
GM-D30
-
Work Time (h):
-
Continue
-
Warranty:
-
2 Years
-
Product Name:
-
MPPT Solar Charge Controller
-
Rated current:
-
30A
-
Protection Degree:
-
IP21
-
MPPT Efficiency:
-
95%
-
Communication Port:
-
RS485(Optional)
-
Display:
-
LCD Screen
-
Control Mode:
-
Intelligent Control
Product Description

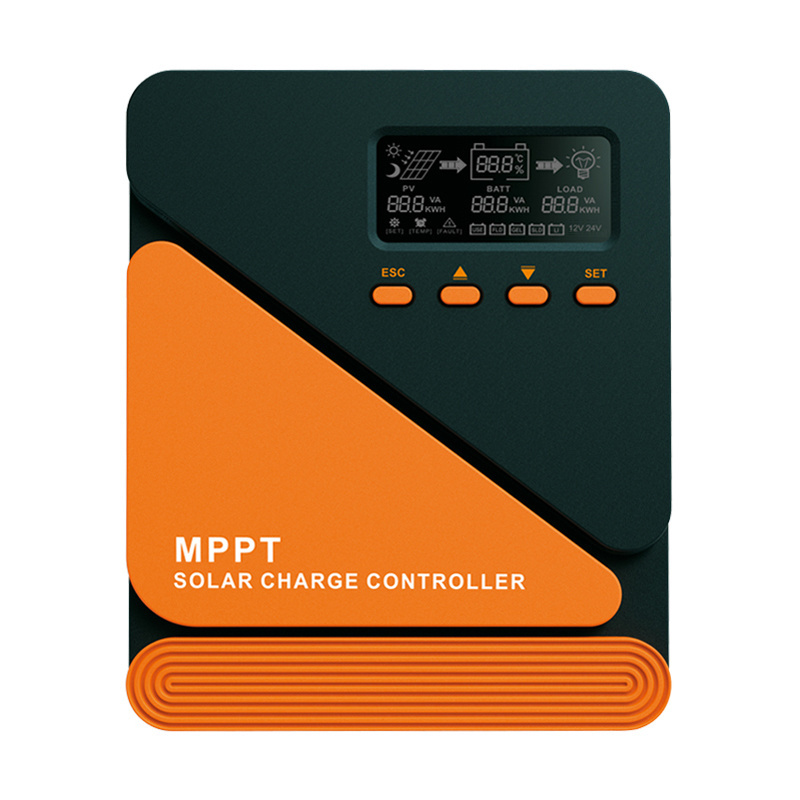

MPPT Solar Charge Controller
*
MPPT with up to 99.9% efficiency.
*
Current and power limiting protection.
*
Temperature protection.
*
Overheat protection.
*
Short circuit protection.
*
Supports multiple battery types.
*
LCD screen.
*
USB interface.
Specification
|
Model
|
GM-D30
|
GM-D40
|
GM-D50
|
|
|||
|
System voltage
|
12V/24V Auto
|
|
|
|
|||
|
No-load loss
|
≤0.4W
|
|
|
|
|||
|
Max solar input voltage
|
100V VOC
|
|
|
|
|||
|
Battery voltage
|
9~32V
|
|
|
|
|||
|
Rated Charging Current
|
30A
|
40A
|
50A
|
|
|||
|
Rated load current
|
20A
|
|
|
|
|||
|
USB output
|
5V 3A
|
|
|
|
|||
|
Max.PV Input Power
|
360W/12V
|
480W/12V
|
600W/12V
|
|
|||
|
|
720W/24V
|
960W/12V
|
1200W/24V
|
|
|||
|
Conversion efficiency
|
≤98%
|
|
|
|
|||
|
MPPT tracking efficiency
|
>99%
|
|
|
|
|||
|
Protection Degree
|
IP21
|
|
|
|
|||
|
Operating temperature
|
-10℃~+65℃
|
|
|
|
|||
|
Electromagnetic compatibility
|
EN61000，EN55022，EN55024
|
|
|
|
|||
|
Communication method
|
Rs485 ( valinnainen )
|
|
|
|
|||
