Quick Details
-
Model Number:
-
SR-S01
-
Voltage:
-
AC220V 50Hz
-
Size:
-
800*830*1530mm
-
Weight:
-
315kg
-
Air:
-
0.4~0.6MPa
-
Function:
-
Cutting,stripping,single-end crimping,double-end crimping
-
Power:
-
2.5KW
-
Stripping length:
-
0~15mm
-
Crimping:
-
2.0T 30 strokes Other strokes can be customized
-
Wire:
-
AWG18#~30#regular two rounds AWG14#-24# Four-wheel thick wire
-
Mold:
-
OTP horizontal, straight
Quick Details
-
Usage:
-
cutting stripping crimping
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sinrad
-
Model Number:
-
SR-S01
-
Voltage:
-
AC220V 50Hz
-
Size:
-
800*830*1530mm
-
Weight:
-
315kg
-
Air:
-
0.4~0.6MPa
-
Function:
-
Cutting,stripping,single-end crimping,double-end crimping
-
Power:
-
2.5KW
-
Stripping length:
-
0~15mm
-
Crimping:
-
2.0T 30 strokes Other strokes can be customized
-
Wire:
-
AWG18#~30#regular two rounds AWG14#-24# Four-wheel thick wire
-
Mold:
-
OTP horizontal, straight
|
Model |
SR-S01 |
|
Size |
800*830*1530mm |
|
Weight |
315kg |
|
Voltage |
AC220V 50Hz |
|
Air |
0.4~0.6MPa |
|
Power |
2.5KW |
|
Function |
Cutting,stripping,single-end crimping,double-end crimping |
|
Cutting length |
45mm~9900mm,(27mm ,customize ) |
|
Cutting tolerance |
≥1m,±0.2% |
|
Stripping length |
0~15mm |
|
Cutting speed |
4200 pcs /h (Within 100mm) |
|
Crimping |
2.0T 30 strokes Other strokes can be customized |
|
Wire |
AWG18#~30#regular two rounds AWG14#-24# Four-wheel thick wire |
|
Mold |
OTP horizontal, straight |

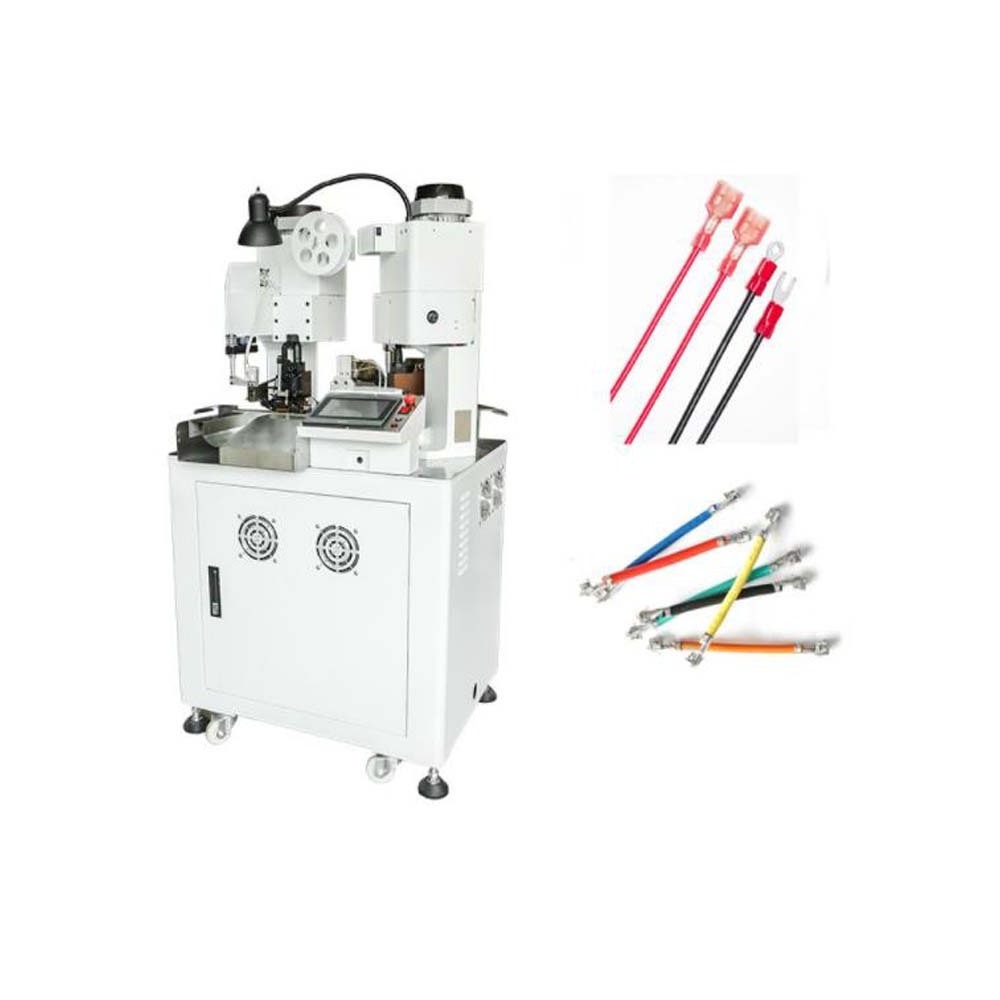

1 . Automatic machine with various functions:cutting, strippin g, single-head crimping, and double-head crimping into one machine .
2 . Advanced software and touch screen technology make it easy to operate, all parameters of the machine are completed on the display screen .
3 . Strong, durable, stable, efficient and energy saving. The raw materials of this machine are blackened by heat treatment and hard anodized .
4 . Adopt double wire feeding motor to avoid the problem of wire feeding length and wire indentation .
5 . Equipped with complete detection functions: missing wire detection, wire knotting, crimp detection, air detection, etc. Compatible with all pressure detection devices on the market .
6 . The crimping position adopts ultra-quiet terminal machine, which has low noise and uniform force. It can be equipped with horizontal molds, straight molds, flag molds.
