Quick Details
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
880x750x1480mm
-
Power (kW):
-
7.5
-
Weight (KG):
-
230 KG
-
Application:
-
polyurethane insulation
-
Type:
-
Pneumatic
-
Raw material:
-
Polyurethane A+B
-
Ratio:
-
1:1
-
Pressure:
-
17 Mpa
-
Capacity:
-
10 Kg/min
-
Air source:
-
0.5-0.8Mpa 0.9m3/min
-
After-sales Service Provided:
-
Video Technical Support Online Support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ESK
-
Machine Type:
-
Pneumatic
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
880x750x1480mm
-
Power (kW):
-
7.5
-
Weight (KG):
-
230 KG
-
Application:
-
polyurethane insulation
-
Type:
-
Pneumatic
-
Raw material:
-
Polyurethane A+B
-
Ratio:
-
1:1
-
Pressure:
-
17 Mpa
-
Capacity:
-
10 Kg/min
-
Air source:
-
0.5-0.8Mpa 0.9m3/min
-
After-sales Service Provided:
-
Video Technical Support Online Support

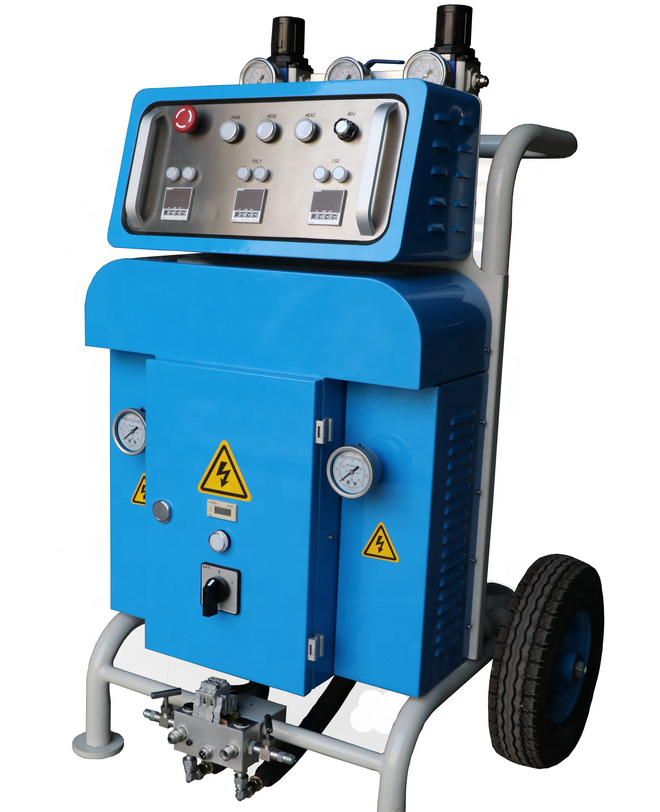

PU foaming machine used for:
- foam insulation spraying machine,
- wall roof insulation foam spraying machine.
- External wall insulation
- Heat insulation of wall, refrigeration storage , roof
- Freeze house
- Insulation for solar water tanks
- Rigid polyurethane only
- Waterproof of roof
|
Item |
FD-411A Polyurethane foaming machine. |
|
Terms of Payment |
100% T/T in advance. |
|
MOQ |
1 set. |
|
Delivery time |
Within 20 days after receipt of your T/T payment. |
|
Warranty |
18 months. |
|
Standard configuration |
Proportion Fixed Mainframe 1 set |
|
Self-cleaning foaming gun 1 set |
|
|
Feeding pump 2 sets |
|
|
Heating hose 50 feet (15m) |
|
|
Connecting hose from feeding pump to machine 10 feet(3m) |
|
|
Connecting hose from heating hose to gun 5 feet(1.5m) |
|
|
Rings and Tools |
|
|
Technical Data |
The ratio of raw material 1:1(Fixed) |
|
The viscosity range of raw material 200-1000CPS (Under the operate temperature) |
|
|
Max working pressure 17 MPa (170 bar) |
|
|
Max fluid temperature 88°C (190°F) |
|
|
Max Output 10kg/min (22 lb/min) |
|
|
Air motor diameter 6 inch |
|
|
Heater power 3000W each one |
|
|
Heating hose power 1000W/15m |
|
|
Whole power 7500W |
|
|
Voltage 230V 1-ph/220v/400V 3-ph 50/60hz |
|
|
Operate temperature 0°C-70°C |
|
|
Clean mode Self-clean by air |
|
|
Max heating hose length 300 feet (90m) |
|
|
Pneumatic source 0.5-0.8Mpa ,0.9m3 /min 145psi |
|
|
Machine size 900mm*800mm*1450mm |
|
|
Gross weight 200KG |
Q: what is warranty time ?
A: 18months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 20 days
Q: what is your minimum order ?
A: 1 pc
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- Trade assurance
MAINFRAME
SPRAY GUN
APPLICATION SCOPE
CONNECTING HOSE
FEEDING PUMP
SPARE PARTS FREE
