1. Strong function:
switch type, intelligent type, proportion type, all kinds of signal output type.
2. Small size:
volume only equivalent to about 35% of similar products.
3. Light and pleasant:
the weight is only equivalent to about 30% of similar products.
4. Beautiful and generous:
aluminum alloy die-casting shell, fine and smooth and can reduce electromagnetic interference.
5. Precision wear:
turbine output shaft special copper alloy forging, high strength, good wear resistance.
6. Safety assurance:
through the AC1500V voltage test, F class insulation motor, safety is guaranteed.
7. Simple supporting:
using single-phase power supply, external circuit is simple, can also do 380V, DC power supply, etc.
8. Easy to use:
no refueling, waterproof and rust prevention, arbitrary Angle installation.
9. Protection device:
double limit, overheating protection, overload protection.
10. A Variety of speed:
full travel time 8 seconds, 10 seconds, 13 seconds, 15 seconds, 30 seconds, 50 seconds, 100 seconds.
11. Corrosion and rust prevention:
support, coupling, screws are made of stainless steel.
12. Intelligent numerical control:
digital setting, digital setting, highly accurate, self-diagnosis, one machine multi-function.
13.Iintegrated:
intelligent control module is highly integrated in the body of the electric device, without external positioner.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
mini electric valve
-
Brand Name:
-
TOYI
-
Product Name:
-

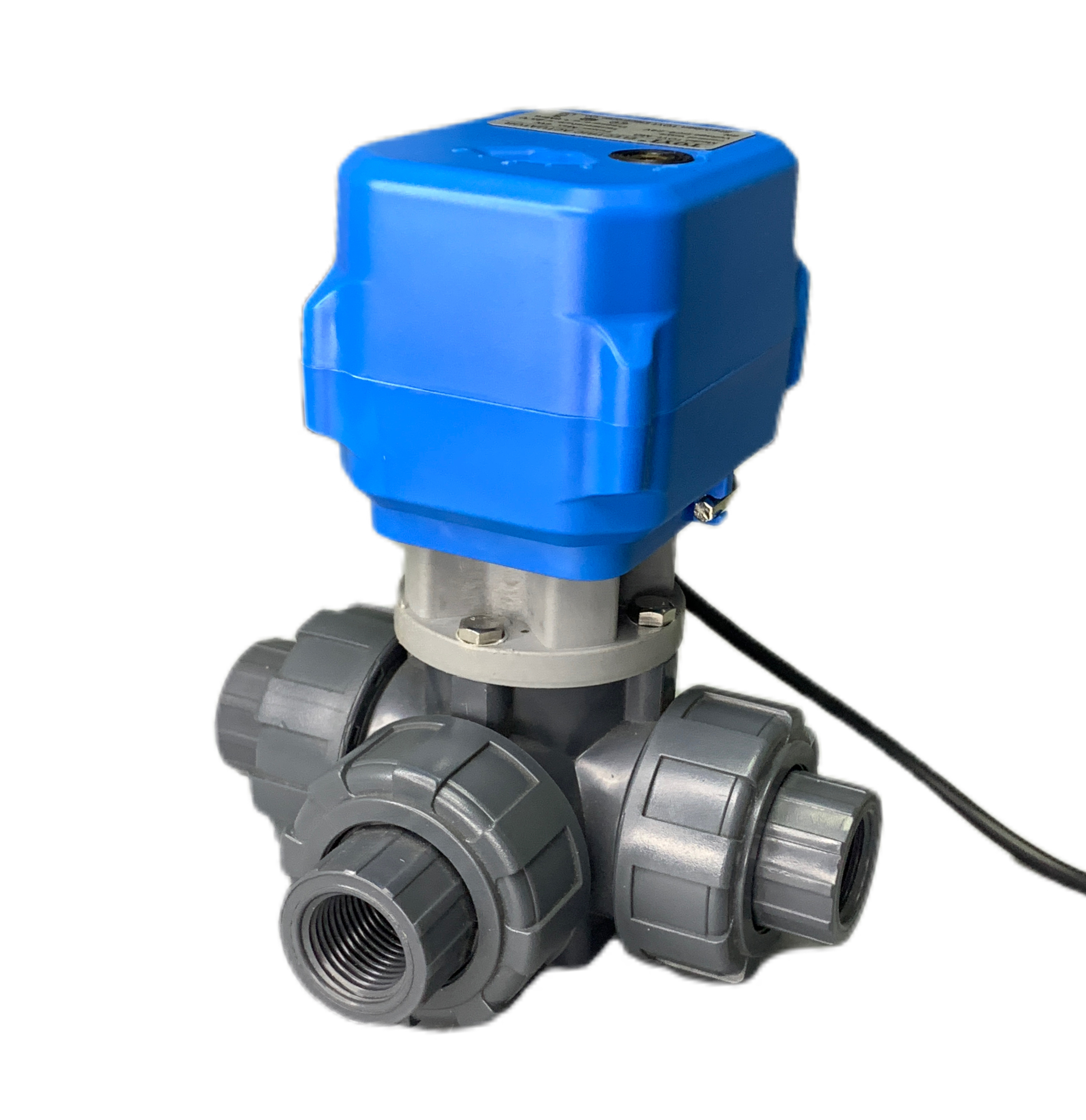

3 way upvc motorized ball valve
-
Body Material:
-
UPVC/Stainless Steel
-
Size:
-
DN15~DN25; 1/2"-1"
-
Voltage:
-
AC220V, DC9-24V, AC110V-265V
-
Output Torque:
-
8Nm
-
Operating time:
-
7-10S
-
Working pressure:
-
Max1.6MPa
-
Protection grade:
-
IP65
-
Certificate:
-
CE, ISO
-
Medium temperature:
-
1℃~95℃
Quick Details
-
Port Size:
-
DN15~DN25; 1/2"-1"
-
Warranty:
-
2 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
mini electric valve
-
Brand Name:
-
TOYI
-
Product Name:
-
3 way upvc motorized ball valve
-
Body Material:
-
UPVC/Stainless Steel
-
Size:
-
DN15~DN25; 1/2"-1"
-
Voltage:
-
AC220V, DC9-24V, AC110V-265V
-
Output Torque:
-
8Nm
-
Operating time:
-
7-10S
-
Working pressure:
-
Max1.6MPa
-
Protection grade:
-
IP65
-
Certificate:
-
CE, ISO
-
Medium temperature:
-
1℃~95℃
Specification
|
Model
|
TOYI
|
|
The output torque
|
6Nm
|
|
The action time
|
＜10s
|
|
Rotation Angle
|
0-90 °
|
|
Working current
|
0.48A
|
|
The power supply
|
AC110V AC220V DC9-24V
|
|
Protection grade
|
IP 65
|
Product Description
Product Features:
|
Size
|
Material
|
L
|
L1
|
L2
|
G
|
H
|
D
|
|
DN15 (1/2'')
|
Stainless steel
|
62.5
|
31.5
|
12.5
|
25
|
56
|
G1/2
|
|
DN20 (3/4'')
|
Stainless steel
|
71.5
|
33.5
|
15.5
|
31
|
66
|
G3/4
|
|
DN25 (1'')
|
Stainless steel
|
82
|
41
|
19
|
38
|
78.5
|
G1
|
|
Size
|
Material
|
L
|
L1
|
L2
|
G
|
H
|
D
|
|
DN15
|
Brass
|
50
|
25
|
12.5
|
25
|
48.5
|
G1/2
|
|
DN20
|
Brass
|
64
|
32
|
16
|
32
|
49.5
|
G3/4
|
|
DN25
|
Brass
|
74
|
37
|
19
|
38.5
|
55.5
|
G1
|
WIRING
Application field
Garden irrigation
Field irrigation
Petrochemical industry
Gas industry
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
