Quick Details
-
Table Travel (Z) (mm):
-
800 mm
-
Max. Table Load(kg):
-
400
-
Travel (W-axis) (mm):
-
800 mm
-
Marketing Type:
-
New Product 2021
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Place of Origin:
-
China
-
Brand Name:
-
HUAWEI
-
Voltage:
-
220V/380V/430V
-
Dimension(L*W*H):
-
1570*1910*2575
-
Weight (T):
-
3500 T
-
Name:
-
T8018C HUAWEI cylinder boring and honing machine
-
Max boring depth:
-
650MM
-
Processing diameter:
-
42-180MM
Quick Details
-
Table Size (mm):
-
1650*500
-
Table Travel (X) (mm):
-
1500 mm
-
Table Travel (Y) (mm):
-
50 mm
-
Table Travel (Z) (mm):
-
800 mm
-
Max. Table Load(kg):
-
400
-
Travel (W-axis) (mm):
-
800 mm
-
Marketing Type:
-
New Product 2021
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Place of Origin:
-
China
-
Brand Name:
-
HUAWEI
-
Voltage:
-
220V/380V/430V
-
Dimension(L*W*H):
-
1570*1910*2575
-
Weight (T):
-
3500 T
-
Name:
-
T8018C HUAWEI cylinder boring and honing machine
-
Max boring depth:
-
650MM
-
Processing diameter:
-
42-180MM
Product Description
cheap factory price single unit boring machine cylinder boring machine T8018C

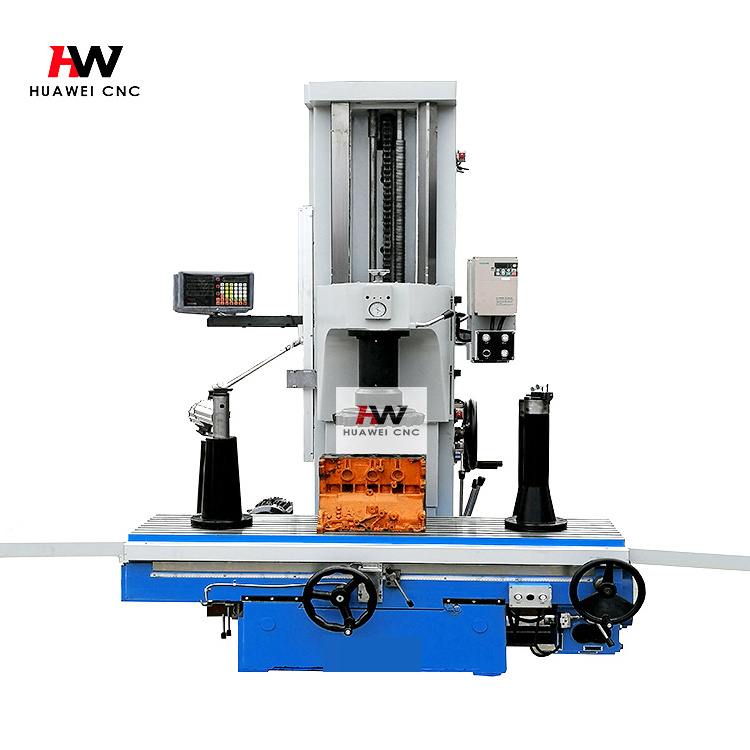

Physical picture of machine:
The machine parameters:
|
Model
|
|
T8018C
|
|
|
Range of boring diameter
|
|
Φ 42- Φ 180 mm
|
|
|
Max. boring depth
|
|
650 mm
|
|
|
The rotational speed of spindle
|
|
140-610 r/min
|
|
|
Spindle feed
|
|
0.05,0.10,0.20 mm
|
|
|
Spindle travel
|
|
800 mm/r
|
|
|
The high rising speed of spindle
|
|
2.65 m/min
|
|
|
The distance from the central line of the spindle to the body
|
|
315 mm
|
|
|
Table size
|
|
1680 × 450 mm
|
|
|
Table travel
|
Crosswise
|
150 mm
|
|
|
|
Lengthwise
|
1500 mm
|
|
|
Rapid travel of guide slide
|
|
2800 mm/min
|
|
|
Rapid travel of table
|
|
1400 mm/min
|
|
|
Machine power
|
Main motor
|
YD100L2-4/2,1400/2800 rpm, 2.4/3 Kw
|
|
|
|
Motor for quick-moving
|
Y802-4,1400 rpm,0.75 Kw
|
|
|
Overall dimensions(L × W × X)
|
|
2680 × 1500 × 2325 mm
|
|
|
Packing dimensions(L × W × X)
|
|
1578 × 1910 × 2575 mm
|
|
|
N.W./G.W.
|
|
3500/3700 kg
|
|
