- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
INNOVA
-
Model Number:
-
BSC-1302IIA2
-
Nominal Size:
-
1.3meter(4')
-
Filtration Efficiency:
-
HEPA: ≥99.995%
-
Downflow Velocity:
-
0.35 m/s(68.88fpm)
-
Inflow Velocity:
-
0.54 m/s(106.27fpm)
-
Noise:
-
≤67 dB(A)
-
Vibration(μm):
-
≤5 μm(center of tabletop)
-
Power Supply:
-
AC230V,50/60Hz
-
Opening Height(mm):
-
250
-
Product Protection:
-
Total colony in culture dish ≤5CFU./time
-
Lumin.:
-
≥750 Lx
Quick Details
-
Application:
-
Hospital, School, Lab
-
Design Style:
-
Modern
-
Material:
-
Metal
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
INNOVA
-
Model Number:
-
BSC-1302IIA2
-
Nominal Size:
-
1.3meter(4')
-
Filtration Efficiency:
-
HEPA: ≥99.995%
-
Downflow Velocity:
-
0.35 m/s(68.88fpm)
-
Inflow Velocity:
-
0.54 m/s(106.27fpm)
-
Noise:
-
≤67 dB(A)
-
Vibration(μm):
-
≤5 μm(center of tabletop)
-
Power Supply:
-
AC230V,50/60Hz
-
Opening Height(mm):
-
250
-
Product Protection:
-
Total colony in culture dish ≤5CFU./time
-
Lumin.:
-
≥750 Lx
Product Description
Introduction:

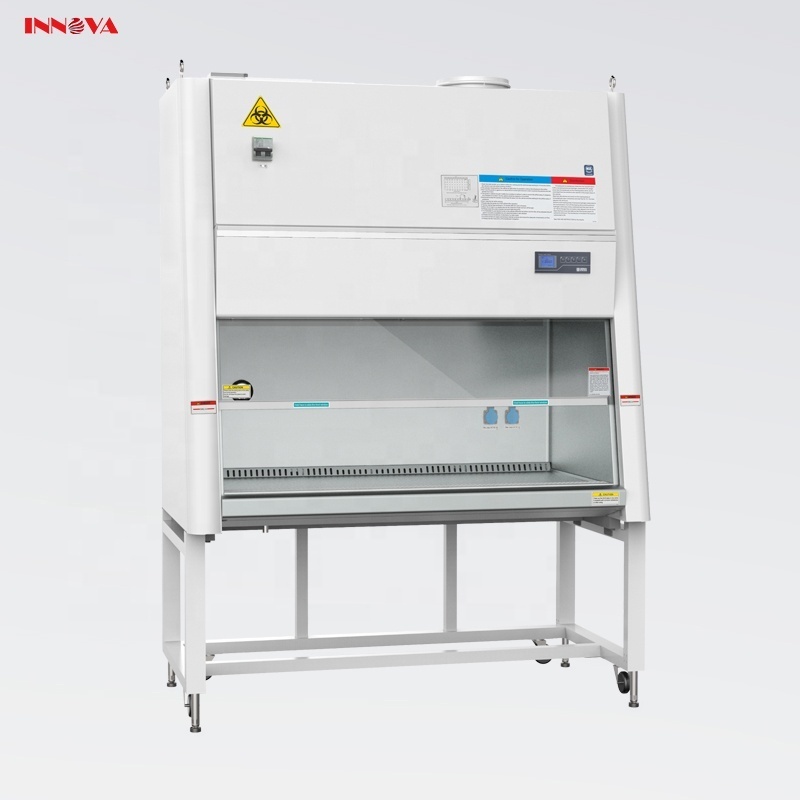

A biosafety cabinet (BSC)—also called a biological safety cabinet or microbiological safety cabinet—is an enclosed, ventilated laboratory workspace for safely working with materials contaminated with (or potentially contaminated with) pathogens requiring a defined biosafety level. Several different types of BSC exist, differentiated by the degree of biocontainment they provide.
Features
Friendly Control Panel
◆ Color LED screen, show the air velocity, time, fan station, HEPA filter life and alarm in real time.
Safe and Reliable, Energy-Efficient
◆ DC fan and LED light make the operation power consumption save 30%.
◆ Intelligent auto-supply system.
◆ The alarm system for safe operation height is interlocked with light.
◆ Leak detection in cabinet, no leakage at 500Pa.
◆ UV light with set timer, safer and high efficiency.
Humanized design
◆ 10°sloped front make it comfortable to operator.
◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution.
◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down
◆ Color LED screen, show the air velocity, time, fan station, HEPA filter life and alarm in real time.
Safe and Reliable, Energy-Efficient
◆ DC fan and LED light make the operation power consumption save 30%.
◆ Intelligent auto-supply system.
◆ The alarm system for safe operation height is interlocked with light.
◆ Leak detection in cabinet, no leakage at 500Pa.
◆ UV light with set timer, safer and high efficiency.
Humanized design
◆ 10°sloped front make it comfortable to operator.
◆ Negative pressure and double layers chamber around ensure non-leakage, non-pollution.
◆ Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with below down
HEPA filters :
◆ USA HV HEPA Filter Medium, provide 99.995% typical efficiency for particle size over 0.3 microns, and the materials is glass fiber.
◆ A minimum ISO 5 air quality in the work area
◆ Unique Technology of non leakage.
◆ Every HEPA filters will be tested to ensure non leakage.
◆ USA HV HEPA Filter Medium, provide 99.995% typical efficiency for particle size over 0.3 microns, and the materials is glass fiber.
◆ A minimum ISO 5 air quality in the work area
◆ Unique Technology of non leakage.
◆ Every HEPA filters will be tested to ensure non leakage.
Specification
|
Model/Item
|
|
BSC-1301ⅡA2
|
BSC-1302ⅡA2
|
||
|
Nominal Size
|
|
1.3meter(4')
|
|
||
|
Filtration Efficiency
|
|
HEPA: ≥99.995%, @0.3μm/ULPA:≥99.9995%, @0.12μm
|
|
||
|
Downflow Velocity
|
|
0.35 m/s(68.88fpm)
|
|
||
|
Inflow Velocity
|
|
0.54 m/s(106.27fpm)
|
|
||
|
Noise
|
|
≤67 dB(A)
|
|
||
|
Vibration(μm)
|
|
≤5 μm(center of tabletop)
|
|
||
|
Power Supply
|
|
AC115V，1φ，60Hz
|
AC230V，1φ，50/60Hz
|
||
|
Opening Height(mm)
|
|
250
|
|
||
|
Operator Protection
|
|
A. Total colony in impaction sampler ≤10CFU./time
|
|
||
|
|
|
B. Total colony in slot sampler ≤5CFU./time
|
|
||
|
Product Protection
|
|
Total colony in culture dish ≤5CFU./time
|
|
||
|
Cross Contamination
|
|
Total colony in culture dish ≤2CFU./time
|
|
||
|
Max Consumption(with spare socket)
|
|
1.5 kVA
|
/
|
||
|
Rated Power(without spare socket)
|
|
1 kVA
|
0.46 kVA
|
||
|
Weight
|
|
300 kg
|
|
||
|
Work Dimension (W1XD1XH1)
|
|
1270*600*620 mm (50''x23.6''x24.4'')
|
|
||
|
Overall Dimension (WXDXH)
|
|
1500*790*2050 mm (59.1''x31.1''x80.7'')
|
|
||
|
Size and Qty. of Light
|
|
LED 24.5 w x ②
|
|
||
|
Size and Qty. of UV Light
|
|
15 w x ②
|
|
||
|
Lumin.
|
|
≥750 Lx
|
|
||
|
Cabinet Materials
|
|
High-grade steel and lacquered in ivory
|
|
||
|
Working Area Materials
|
|
SS304 fully finished
|
|
||
|
Air Direction
|
|
Top out
|
|
||
|
Plug Style
|
|
USA Type(AC125V/10A)
|
/
|
||
|
Qty. of Spare Socket
|
|
USA Type(AC125V/2A
|
/
|
||
