- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
different models
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Centrifugal Concentrator
-
Name:
-
China Gold Mining Equipment
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Application:
-
Gold
-
Capacity:
-
1-20tons
-
Usage:
-
Separate Gold
-
Feature:
-
High Recovery Rate Easy
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ascend
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
different models
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Centrifugal Concentrator
-
Name:
-
China Gold Mining Equipment
-
Keywords:
-
Centrifugal Gold Concentrtor
-
Application:
-
Gold
-
Capacity:
-
1-20tons
-
Usage:
-
Separate Gold
-
Feature:
-
High Recovery Rate Easy

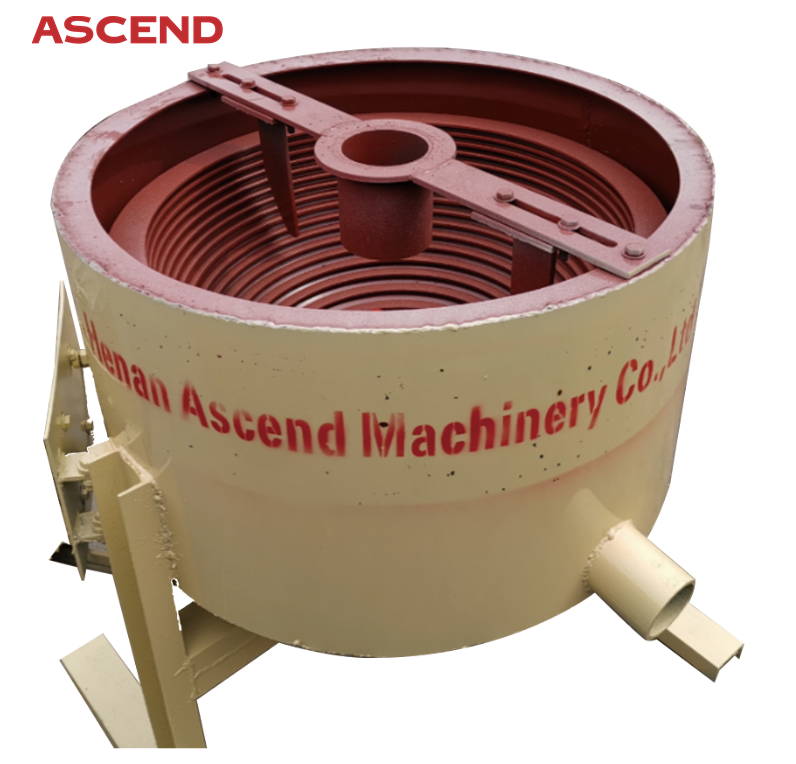

Simplified Gravity Placer rein Gold Recovery Centrifugal Gold Concentrator
Simplified gold centrifugal concentrator Gold Kacha is a type of simplified gold concentrator to collect the big particle free gold in placer gold or grinded vein gold. It is an ideal equipment to replace the expensive knelson gold concentrator. It can work perfectly with gold wet pan mill machine.
In operation, material is fed as a slurry of minerals and water into a rotating bowl that includes special fluidized grooves or riffles to capture the heavies.
Fluidized water/back wash water/recoil water is introduced through the multiple fluidization holes in the inner cone to keep the bed with heavy minerals. Fluidized water/back wash water/recoil water plays an important role during the separation.
Capacities range from 1 ton to 1.5 ton per hour.Beneficiation test shows that the recovery can reach 90%,especially for recovering the natural lode ore gold, or the grinding size after wet pan mill be 80 to 150 mesh.
|
Name |
Model |
Power/kw |
Capacity(t/h) |
Max feeding size/mm |
Water required(m³/h) |
Max Slurry density |
Concentrate weight per batch/KG |
Run time per batch/Hour |
|
Gold kacha |
LX80 |
1.1 |
1-1.2 |
2 |
2-3 |
30% |
8-10 |
1 |
Contact Us
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
