Quick Details
-
Brand Name:
-
KA PACK
-
Weight:
-
250 KG
-
Dimension(L*W*H):
-
1850*800*1200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

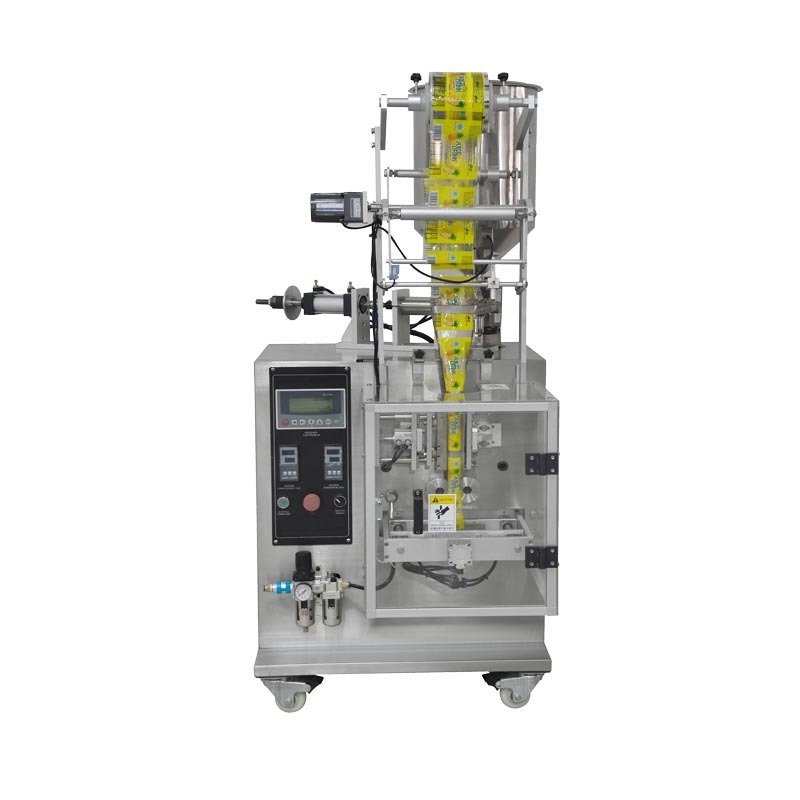

Automatic small sachet paste packing machine
-
Packing volume:
-
1-100g(small sachet bag)
-
Usage:
-
Be used to pack different sauce paste and liquid into bags
-
Advantage:
-
High packing speed and precision
-
Control system:
-
PLC+English Panel
-
Material:
-
304 Stainless Steel, can be customized 316 stainless steel
-
Keyword:
-
High speed
-
Packege:
-
Packege
Quick Details
-
Voltage:
-
220V/110V
-
Power:
-
1.5kw
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KA PACK
-
Weight:
-
250 KG
-
Dimension(L*W*H):
-
1850*800*1200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Automatic small sachet paste packing machine
-
Packing volume:
-
1-100g(small sachet bag)
-
Usage:
-
Be used to pack different sauce paste and liquid into bags
-
Advantage:
-
High packing speed and precision
-
Control system:
-
PLC+English Panel
-
Material:
-
304 Stainless Steel, can be customized 316 stainless steel
-
Keyword:
-
High speed
-
Packege:
-
Packege
Application:
1.These machine is widely used in food, cosmetic such as tomato paste, shampoo, facial cream, spices such as paste, liquid, paste, honey.
2.Features: bag making, measuring, filling, sealing, cutting, counting and hot pressing batch No. Or printing date can be done automatically.
3.Packing materials: several kinds of heat-seal lamination, such as cellophane/PE, BOPP/PE,Aluminum Foil/PE etc
Feature:
1) Imported Mitsubishi, Japanese PLC control, English and Man-machine interface,easy operation.
2) Photoelectric tracking system for precise bag length and position of film.
3) Filling volume and bag length are easy to adjust on the interface without changing mould.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) No leak with high filling accuracy
6) Easy operation,smooth performance,low noise,compact construction,convenient to
maintenance, take up small floor space in high packaging speed and efficiency.
7) The machine is made of stainless steel S/S304.
Technical parameters
|
Packing speed |
Max70bags / min |
|
Bag length |
30-150mm |
|
Bag width |
10-110mm |
|
Metering mode |
Air Pump |
|
Packaging Capacity |
1-50/50-100ml |
|
Air pressure |
0.6-0.7MP |
|
Power consumption |
1.5kw/220V.50Hz,1P(cancustomize380V,50Hz,3P) |
|
Packing |
backing sealing bag, Three side sealing,and four side sealing |
|
Total Weight |
250kg |
|
Packaging size |
1850*800*1200mm |
