Quick Details
-
Drill Diameter:
-
1-16mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HICAS
-
Voltage:
-
380V 50HZ
-
Power:
-
13.7kw
-
Dimension(L*W*H):
-
4500*1900*1800mm
-
Key Selling Points:
-
multi head mortising machine
-
Weight (KG):
-
3500
-
Name:
-
horizontal mortising machine mortise and tenon machine
-
Max. Mortise length:
-
100mm
-
Max. Mortise depth:
-
60mm
-
Max. Mortise width:
-
16mm
-
Vibration frequency:
-
50-200 times/min
-
Spindle quantity:
-
32pc
-
Certification:
-
ISO
Quick Details
-
Application:
-
wood baby cots
-
Motor Speed:
-
9000r/min
-
Marketing Type:
-
multi head mortising machine
-
Drill Diameter:
-
1-16mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HICAS
-
Voltage:
-
380V 50HZ
-
Power:
-
13.7kw
-
Dimension(L*W*H):
-
4500*1900*1800mm
-
Key Selling Points:
-
multi head mortising machine
-
Weight (KG):
-
3500
-
Name:
-
horizontal mortising machine mortise and tenon machine
-
Max. Mortise length:
-
100mm
-
Max. Mortise depth:
-
60mm
-
Max. Mortise width:
-
16mm
-
Vibration frequency:
-
50-200 times/min
-
Spindle quantity:
-
32pc
-
Certification:
-
ISO
Product Description
horizontal mortising machine mortise and tenon machine
| Name | horizontal mortising machine mortise and tenon machine |
| Max. Mortise length | 100mm |
| Max. Mortise depth | 60mm |
| Max. Mortise width | 16mm |
| Vibration frequency | 50-200 times/min |
| Spindle quantity | 32pc |
| Min. Distance between 2 spindle | 50mm |
| Working table lifting distance | 60mm |
| Spindle rotation speed | 9000RPM |
| Main motor power | 2.2kw*4=8.8kw |
| Vibration motor power | 2.2kw |
| Hydraulic motor power | 2.2kw |
| Total power | 13.7kw |
| Machine dimension | 4500*1900*1800mm |
| Machine weight | 3000kg |
Detailed Images

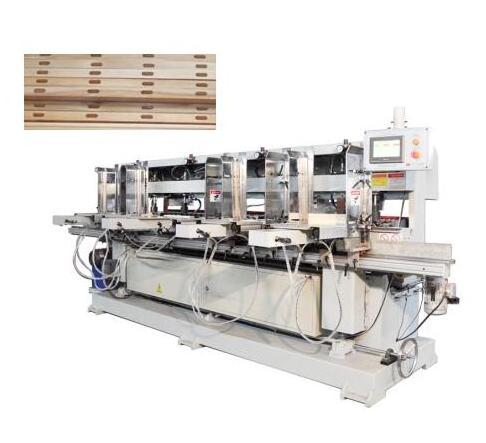

horizontal mortising machine mortise and tenon machine
4 automatic loader hydraulic machine
32 heads
