Quick Details
-
Weight:
-
5000 KG
-
Drilling Diameter:
-
140-254mm
-
One-time advance length:
-
3.3m
-
Walking speed:
-
2.5km/h
-
Climbing angle:
-
30
-
Using air pressure:
-
1.7-2.5MAP
-
Engine:
-
Quanchai
-
Rig lifting force:
-
13T
-
Rapid rise speed:
-
30m/min
-
Application:
-
Drilling Wells
-
Keyword:
-
Drilliing Rig
-
Function:
-
Drilling Machining
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Feida
-
Dimension(L*W*H):
-
3950*1750*2250
-
Weight:
-
5000 KG
-
Drilling Diameter:
-
140-254mm
-
One-time advance length:
-
3.3m
-
Walking speed:
-
2.5km/h
-
Climbing angle:
-
30
-
Using air pressure:
-
1.7-2.5MAP
-
Engine:
-
Quanchai
-
Rig lifting force:
-
13T
-
Rapid rise speed:
-
30m/min
-
Application:
-
Drilling Wells
-
Keyword:
-
Drilliing Rig
-
Function:
-
Drilling Machining

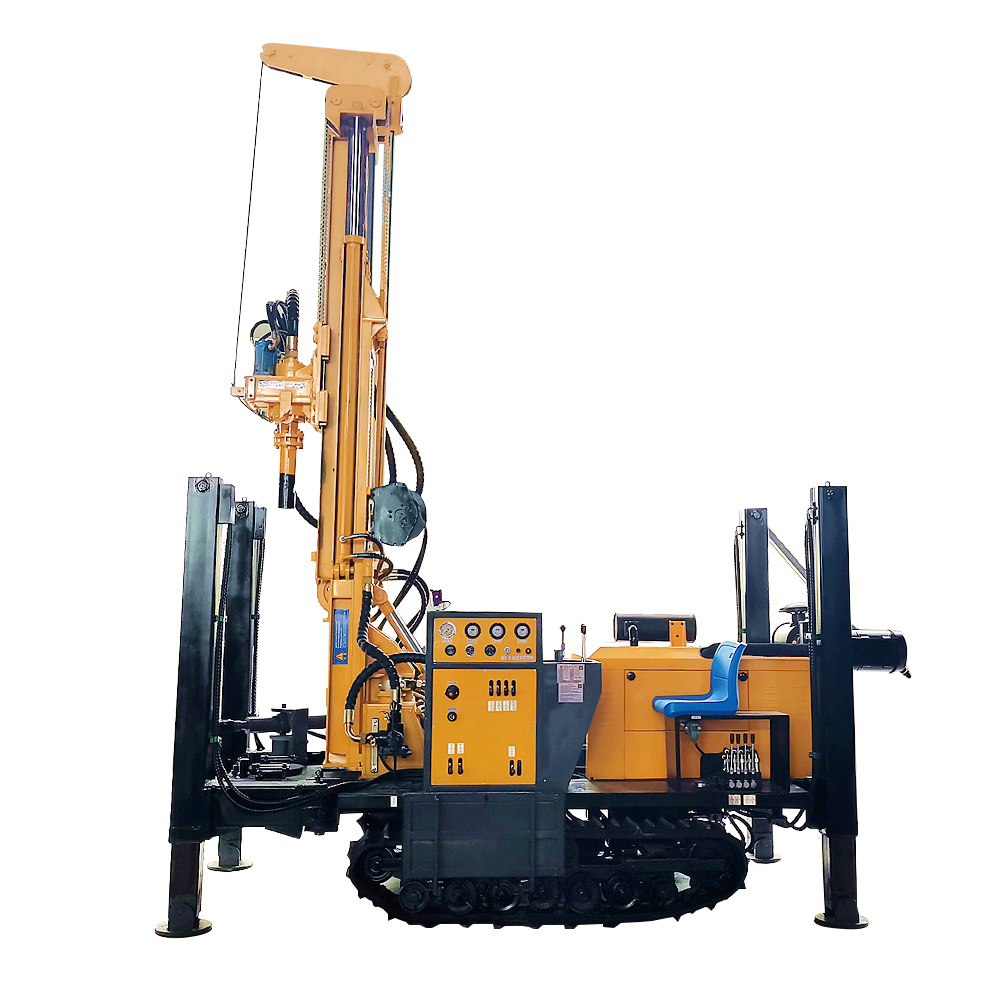

Product Description
2. Patented design compound boom, double cylinder lifting.
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder.
4. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
5. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud.
Specification
|
Model
|
FYX200
|
FY280
|
FY580
|
|
The weight (T)
|
5
|
7.6
|
12
|
|
The hole diameter (mm）
|
140-254
|
140-305
|
140-350
|
|
Drilling depth (m)
|
200
|
280
|
580
|
|
One-time advance length (m)
|
3.3
|
6.6
|
6.6
|
|
High leg stroke (m)
|
1.4
|
1.4
|
1.7
|
|
Climbing angles (Max.）
|
30
|
30
|
30
|
|
Equipped capacitor (kw)
|
65
|
75
|
132
|
|
Using air pressure (MPA)
|
1.7-2.5
|
1.7-3.0
|
1.7-3.5
|
|
Air consumption (m
3
/min)
|
17-31
|
17-31
|
17-42
|
|
Swing speed (rpm)
|
45-70
|
40-70
|
45-140
|
|
Rig lifting force (T)
|
13
|
17
|
28
|
|
Swing torque (N.m)
|
3400-4700
|
4500-6000
|
8500-11000
|
|
The penetration efficiency (m/h)
|
10-35
|
15-35
|
15-35
|
|
Dimension (mm)
|
3950*1750*2250
|
5900*1850*2360
|
6200*2200*2650
|
|
The engine brand
|
Quanchai engine
|
Yuchai engine
|
Cummins engine
|
SHOW DETAILS
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
