Quick Details
-
Brand Name:
-
Lumiax
-
Model Number:
-
SMR-MPPT1050/-BT
-
Work Time (h):
-
24h
-
Max PV Power:
-
150W
-
Max PV Voltage:
-
45V
-
Certificate:
-
CE,ISO9001,ROHS,ISO14001
-
Warranty:
-
3 years
-
Charge mode:
-
Fast,boost,equalization,float
-
Certification:
-
CE RoHS ISO9001
-
Battery type:
-
AGM,Liquid,GEL
-
Self Consumption:
-
6mA
-
OEM,ODM:
-
Yes
-
Casing:
-
Silver casing with blue stickers
-
Net weight:
-
260g
-
Dimensions(mm):
-
85.8*81*23.1mm
-
Function:
-
Bluetooth can be choose
-
OEM&ODM:
-
Accepted
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Lighting Controller, Solar System Controller, monitor,lighting,home system
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lumiax
-
Model Number:
-
SMR-MPPT1050/-BT
-
Work Time (h):
-
24h
-
Max PV Power:
-
150W
-
Max PV Voltage:
-
45V
-
Certificate:
-
CE,ISO9001,ROHS,ISO14001
-
Warranty:
-
3 years
-
Charge mode:
-
Fast,boost,equalization,float
-
Certification:
-
CE RoHS ISO9001
-
Battery type:
-
AGM,Liquid,GEL
-
Self Consumption:
-
6mA
-
OEM,ODM:
-
Yes
-
Casing:
-
Silver casing with blue stickers
-
Net weight:
-
260g
-
Dimensions(mm):
-
85.8*81*23.1mm
-
Function:
-
Bluetooth can be choose
-
OEM&ODM:
-
Accepted
Product Description

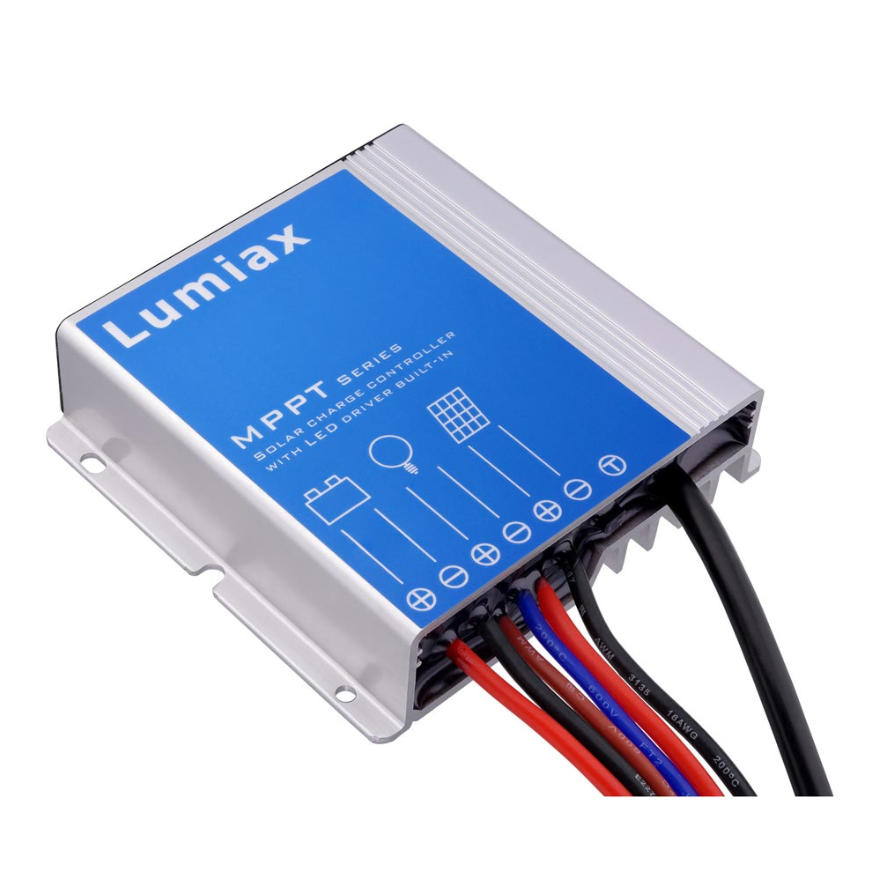

12V 10a mppt voltage regulator for street lighting,home system
Lithium,Gel,AGM,Liquid,Lifepo4
Lithium,Gel,AGM,Liquid,Lifepo4
IP67 waterproof,Bluetooth can be choose
MPPT, 5 stages, IP67, Infrared High efficiency
1.Innovative Max Power Point Tracking (MPPT) technology, tracking efficiency >99.9%
2.Full digital technology, high charge conversion efficiency up to 97%
3.Remote unit to configure with LCD display
4.External temp sensor automatic temp compensation
5.Four stage charge way: fast, boost, equalization, float
8.Full automatic electronic protect function
1.Innovative Max Power Point Tracking (MPPT) technology, tracking efficiency >99.9%
2.Full digital technology, high charge conversion efficiency up to 97%
3.Remote unit to configure with LCD display
4.External temp sensor automatic temp compensation
5.Four stage charge way: fast, boost, equalization, float
8.Full automatic electronic protect function
Product Paramenters
|
Type
|
SMR-MPPT1050/SMR-MPPT1050-BT
|
|
Max charging current
|
10A
|
|
System Voltage
|
12V
|
|
Mppt charging voltage
|
<14.5V(25°C)
|
|
Boost voltage
|
14.5V(25°C)
|
|
Equal voltage
|
14.8V(25°C) Liquid,AGM
|
|
Float voltage
|
13.7V(25°C)
|
|
Low voltage disconnect
|
10.8-11.8V,SOC1--5 (Programmable)
|
|
Low voltage reconnect
|
11.4-12.8V(Programmable)
|
|
Max input power
|
130W
|
|
Day/Night threshold
|
3.0~8.0V (Programmable)
|
|
Day/Night delay time
|
0~30min(Programmable)
|
|
Max solar voltage
|
45V
|
|
Slef Consumption
|
6mA
|
|
Output Current
|
10A
|
|
Weight
|
260g
|
