Quick Details
-
Voltage:
-
380V / Customized, 380v, 50hz 3phase / customization
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2100*3600mm / Customized, 3200*920*2100mm /customization
-
Raw material:
-
Charcoal powder, coal powder, mineral powder, iron powder
-
Roller material:
-
65Mn/9Cr2Mo
-
Raw material size:
-
Less than 5mm/customization
-
Briquette shape:
-
Round,oval, pillow, square, heart, etc
-
Suitable for:
-
Mainly used for BBQ,also can be used for industry burning
-
Spindle speed:
-
15-17(r/min) / customization
-
Diameter of roller:
-
290 mm to 800mm/customization
-
Roller wdth:
-
250mm to 700mm/customization
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Hengchang
-
Voltage:
-
380V / Customized, 380v, 50hz 3phase / customization
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2100*3600mm / Customized, 3200*920*2100mm /customization
-
Raw material:
-
Charcoal powder, coal powder, mineral powder, iron powder
-
Roller material:
-
65Mn/9Cr2Mo
-
Raw material size:
-
Less than 5mm/customization
-
Briquette shape:
-
Round,oval, pillow, square, heart, etc
-
Suitable for:
-
Mainly used for BBQ,also can be used for industry burning
-
Spindle speed:
-
15-17(r/min) / customization
-
Diameter of roller:
-
290 mm to 800mm/customization
-
Roller wdth:
-
250mm to 700mm/customization

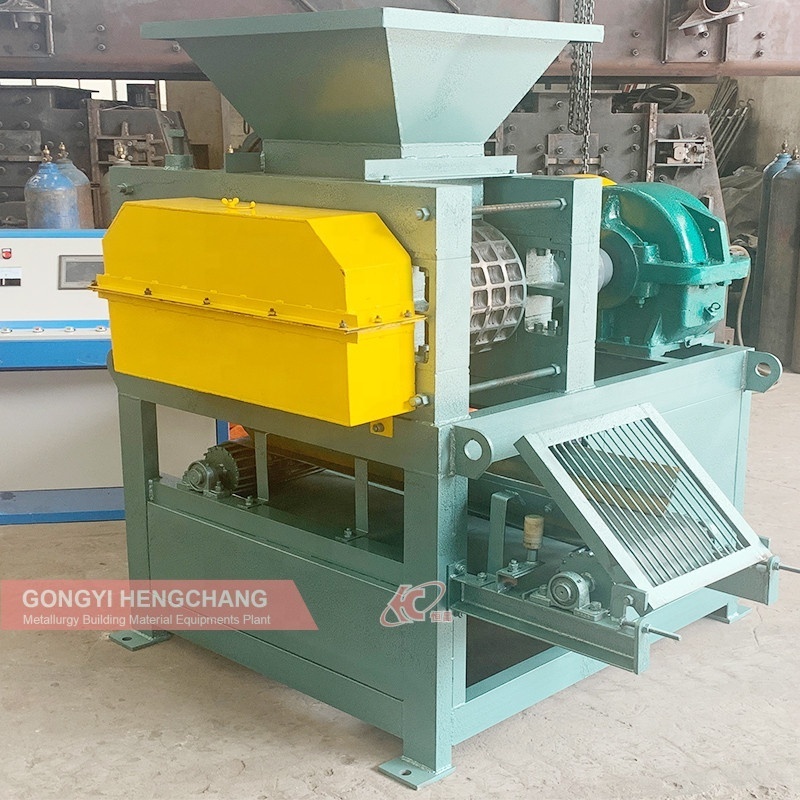

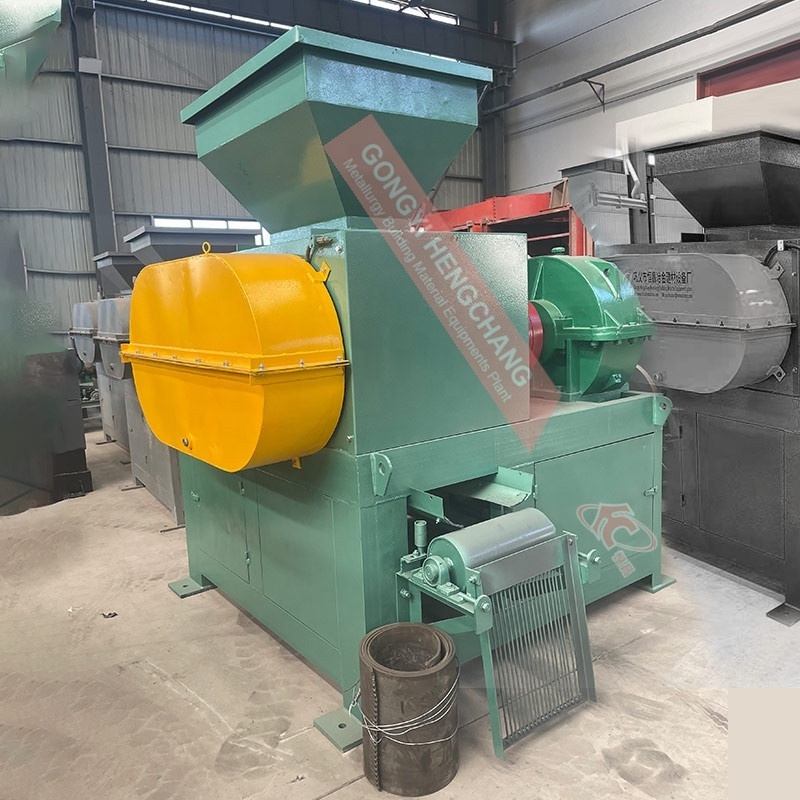

small scale bbq coal carbon black charcoal briquette press making machine price
Products Description
Ball press briquetting machine can press ore powder, metal powder, coal powder, coke powder and other materials into ball shape.
The charcoal or coal briquettes can be different shapes by changing with special molds, such as oval, pillow, round, egg,ball, column and square. We can also customize the shape for our customers.
Final briquettes have features of high density, high strength, high hardness, high performance, and the main rollers adopt hard wear resistance materials, which improve roller's service life greatly.
Details Display
|
Model
|
Roller Diameter(mm)
|
Capacity（t/h）
|
Power
|
Reducer
|
|
290
|
290
|
1-2
|
5.5-7.5
|
350
|
|
360-2
|
360
|
2-3
|
7.5-11
|
350
|
|
360-4
|
360
|
2-3
|
11-15
|
400
|
|
450
|
450
|
4-5
|
18.5-22
|
400
|
|
550
|
550
|
5-8
|
22-30
|
500
|
|
650
|
650
|
8-10
|
30-45
|
650
|
|
800
|
800
|
15-20
|
90
|
850
|
|
1000
|
1000
|
40-50
|
110
|
1000
|
Raw material & Final products
The raw material of the coal ball press machine:
1.Coal/coke/charcoal powder;
2.Metal powder:Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc;
3.Mineral powder:Aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
2.Metal powder:Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc;
3.Mineral powder:Aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
By using our machines，you can get any shape you want !
