2.
The color of the
rubber ring
is fuller, the material is more uniform, and the tensile strength is higher
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
05/903850
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Duo Cone Floating Seal Group
-
Material:
-
Gcr15 steel and NBR60 o rings
-
Hardness:
-
58-62HRC
-
Life-span:
-
5000HRS
-
MOQ:
-
1 set
-
Stock:
-
Yes
-
OEM:
-
YES
-
Certificate:
-
ISO9001:2000& TUV
Quick Details
-
Size:
-
394*366*38mm, 38mm-1175mm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Rvton
-
Model Number:
-
05/903850
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Duo Cone Floating Seal Group
-
Material:
-
Gcr15 steel and NBR60 o rings
-
Hardness:
-
58-62HRC
-
Life-span:
-
5000HRS
-
MOQ:
-
1 set
-
Stock:
-
Yes
-
OEM:
-
YES
-
Certificate:
-
ISO9001:2000& TUV
Products Description

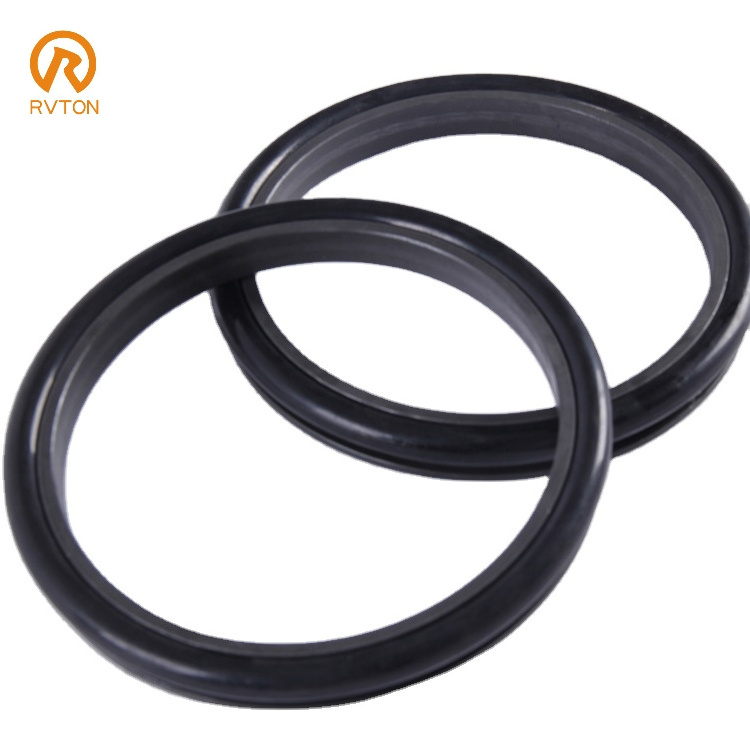

JCB excavator mechanical face heavy duty seal 05/903850 floating seal group duo cone
1.One set=2 metal rings+2 rubber orings
|
Brand Name
|
RVTON
|
|
Product name
|
floating seal, duo cone seal, mechanical face seal
|
|
Steel Material
|
Forged steel
100CR6
Cast Alloy
15CR3MO
|
|
Rubber Material
|
NBR60/Silicone/FPM/HNBR
|
|
Color
|
black,grey,yellow,brown,blue,red or customized
|
|
Size
|
394*366*38mm
|
|
Payment Terms
|
TT, Paypal, Western union, Alibaba Trade Assurance etc
|
DETAL IMAGES
|
Metal Ring
|
Forged steel GCr15
|
Cast iron 15Cr3Mo
|
|
Work face smoothness
|
≤Ra 0.15um
|
≤Ra 0.1um
|
|
Pressure loading
|
≤Ra 0.15MPa
|
≤Ra 0.13MPa
|
|
Minimum tensile strength
|
＞12.0MPa
|
＞12.0MPa
|
|
Forging line speed
|
2m/s
|
3m/s
|
|
Hardness (HRC)
|
58-62
|
62-70
|
|
Temperature range (℃)
|
-100~+200
|
-40~+160
|
|
LIfetime (Hours)
|
3000~5000
|
5000~8000
|
|
Minimum elongation at break
|
≥250%
|
≥280%
|
|
Rubber Ring
|
NBR
|
SILICONE
|
FPM
|
HNBR
|
|
Hardness (HRC)
|
60±5
|
60±5
|
60±5
|
60±5
|
|
Minimum tensile strength
|
≥11MPa
|
≥10MPa
|
≥11MPa
|
≥13MPa
|
|
Minimum elongation at break
|
≥300%
|
≥400%
|
≥260%
|
≥350%
|
|
Permanent deformation
|
25%
|
20%
|
20%
|
25%
|
|
Temperature range (℃)
|
-40~+120
|
-40~+230
|
-30~+250
|
-30~+180
|
1.RVTON floating oil
seal ring
has smoother processing surface and higher precision
VIDEO DESCRIPTION
PRODUCT APPLICATION
Floating seals / duo cone seals application
Widely used in Construction / Agriculture/ Coal mining / railway machinery equipment.
Eg: Track rollers, final drives, front idlers, rotary-cutters...
Widely used in Construction / Agriculture/ Coal mining / railway machinery equipment.
Eg: Track rollers, final drives, front idlers, rotary-cutters...
PACKING DETAILS
LOGISTICS &PAYMENT
WHY CHOOSE US
FAQ
Are you a factory?
Yes, we are a 20-years factory in Hubei Province, China.
Yes, we are a 20-years factory in Hubei Province, China.
- How do you control the quality?
We have passed ISO9001 certified and professional QC team, each seal is 100% inspected in every production process before export.
- How long to make shipment?
In three days with stocks, 15-30 days according to quantity.
- Can I buy samples to test?
Yes, we provide trial orders and sample orders for your quality evaluation. We look forward to doing more business with you in the future.
Welcome to contact us and visit us!
We have passed ISO9001 certified and professional QC team, each seal is 100% inspected in every production process before export.
- How long to make shipment?
In three days with stocks, 15-30 days according to quantity.
- Can I buy samples to test?
Yes, we provide trial orders and sample orders for your quality evaluation. We look forward to doing more business with you in the future.
Welcome to contact us and visit us!
