Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
H05VV-F
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BoRt
-
Model Number:
-
H05VV-F
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
Product Description

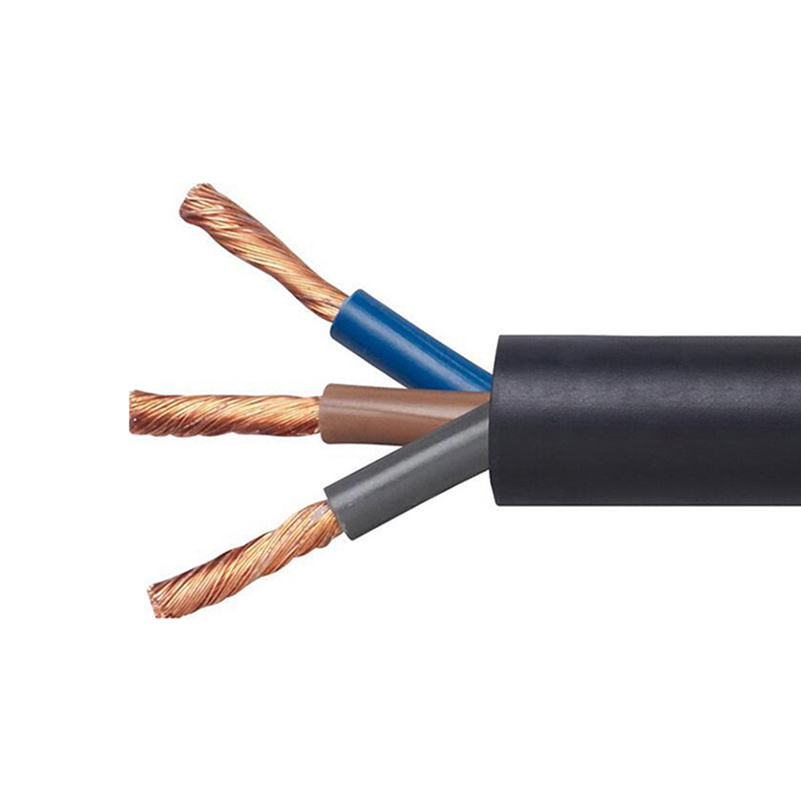

Multicore 3 Core Copper Conductor PVC Insulated Electrical Wire Flexible Power Cable H03VV-F H05VV-F
PRODUCT DESCRIPTION:
| Rated temperature:70ºC, Rated voltage:300/500V |
| According to: DIN VDE 0281 |
| Stranded, bare copper conductor |
| Colour-coded lead free PVC insulation |
| Lead free PVC jacket |
| Application: Power supply wire, suitable for indoor small electrical instrument |
| CONDUCTOR | INSULATION | JACKET |
MAX.COND.
RESISTANCE (Ω/km,20,DC) ℃ |
||||||
| STYLE |
SECTION
(mm2) |
UCTION
(No./mm) |
DIA.
(mm) |
(No.) |
NSULATION
THICKNESS (mm) |
O.D.
(mm) |
JACKET THICKNESS
(mm) |
O.D.(mm) | |
| H05VVH2-F | 0.75 | 24/0.20 | 1.13 | 2.00 | 0.61 | 2.35 | 0.80 | 3.95×6.30 | 26.00 |
| 1.00 | 32/0.20 | 1.31 | 2.00 | 0.60 | 2.50 | 0.80 | 4.10×6.60 | 19.50 | |
| H05VV-F | 0.75 | 24/0.20 | 1.13 | 2.00 | 0.61 | 2.35 | 0.80 | 6.30 | 26.00 |
| 3.00 | 0.60 | 2.35 | 0.82 | 6.70 | |||||
| 1.00 | 32/0.20 | 1.13 | 2.00 | 0.60 | 2.50 | 0.80 | 6.60 | 19.50 | |
| 3.00 | 0.60 | 2.50 | 0.86 | 7.10 | |||||
| 1.50 | 30/0.25 | 1.58 | 2.00 | 0.71 | 3.00 | 0.80 | 7.60 | 13.30 | |
| 3.00 | 0.71 | 3.00 | 0.92 | 8.30 | |||||
