Quick Details
-
Brand Name:
-
sikaifu
-
Product name:
-

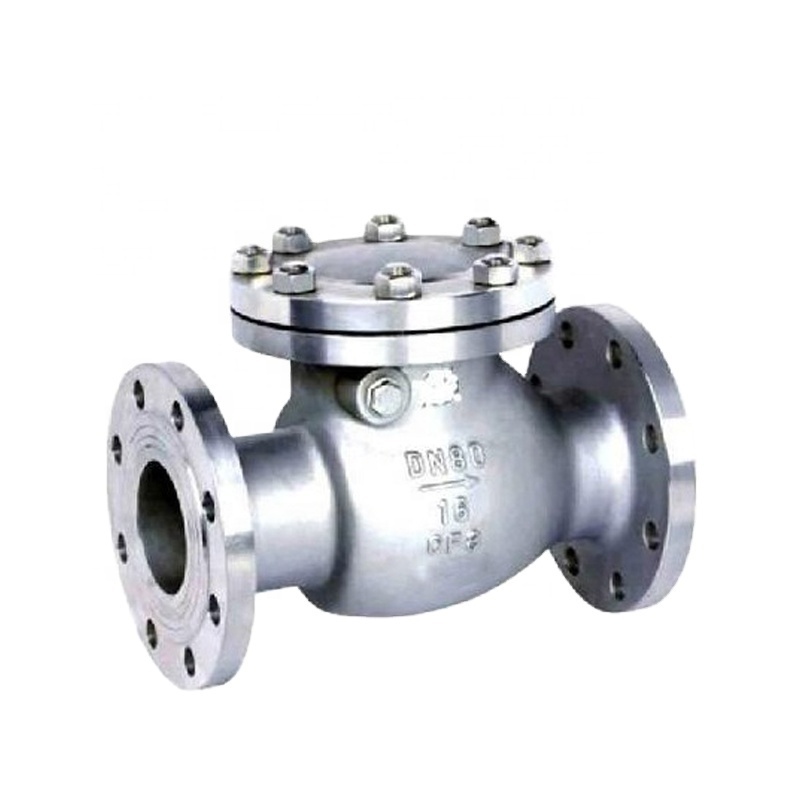

6 inch Stainless Steel flanged swing check valve
-
Valve Type:
-
swing check valve
-
Applicable medium:
-
water, oil, steam,gas
-
nominal pressure:
-
1.6mpa
-
Certificate:
-
ISO9001
-
Body material:
-
stainless steel
-
Color of swing check valve:
-
Grey
-
End connection:
-
Flange
-
Size:
-
DN15-DN200
-
Working Temperature:
-
-9~150℃
Quick Details
-
Port Size:
-
6"
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
DN150
-
Brand Name:
-
sikaifu
-
Product name:
-
6 inch Stainless Steel flanged swing check valve
-
Valve Type:
-
swing check valve
-
Applicable medium:
-
water, oil, steam,gas
-
nominal pressure:
-
1.6mpa
-
Certificate:
-
ISO9001
-
Body material:
-
stainless steel
-
Color of swing check valve:
-
Grey
-
End connection:
-
Flange
-
Size:
-
DN15-DN200
-
Working Temperature:
-
-9~150℃
- Swing check valve suitable for the pressure PN1.6 ~ 6.4MPa,
- the operating temperature of -29 ~ 550 ℃ of the oil, chemical, thermal power plants and other operating conditions of the pipeline.
- The applicable medium is: water, oil, steam and so on.
- Check Valves are fluid control valves used to restrict flow to only one direction
|
DN (mm) |
Outline Dimensions |
||||||||
|
PN2.5Mpa |
|||||||||
|
L1 |
L |
D |
D1 |
D2 |
b |
z-Φd |
H1 |
H |
|
|
15 |
130 |
- |
95 |
65 |
46 |
14 |
4-Φ14 |
77 |
- |
|
20 |
150 |
- |
105 |
75 |
56 |
16 |
4-Φ14 |
77 |
- |
|
25 |
160 |
160 |
115 |
85 |
65 |
16 |
4-Φ14 |
80 |
- |
|
32 |
180 |
180 |
135 |
100 |
76 |
18 |
4-Φ18 |
85 |
- |
|
40 |
200 |
200 |
145 |
125 |
84 |
18 |
4-Φ18 |
95 |
- |
|
50 |
230 |
230 |
160 |
145 |
99 |
20 |
4-Φ18 |
115 |
177 |
|
65 |
290 |
290 |
180 |
160 |
118 |
22 |
4-Φ18 |
140 |
192 |
|
80 |
310 |
310 |
195 |
190 |
132 |
24 |
4-Φ18 |
170 |
192 |
|
100 |
350 |
350 |
235 |
220 |
156 |
24 |
8-Φ22 |
200 |
217 |
|
125 |
400 |
400 |
270 |
250 |
184 |
26 |
8-Φ26 |
230 |
250 |
|
150 |
480 |
480 |
300 |
216 |
211 |
28 |
8-Φ26 |
255 |
270 |
|
200 |
600 |
550 |
360 |
310 |
274 |
30 |
12-Φ26 |
285 |
350 |
|
250 |
650 |
650 |
425 |
370 |
330 |
32 |
12-Φ30 |
- |
410 |
|
300 |
750 |
750 |
485 |
430 |
389 |
34 |
16-Φ30 |
- |
430 |
|
350 |
- |
- |
550 |
490 |
448 |
38 |
16-Φ33 |
- |
450 |
|
400 |
- |
- |
610 |
550 |
503 |
40 |
16-Φ36 |
- |
460 |
|
Parts Name |
Material |
|
BONNET |
CF8M |
|
GASKET |
PTFE |
|
BODY |
CF8M |
|
Disc |
CF8M |
|
Nut |
Stainless steel |
|
Washer |
SS304 |
|
Gasket |
SS304 |
|
Eyebolt Pin |
SS316 |
Packaging & Shipping ⇓
What is our shipping?
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time: 2-5 days for samples; 15-25 days for batch goods.
