10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery
10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery

10KW 30KW 50KW Off-Grid Solar Power System/Home Solar Panel Kit 3000W 5000W 10KW Sun Battery

FOB Reference Price: Get Latest Price
≥1 Sets
US $5000
≥10 Sets
US $4980
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Controller Type:
MPPT, PWM
Mounting Type:
Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
Certificate:
CE/RHOS, CE/ISO9001-2008
Warranty:
1-10 years, 1 Year
Place of Origin:
Guangdong, China
Brand Name:
SNADI
Model Number:
SYSTEM-10KW
Output Voltage (V):
110-240VAC
Output Frequency:
50/60hz
Work Time (h):
24 Hours
Solar system:
Solar System Home Power
Product name:
10kw Off-grid Solar Power System
Solar panel:
Mono
Inverter:
Pure Sine Wave
Battery:
Lead Acid Solar Battery
Controller:
MPPT Types
Function:
Power Support

Quick Details

Application:
Home
Solar Panel Type:
Monocrystalline Silicon, Polycrystalline Silicon
Battery Type:
Lead-Acid, Lithium Ion
Controller Type:
MPPT, PWM
Mounting Type:
Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
Certificate:
CE/RHOS, CE/ISO9001-2008
Warranty:
1-10 years, 1 Year
Place of Origin:
Guangdong, China
Brand Name:
SNADI
Model Number:
SYSTEM-10KW
Output Voltage (V):
110-240VAC
Output Frequency:
50/60hz
Work Time (h):
24 Hours
Solar system:
Solar System Home Power
Product name:
10kw Off-grid Solar Power System
Solar panel:
Mono
Inverter:
Pure Sine Wave
Battery:
Lead Acid Solar Battery
Controller:
MPPT Types
Function:
Power Support

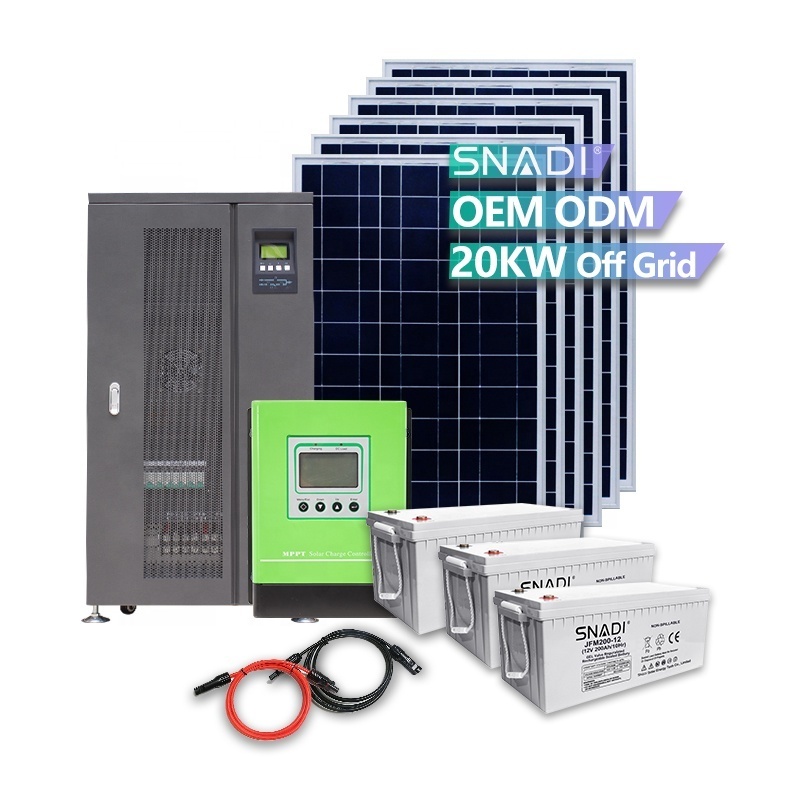

SNADI 10kw 20kw 30kw 50kw solar panel off grid kits for home using commercial IGBT inverter mppt controller solar complete set
The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter. The functions of each part are as follows:

(1) Photovoltaic modules : Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.

(2) Photovoltaic combiner box: The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.

(3) Solar controller: The solar controller provides the functions of the photovoltaic module to charge and discharge the battery, such as overcharge, overdischarge protection, temperature compensation, etc. Other additional functions such as light control switches and time control switches should be optional for the controller.

(4) Inverter: The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.

(5) Battery: Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
Home solar system
Target facilities
Personal residence
Application
Refrigerator, energy-saving lighting, TV, fan, street light
Advantage
The system structure is simple;
Very suitable for scattered rural areas;
Use more accurately because the user is a separate household.


Solar panels

- High efficiency A Grade mono cells, 300W
- 21% conversion efficiency
- Anti-reflection tempered glass
- Anodic aluminium-alloy frame
- MC4 junction box

I GBT inverter 10KW

- Double CPU intelligent control
- Settable the mains mode
- Controlled by intelligent fan
- Pure sine wave AC output
- LCD display
- A utomatic protection
- RS232 communication interface design

MPPT Solar charge controller

- MCU intelligent control
- LCD+LED display mode
- Kinds of battery protect data setting
- Complete protect
- H istory record and password protect function
- T ime display function


PV array combiner box

- Applicable for outdoor PV systems
- Number of PV input array: 6
- Max input pv current each array: 16A
- Max output current: 96A, 600Vdc
- Lighting Protection, it reduces solar cable
IP65


Battery

- Maintenance-free Gel Battery
- 12V/200Ah
- 54kg
- Silver-coated copper terminals, brass insert
maintenance-free

Mounting structure
- Pitched Roof, flat roof, tile roof, tin roof,
ground, vertical wall
- High Class Anodized Aluminum
- Wind Load: up to 130mph (60m/s)
- Snow Load: up to 30psf (1.4kN/m2)

Connection cable
- Solar panel cables 4mm2
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector
Item
Model
Description
Quantity
1
Solar panel
Mono 300w solar panel
24 PCS
2
IGBT solar inverter
10KW96VDC 220VAC 50HZ
1 PC
3
Solar charge controller
MPPT 96VDC 100A
1 PC
4
Pv combiner box
6 solar arrays input , 1 arrays output
1 PC
5
Battery
12V/200AH Gel battery
16 PCS
6
Solar bracket
Flat ground and roof for optional:one set can mount 3pcs panels
8 SETS
7
Solar cables
4mm 2solar cables, 200mm 2battery cables, 16mm 2electric cable
200Meters
8
Solar connector
MC4 solar connector, rated voltage:1000v
6 SETS
Q1 MOQ
A MOQ form our conpany is required 1 unit.

Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.

Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar
power system in accordance with customers' special requirements.

Q4 How long is your delivery time?
A Within 15 days.

Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
