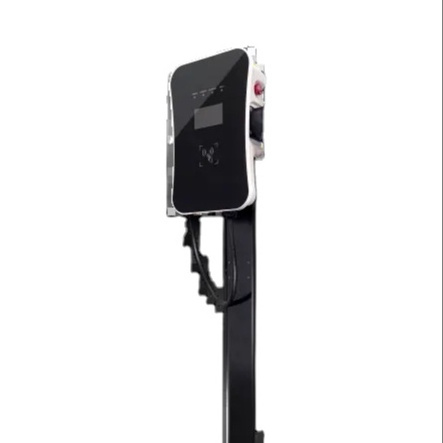

Adjustable Current App Control Menekes Type 2 Plug Three Phase 32a 22kw EV Electric Car Charger Wall-mounted Charging Stations
--Electric vehicle ev car charger with type 1 type 2 plug to charge all type of cars.(TESLA needs a adapter.)--LED Screen shows ev car charger electricity consumption, current, voltage, charging hours etc.
--Managing system available for adjusting current, observing charging data and history etc.
--Build in type B RCD leakage protection: detect all leakages from cars, safer than type a protection.
--App control: remotely start and stop ev cars charging, available to schedule charging at any time for certain hours.
--Self adjustable power to coordinate with ev cars' on board charger.
--customize logo, customize language and manual available for ev chargers.
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT
-
Special Features:
-
Wireless Charging, Remote Control, Type C, Flashlight, jump starter, RV Port, Cigar Lighter, Air Compressor, External Battery
-
Model Number:
-
M3W
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Chasun
-
Warranty:
-
20
-
Input Voltage:
-
220-400V
-
Charging Standards:
-
IEC 62196-2 (Type 2 Mennekes), SAE J1772(Type 1)
Quick Details
-
Power Source:
-
AC Adaptor, Car
-
Battery Type:
-
LiFePO4
-
Inverter Type:
-
Modified Sine Wave
-
Controller Type:
-
MPPT
-
Special Features:
-
Wireless Charging, Remote Control, Type C, Flashlight, jump starter, RV Port, Cigar Lighter, Air Compressor, External Battery
-
Model Number:
-
M3W
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Chasun
-
Warranty:
-
20
-
Input Voltage:
-
220-400V
-
Charging Standards:
-
IEC 62196-2 (Type 2 Mennekes), SAE J1772(Type 1)
PRODUCT OVERVIEW
Product Description
Specification
|
General Information
|
|
|
|
|
||||
|
Product Name
|
7kw 11kw 22kw Wallbox AC Fast Electric EV Charging Station EV Car Charger
|
|
|
|
||||
|
Standard
|
IEC Standard
|
|
|
|
||||
|
Certificates
|
CE, ROHS, REACH
|
|
|
|
||||
|
Model Number
|
M3W132EN
|
|
M3W316EN
|
M3W332EN
|
||||
|
Rated AC Voltage Power Input
|
220V ±10%
|
|
380V ±10%
|
380V ±10%
|
||||
|
Rated AC Power Output
|
7kw/32amp
|
|
11kw/16amp
|
22kw/32amp
|
||||
|
Current Adjustable
|
6a ~32a
|
|
6a ~16a
|
6a ~32a
|
||||
|
Rated Frequency
|
50/60Hz
|
|
|
|
||||
|
Charging Connector Type
|
IEC 62196-2 (Type 2/Mennekes) plug
|
|
|
|
||||
|
EVSE Charging Modes
|
Mode 3 Charging
|
|
|
|
||||
|
EVSE Connecting Type
|
Case C, Case B available
|
|
|
|
||||
|
Connector Type
|
SAE J1772 (Type 1)
|
|
IEC 62196-2 (Type 2)
|
|
||||
|
User Interface & Control
|
|
|
|
|
||||
|
Charging Control |
1. Plug in and out for start and stop charging
|
|
|
|
||||
|
|
2. Plug in, swipe RFID card to start and stop charging, then plug out
|
|
|
|
||||
|
|
3. App control
|
|
|
|
||||
|
Charging Data Monitoring: Power consumption, current, voltage etc.
|
1. From screen
|
|
|
|
||||
|
|
2. From online managing system
|
|
|
|
||||
|
|
3. From app
|
|
|
|
||||
|
Adjusting Current |
1. From online managing system
|
|
|
|
||||
|
|
2. From app
|
|
|
|
||||
|
Screen Display
|
4.3-inch LCD Screen
|
|
|
|
||||
|
LED Indicators
|
4 LED indicators-Power/Connect/Charging/Fault
|
|
|
|
||||
|
Internet Connection |
1.Ethernet/LAN (RJ-45)
|
|
|
|
||||
|
|
2. 2.4 GHz Wifi
|
|
|
|
||||
|
|
3. LTE Category 4(4G optional)/SIM card module
|
|
|
|
||||
|
External Communication |
1. OCPP 1.6J (optional)
|
|
|
|
||||
|
|
2. RS 485 (optional)
|
|
|
|
||||
|
Operational Ratings
|
|
|
|
|
||||
|
IP Ratings
|
CE certified IP54, suitable for indoor and outdoor application
|
|
|
|
||||
|
Storage Temperature
|
-40 to 75℃ （-40 to 167℉) ambient
|
|
|
|
||||
|
Operating Temperature
|
-30 to 55℃ （-22 to 131℉) ambient
|
|
|
|
||||
|
Operating Humidity
|
Up to 95% non-condensing
|
|
|
|
||||
|
Altitude
|
≤2000m
|
|
|
|
||||
|
Protection：Type B RCD
|
|
|
|
|
||||
|
Over Voltage Protection
|
Yes
|
|
Under Voltage Protection
|
Yes
|
||||
|
Over Load Protection
|
Yes
|
|
Short Circuit Protection
|
Yes
|
||||
|
Earth Leakage Protection
|
Yes
|
|
Ground Protection
|
Yes
|
||||
|
Over-temp Protection
|
Yes
|
|
Surge Protection
|
Yes
|
||||
|
Wallbox Mechanical
|
|
|
|
|
||||
|
Dimension (H x W x D, mm)
|
410 x 260 x 164
|
|
|
|
||||
|
Weight
|
1-phase＜10kg; 3-phase＜12kg
|
|
|
|
||||
|
Charging Cable Length
|
5m，7m, or Customize Length
|
|
|
|
||||
|
Enclosure Material
|
Front-Panel: Tempered Glass; Back-cover: Metal Plate
|
|
|
|
||||
