- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1KG/5KG/15KG/20KG
-
Flux Content:
-
Normal Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOERDE
-
Model Number:
-
AWS ER70S-6
-
Application:
-
Welding Construction
-
Certificate:
-
CE ISO TUV
-
Standard:
-
DIN SG2
-
OEM:
-
Accept OEM
-
Package:
-
Carton
-
Product name:
-
Co2 MIG Welding Wire copper scrap 0.8mm ER70S-6 SG2
-
Color:
-
Copper Bright
-
Type:
-
Gas Shield Welding Wire
-
Spool materials:
-
Plastic Spoo L(Black)
-
Samples:
-
Free
-
Feature:
-
Stable Feasibility
Quick Details
-
Material:
-
Copper/Copper Alloy
-
Diameter:
-
0.8mm 1.0mm 1.2mm
-
Melting Point:
-
2700
-
Weight:
-
1KG/5KG/15KG/20KG
-
Flux Content:
-
Normal Standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WOERDE
-
Model Number:
-
AWS ER70S-6
-
Application:
-
Welding Construction
-
Certificate:
-
CE ISO TUV
-
Standard:
-
DIN SG2
-
OEM:
-
Accept OEM
-
Package:
-
Carton
-
Product name:
-
Co2 MIG Welding Wire copper scrap 0.8mm ER70S-6 SG2
-
Color:
-
Copper Bright
-
Type:
-
Gas Shield Welding Wire
-
Spool materials:
-
Plastic Spoo L(Black)
-
Samples:
-
Free
-
Feature:
-
Stable Feasibility

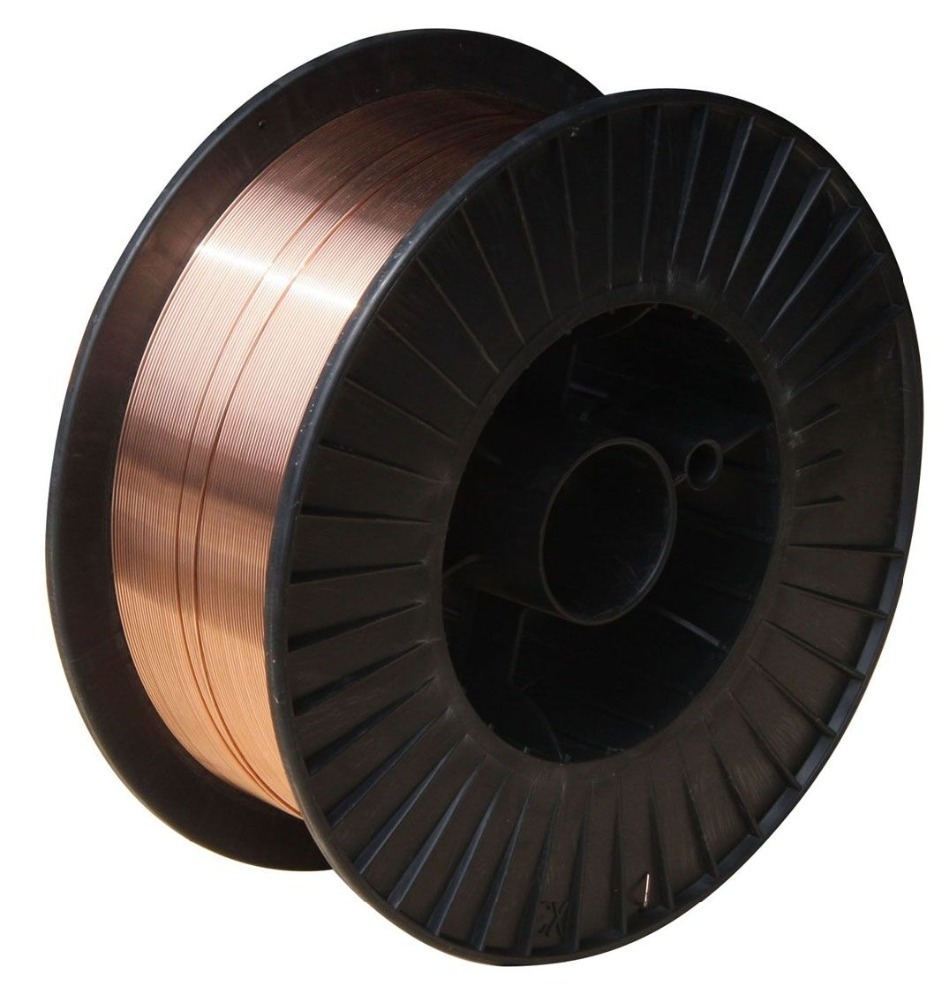

Co2 MIG Welding Wire copper scrap 0.8mm ER70S-6 SG2
ER70S-6 contains high levels of manganese and silicon for stronger deoxidizing power where stringent cleaning procedures are not possible. This wire has been designed to provide X-ray quality porosity-free welds and the highest tensile strength (as welded) of the plain carbon steel wires. The high silicon content increases the fluidity of the weld pool, creating a smoother bead appearance and resulting in minimal post-weld grinding. ER70S-6 is excellent where poor fit-ups or rusty and oily plates may be used.
Applications:
Construction work, tanks, truck bodies, farm implements, pipes, steel castings or forgings, shaft build-ups and general shop fabrications.
| Chemical composition of welding wire(%) | |||||||
| C | Mn | Si | P | S | Cr | Ni | Cu |
| 0.06~0.15 | 1.40~1.85 | 0.80~1.15 | ≤0.025 | ≤0.035 | - | - | ≤0.50 |
|
Mechanical Properties of Deposited Metal |
|||
| Yield strength (Mpa) | Tensile strength (Mpa) | Elongation (%) | AKV (J) |
| ≥420 | ≥500 | ≥22 | ≥27(-30℃) |
| Electeical Property | ||||
| Wire Size (mm) | φ0.8 | φ1.0 | φ1.2 | φ1.6 |
| Welding current(A) | 40~140 | 50~220 | 80~350 | 120~550 |
Feature:
1.Low welding costs.
2.High productivity and low electricity consumption.
3.Easy to operate.
4. All position welding.
5.Very low hydrogen content in the weld and lower nitrogen content.
6.Excellent crack-resistance.
7.Little deformation after welding.
8.Wide applicability. Suitable for welding thin, medium and thick plates.
Usually Packing Size:
| Wire Dia. (mm) | Spool Dia. (mm) | Net Weight (kg/spool) |
|
0.80mm / 0.90mm / 1.00mm / 1.20mm / 1.60mm |
D100mm | 1kg |
| D200mm | 5-10kg | |
|
D270mm (D300) |
15-20kg | |
| K300mm |
250kg |
Packing Process:
plastic spool + layer winding welding wire + rust-proof paper + thermal shrinking film + OEM carton + pallet.
5kg/spool/carton, 288 cartons/ pallet, and 20 pallets filled in a 20 feet container
15kg/spool/carton,72 cartons/ pallet, and 20 pallets filled in a 20 feet container
20kg/spool/carton,66 cartons/ pallet, and 20 pallets filled in a 20 feet container
Also we can do according to your personal request for MIG welding wire 1.2mm
1. Free sample is available
2. OEM service is available
3. High quality and professional service.
4. Much more competitive price.
5. On-time delivery
