Quick Details
-
Brand Name:
-
KIET
-
Year:
-
2020
-
Voltage:
-
380 V
-
Dimension(L*W*H):
-
-
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
2.2 kw
-
Warranty:
-
1 Year
-
Power Source:
-
Hydraulic
-
Product name:
-
50 Ton VLP Type Mobile Cylinder Hydraulic Press
-
Brand:
-
KIET Hydraulic Press
-
Capacity:
-
10-200 T
-
Working Pressure:
-
70 MPa
-
Cylinder Stroke:
-
155-333 mm
-
Weight:
-
49-1992 kg
-
Packing:
-
Plywood Case
-
Color:
-
Yellow
-
Feature:
-
High Efficent
-
Certification:
-
ISO9001:2008 CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Return Force (kN):
-
10000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KIET
-
Year:
-
2020
-
Voltage:
-
380 V
-
Dimension(L*W*H):
-
-
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
2.2 kw
-
Warranty:
-
1 Year
-
Power Source:
-
Hydraulic
-
Product name:
-
50 Ton VLP Type Mobile Cylinder Hydraulic Press
-
Brand:
-
KIET Hydraulic Press
-
Capacity:
-
10-200 T
-
Working Pressure:
-
70 MPa
-
Cylinder Stroke:
-
155-333 mm
-
Weight:
-
49-1992 kg
-
Packing:
-
Plywood Case
-
Color:
-
Yellow
-
Feature:
-
High Efficent
-
Certification:
-
ISO9001:2008 CE

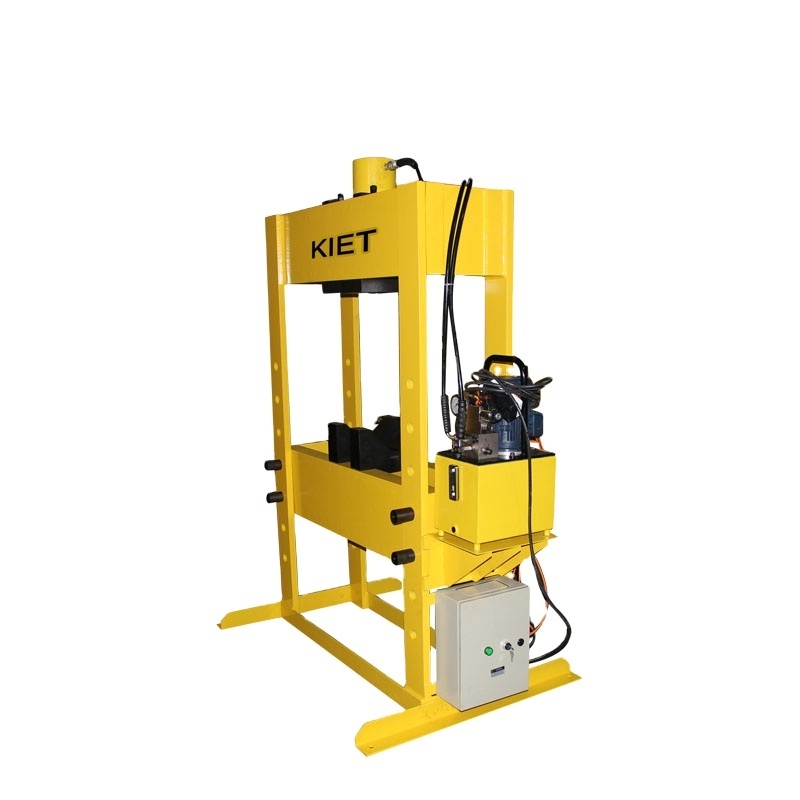

50 Ton VLP Type Mobile Cylinder Hydraulic Press
Features:
1. Heavy-duty welded frame to enhance the strength and durability.
2.Standard power sources and hydraulic cylinders to ensure high performance and barrier-free operation.
3. All Presses are equipped with heavy-duty rubber hose to ensurelong service life.
4. 25T, 50T and 100T Presses are equipped with turbine and vortex rod lifting devices and can be safely and easily adjusted;
5. Max working pressure is 70mpa.
Application:
Product Parameter
| Model | Capacity |
Max.Daylight (mm) |
Cylinder Stroke |
Dimensions (mm) |
Weight | ||||||||||||||
| (T) | Vertical | Horizontal | (mm) | A | B | C | D | E | F | G | H | J | K | M | N | O | P | (kg) | |
| KET-VLP-106P142 | 10 | 430 | 435 | 155 | 110 | 80 | / | / | 435 | / | 542 | 620 | 748 | 430 | / | 80 | / | / | 49 |
| KET-VLP-106PAT1 | 54 | ||||||||||||||||||
| KET-VLP-256P392 | 25 | 1225 | 510 | 159 | 260 | 140 | 510 | 32 | 510 | 630 | 700 | 1622 | 1740 | 370 | 140 | 212 | 1070 | 122 | 165 |
| KET-VLP-256PAT1 | 610 | 323 | 170 | ||||||||||||||||
| KET-VLP-506P802 | 50 | 993 | 990 | 159 | 310 | 240 | / | 32 | 990 | 1190 | 1390 | 1995 | / |
210~ 940 |
/ | 540 | 1290 | 150 | 595 |
| KET-VLP-506ZE5S | 155 | 675 | |||||||||||||||||
| KET-VLP-506ZE5C | 155 | 660 | |||||||||||||||||
| KET-VLP-5013ZE5S | 333 | 700 | |||||||||||||||||
| KET-VLP-1006ZE3C | 100 | 989 | 990 | 168 | 400 | 340 | 560 | 40 | 990 | 1240 | 1400 | 1879 | 1885 | 239 | 425 | 540 | 1290 | 150 | 962 |
| KET-VLP-1006ZE3S | 168 | 970 | |||||||||||||||||
| KET-VLP-10013ZE3S | 333 | 2050 | 993 | ||||||||||||||||
| KET-VLP-20013ZE4S | 200 | 1340 | 1220 | 333 | 553 | 233 | 560 | 76 | 1220 | 1620 | 1740 | 2285 | 2370 | 377 | 425 | 453 | 1415 | 254 | 1992 |
