Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YongFengSheng
-
Model Number:
-
cmsGF-60-open
-
Speed:
-
1500rpm,1800rpm
-
Gensets Model:
-
GF-60
-
Gensets Dimensions:
-
1800 * 700 * 1260 mm
-
Gensets Weight:
-
1200kg
-
Fuel consumption:
-
209g/kW.h
-
Noise(LP7m):
-
95dB(A)
-
Engine Code:
-
4BTA3.9-G2
-
Engine Cylinder:
-
4/L
-
Bore and Stroke:
-
102 * 120 mm
-
Copression Ratio:
-
14.5 : 1
-
Alternator Code:
-
TFW-60
-
Certification:
-
MSC/BST/ISET/CE/ISO
Quick Details
-
Rated Voltage:
-
400V,230V,380V,220V,110V
-
Rated Current:
-
90A
-
Frequency:
-
50Hz,60Hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YongFengSheng
-
Model Number:
-
cmsGF-60-open
-
Speed:
-
1500rpm,1800rpm
-
Gensets Model:
-
GF-60
-
Gensets Dimensions:
-
1800 * 700 * 1260 mm
-
Gensets Weight:
-
1200kg
-
Fuel consumption:
-
209g/kW.h
-
Noise(LP7m):
-
95dB(A)
-
Engine Code:
-
4BTA3.9-G2
-
Engine Cylinder:
-
4/L
-
Bore and Stroke:
-
102 * 120 mm
-
Copression Ratio:
-
14.5 : 1
-
Alternator Code:
-
TFW-60
-
Certification:
-
MSC/BST/ISET/CE/ISO
Parameters

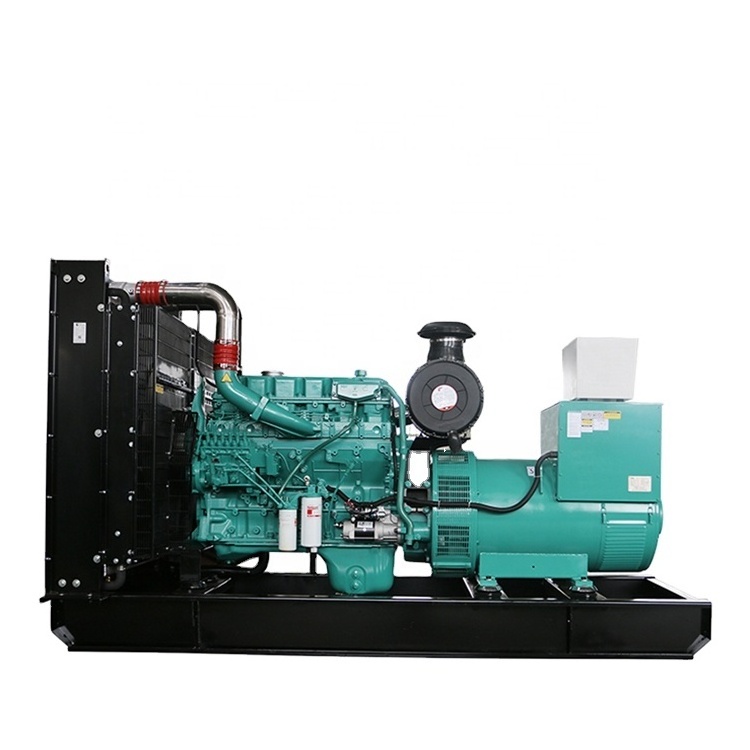

| POWERED BY CUMMINS ENGINE YongFengSheng | |||
| GEN-SETS PARAMETERS: | |||
| Model | GF-60 | Steady state voltage regulation(%) | ≤±1 |
| Output Power | 50KW,60KVA | Voltage fluctuation rate(%) | ≤±0.5 |
| Power Factor |
COSΦ=0.8(LAG) |
Transient voltage regulation (%) | +20~-15 |
| Output Voltage | 400V/230V/380V/220/110V | Voltage settling time(s) | ≤1 |
| Output Current | 90A | Steady State rate adjustment (%) | ≤±1 |
| Rated Frequency | 50/60Hz | Frequency fluctuation rate(%) | ≤±0.5 |
| Rated Speed | 1500/1800rpm | Transient frequency regulation(%) | +10~-7 |
| Fuel | (Standard)0# | Frequency fluctuation rate(S) | ≤3 |
|
Dimensions (L×W×H mm) |
1800 * 700 * 1260 mm | Fuel consumption(100%load) | 209g/kW.h |
| Weight | 1200kg | Noise(LP7m) | 95dB(A) |
| ENGINE PARAMETERS: | |||
| Brand | CUMMINS | Cooling Mode | Water cooling |
| Code | 4BTA3.9-G2 | Oil drive | Direct Injection |
| Cylinder | 4/L | speed adjustment mode | electrical speed governors |
| Bore and Stroke | 102 * 120 mm | intake type | naturally aspirated |
| Copression Ratio | 14.5 : 1 | overload capacity | 110% |
| Starting Mode | DC24V Electric start | Speed | 1500/1800rpm |
| ALTERNATOR PARAMETERS: | |||
| Brand/Producing Area | YongFengSheng | IP Code | IP22/IP23 |
| Code | TFW-60 | mode of connection |
three-phase four-wire or Y mode |
| Rated Power | 50KW,60KVA | accommodation mode | AVR |
| Rated Voltage | 400V/230V/380V/220/110V | output frequency | 50/60Hz |
| insulation grade | H | output factor | COSΦ=0.8 |
