dia9mm 6mm 3mm angle 5degrees 135degrees optical glass Powell prism lens

dia9mm 6mm 3mm angle 5degrees 135degrees optical glass Powell prism lens

FOB Reference Price: Get Latest Price

≥5 Pieces

US $40

≥10 Pieces

US $30

≥100 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jilin, China

Brand Name:: Juncheng

Model Number:: Customization

Dimension:: 1.0mm-200.0 mm

Surface quality:: 40-20

Focus Length:: 1mm-100000mm

Focal Length Tolerance:: ±1%

Dimension Tolerance:: +0.0/-0.1mm

Thickness Tolerance:: ±0.1mm

Surface Accuracy:: 1/4

Centration:: <3'

Clear Aperture:: >90%

Bevelling:: <0.2x45°

Quick Details

Usage:: Optical

Structure:: ball

Shape:: Spherical

Place of Origin:: Jilin, China

Brand Name:: Juncheng

Model Number:: Customization

Dimension:: 1.0mm-200.0 mm

Surface quality:: 40-20

Focus Length:: 1mm-100000mm

Focal Length Tolerance:: ±1%

Dimension Tolerance:: +0.0/-0.1mm

Thickness Tolerance:: ±0.1mm

Surface Accuracy:: 1/4

Centration:: <3'

Clear Aperture:: >90%

Bevelling:: <0.2x45°

Product Description

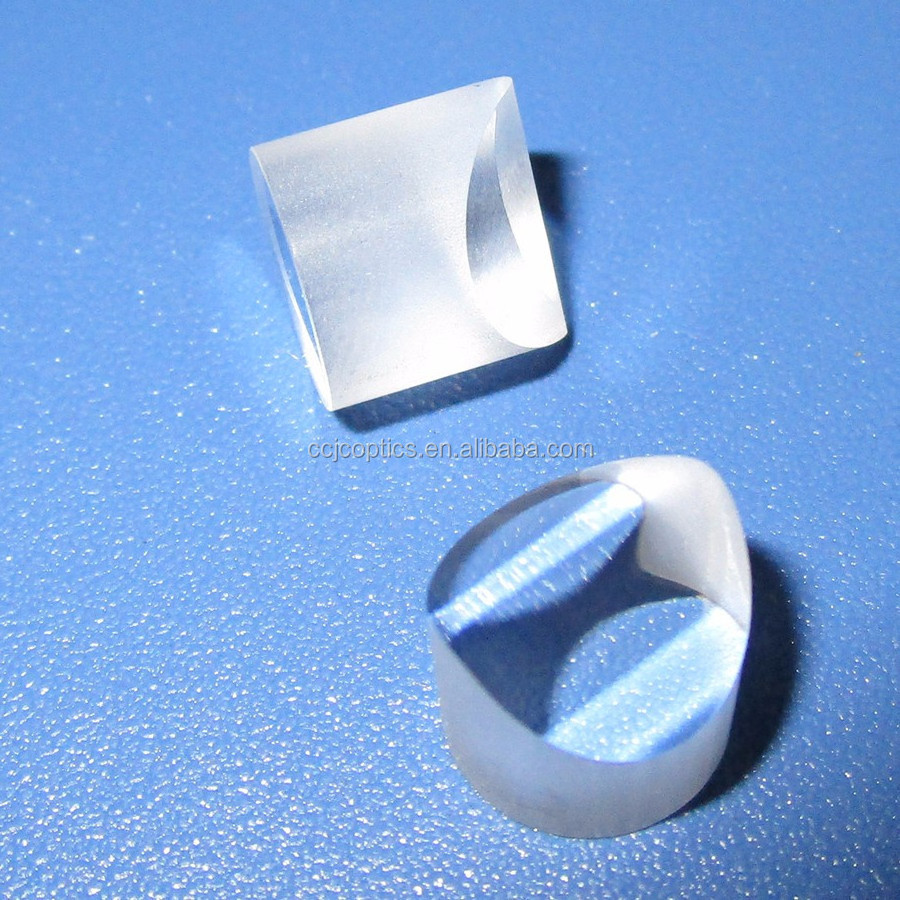

Powell Prism lenses

The Powell lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line. By using Powell Prism Lens, you will get more even energy distribution along the laser line than using the rod lens and lens.

Parameters:
Material: K9 (BK7), Quartz Fused silica
Dia: 4mm-30mm or custom
Height: 4mm~20mm
Beam diameter: 0.8mm~5mm
Fan angle: 1~135deg
Coating: upon customer request

Item	Powell Prism Lens
Material	BK7, JGS1, UV Fused Silica, Sapphire etc
Dimension	4mm-80mm
Dimension tolerance	±0.05mm
Surface quality	20-10~60-40
Surface flatness	1/4~1/8
Clear aperture	above 90%
Coating	AR @200-2000nm
Application	industries or other laser applications.

Our Service

Optical Design

There are eight professors in our scientific research team. All of them come from Chinese Academy of Sciences, Changchun Institute of Precision Machinery and Physics. We can supply design Optical System according to your demand.

Processing & Testing

We have more than50 advanced milling grinding, polishing, plating equipments from The Unite States and Japan. And also introduced the ZYGO horizontal laser interferometer, AK100 horizontal laser interferometer, LAMBDA950 spectrophotometer, the focal length meter and other test equipments.

Optical Coating

We are coat from 0.2um to 20um. Including AR coating, high reflect film, the splitting film, laser crystal film, IR film, UV film and Optical fiber film etc. Especially in the laser, the frequency doubling crystal, IR crystal, and UV band coating we have huge advantage.
