Quick Details
-
Brand Name:
-
WORKMATES
-
Fork Length:
-
470MM/600MM/650MM
-
Fork Width:
-
75MM/100MM
-
Overall Dimensions:
-
2000*1100*650MM
-
Weight (KG):
-
77 kg
-
Product Name:
-
Mini Manual Pallet Stacker
-
Type:
-
Handling Equipment
-
Power type:
-
Manual Hydraulic Pump
-
Key words:
-
Mini Hand Stacker
-
Loading Capacity:
-
200-400kg
-
Color:
-
Customer Demanded
-
Feature:
-
High Efficiency
-
After-sales Service Provided:
-
Online Technical Video Support
-
Application:
-
Warehouse Material Handling
-
Lifting height:
-
0.9M/1.2M/1.6M
Quick Details
-
Min. Lifting Height:
-
100MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WORKMATES
-
Fork Length:
-
470MM/600MM/650MM
-
Fork Width:
-
75MM/100MM
-
Overall Dimensions:
-
2000*1100*650MM
-
Weight (KG):
-
77 kg
-
Product Name:
-
Mini Manual Pallet Stacker
-
Type:
-
Handling Equipment
-
Power type:
-
Manual Hydraulic Pump
-
Key words:
-
Mini Hand Stacker
-
Loading Capacity:
-
200-400kg
-
Color:
-
Customer Demanded
-
Feature:
-
High Efficiency
-
After-sales Service Provided:
-
Online Technical Video Support
-
Application:
-
Warehouse Material Handling
-
Lifting height:
-
0.9M/1.2M/1.6M
Product Description
Product Features:

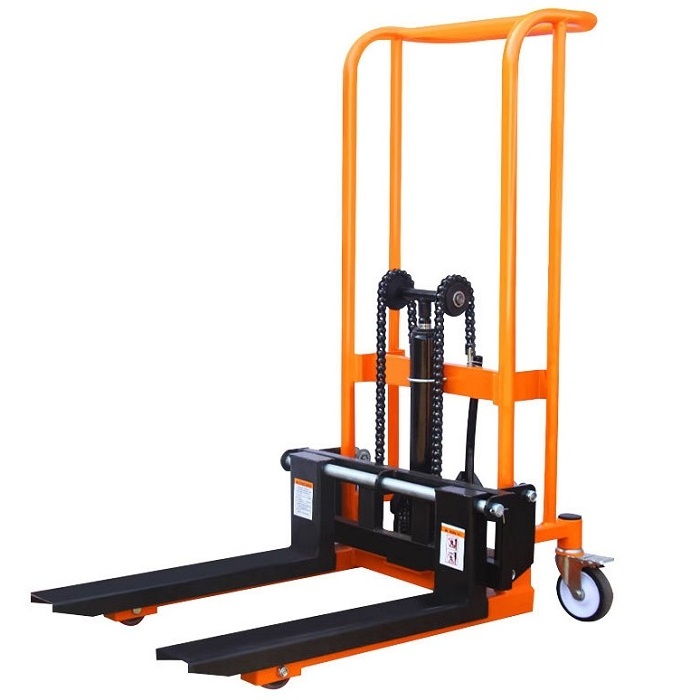

Mini manual lifting car is suitable for handling small goods in short distance, with simple operation, easy to use, small turning radius and so on.
1. High strength steel door frame, cold bending forming, make the door frame stronger and safer.
2. Advanced spray process is adopted to improve the appearance of products and increase the durability of products.
3. Dexterous transportation, flexible operation and small turning radius.
4. Mechanical switch, speed can be controlled, flexible operation.
2. Advanced spray process is adopted to improve the appearance of products and increase the durability of products.
3. Dexterous transportation, flexible operation and small turning radius.
4. Mechanical switch, speed can be controlled, flexible operation.
|
Product Model
|
Model A
|
Model B
|
Model C
|
Model E
|
Model F
|
|
Rated Load Capacity
|
200KG
|
260KG
|
400KG
|
400KG
|
400KG
|
|
Lifting Height
|
10-90CM
|
10-120CM
|
10-90CM
|
10-120CM
|
10-160CM
|
|
Overall Height
|
125CM
|
163CM
|
125CM
|
148CM
|
190CM
|
|
Overall Width
|
73CM
|
75CM
|
63.5CM
|
63.5CM
|
63.5CM
|
|
Overall Length
|
75CM
|
90CM
|
105CM
|
105CM
|
105CM
|
|
Fork Width
|
7.5CM
|
7.5CM
|
10CM
|
10CM
|
10CM
|
|
Fork Length
|
47CM
|
60CM
|
65CM
|
65CM
|
65CM
|
|
Fork Inner Width
|
36CM
|
36CM
|
38CM
|
38CM
|
38CM
|
|
Fork Outter Width
|
51CM
|
51CM
|
58CM
|
58CM
|
58CM
|
|
Self Weight
|
40KG
|
55KG
|
52KG
|
66KG
|
77 KG
|
