Quick Details
-
Power:
-
24V/3.3KW
-
Min. Lifting Height:
-
90mm
-
Table Size:
-
2.27m*1.12m
-
Overall Dimensions:
-
2430mm*1150mm*1910mm
-
Weight:
-
2468 kg
-
Marketing Type:
-
New Product
-
Color:
-
Green/Red/Yellow/Customized
-
Tire:
-
PU Wheel
-
Turning radius:
-
2200mm
-
Load weight:
-
320kg
-
Load height:
-
5.8m-11.8m
-
Battery Cpacity:
-
24V/30A
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China, CN;JIA
-
Brand Name:
-
KAD
-
Power:
-
24V/3.3KW
-
Min. Lifting Height:
-
90mm
-
Table Size:
-
2.27m*1.12m
-
Overall Dimensions:
-
2430mm*1150mm*1910mm
-
Weight:
-
2468 kg
-
Marketing Type:
-
New Product
-
Color:
-
Green/Red/Yellow/Customized
-
Tire:
-
PU Wheel
-
Turning radius:
-
2200mm
-
Load weight:
-
320kg
-
Load height:
-
5.8m-11.8m
-
Battery Cpacity:
-
24V/30A
Product Description

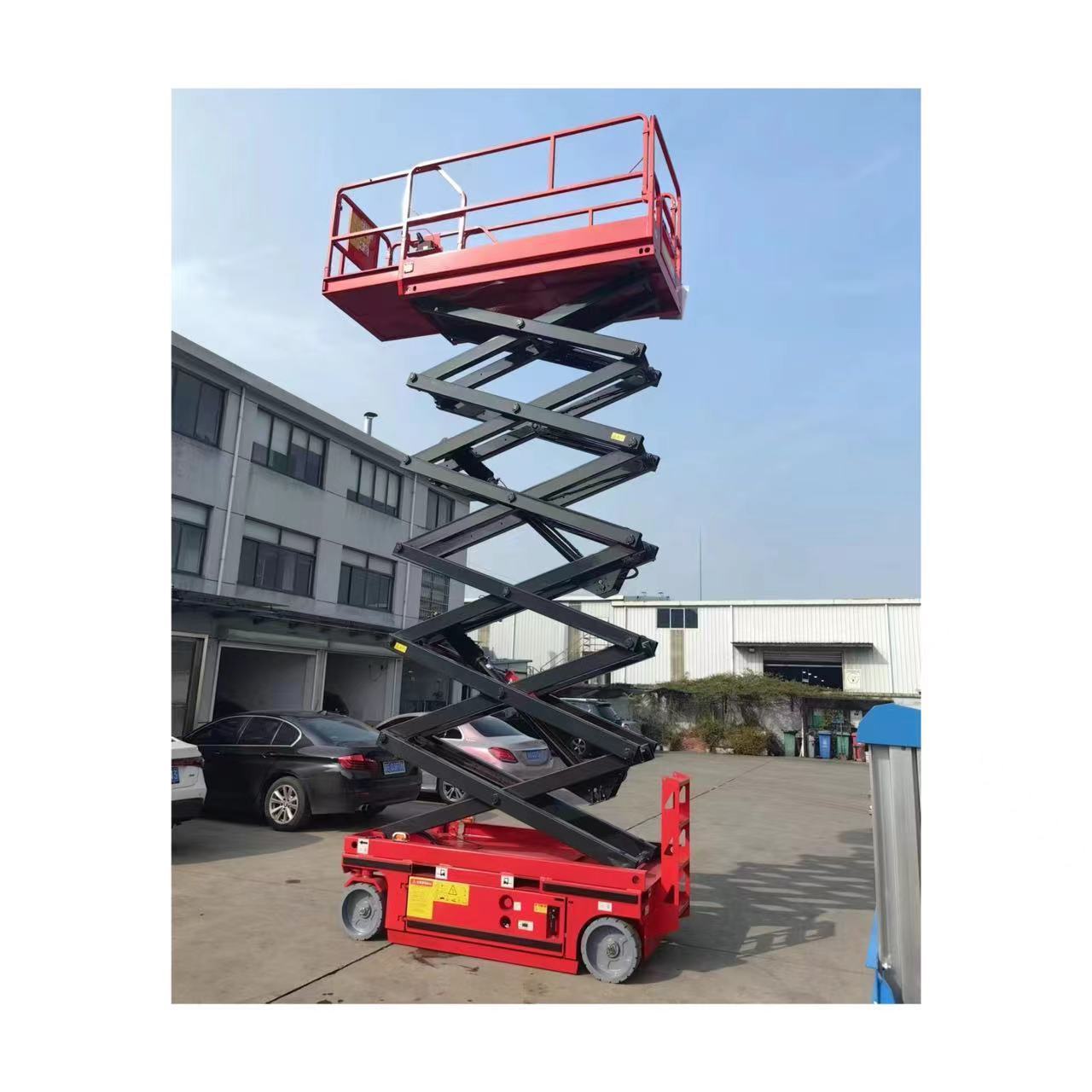

KAD10m 320Kg Electric mobile scissor hydraulic lifting platform for aerial work Mobile platforms
Self-propelled double mast scissor lift is a multi-functional lifting equipment, which has a wide range of applications and is used in different occasions such as various construction sites, factories and warehouses. Its main functions include cargo loading and unloading, maintenance, aerial work, equipment installation and so on.
Due to its flexibility and stability, it can easily reach all corners of the building for aerial work, such as spraying of external walls, cleaning of glass curtain walls, and maintenance of buildings. In addition, it is often used in the erection and dismantling process of buildings, providing a stable and safe working platform for workers, which greatly improves work efficiency.
|
Model
|
MX580S
|
MX600SN
|
MX800SN
|
MX800S
|
MX1000S
|
MX1200S
|
|
S.W.L
|
230kg
|
230kg
|
230kg
|
450kg
|
320kg
|
320kg
|
|
S.W.L on Extension
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
|
Max.Workers Number
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Working height max
|
7.8m
|
8m
|
10m
|
10m
|
12m
|
13.8m
|
|
Platform height max
|
5.8m
|
6m
|
8m
|
8m
|
10m
|
11.8m
|
|
Overall Length
|
1.81m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
|
Overall Width
|
0.76m
|
0.81m
|
0.81m
|
1.15m
|
1.15m
|
1.15m
|
|
Overall Height( Rails Up)
|
2.16m
|
2.18m
|
2.3m
|
2.31m
|
2.42m
|
2.55m
|
|
Overall Height( Rails Down)
|
1.82m
|
1.85m
|
1.87m
|
1.76m
|
1.91m
|
2.03m
|
|
Platform size(LxW)
|
1.67m*0.74m
|
2.27m*0.81m
|
2.27m*0.81m
|
2.27m*1.12m
|
2.27m*1.12m
|
2.27m*1.12m
|
|
Platform extension size
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
|
Ground Clearance ( Stowed)
|
0.09m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
|
Ground Clearance(Raised)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
|
Wheelbase
|
1.36m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
|
Turning radius (inside)
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
|
Turning radius (outside)
|
1.64m
|
2.10m
|
2.10m
|
2.20m
|
2.20m
|
2.20m
|
|
Lift/Drive Motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
|
Travel Speed( Stowed)
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
|
Travel Speed( Raised)
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
|
Raise/Lower time
|
18/22sec
|
35/25sec
|
40/30sec
|
40/30sec
|
60/40sec
|
70/45sec
|
|
Power source
|
4*6V/210Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/240Ah
|
4*6V/260Ah
|
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
|
Gradeability
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
|
Maximum Working Slope
|
1.5°/3°
|
2°/3°
|
1.5°/3°
|
2°/3°
|
2°/3°
|
1.5°/3°
|
|
Tire size
|
305*100
|
380*129
|
380*129
|
380*129
|
380*129
|
380*129
|
|
Weight
|
1400kg
|
1945kg
|
2100kg
|
2175kg
|
2468kg
|
2830kg
|
Main Features
STANDARD CONFIGURATIONS 1.Proportional Control 2.Inter-lock door on the platform 3.Extension Platform 4.Automatic Brake System 5.Traceless Tyre 6.4*2 Driving 7.Buzzer 8.Emergency Stop Button 9.Fault Diagnosis System 10.Automatic Pothole Protection OPTIONAL CONFIGURATIONS 11.Airway Tube to the Platform 12.Platform Working Light
