- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LENC
-
Standard or Nonstandard:
-
Standard
-
Product name:
-

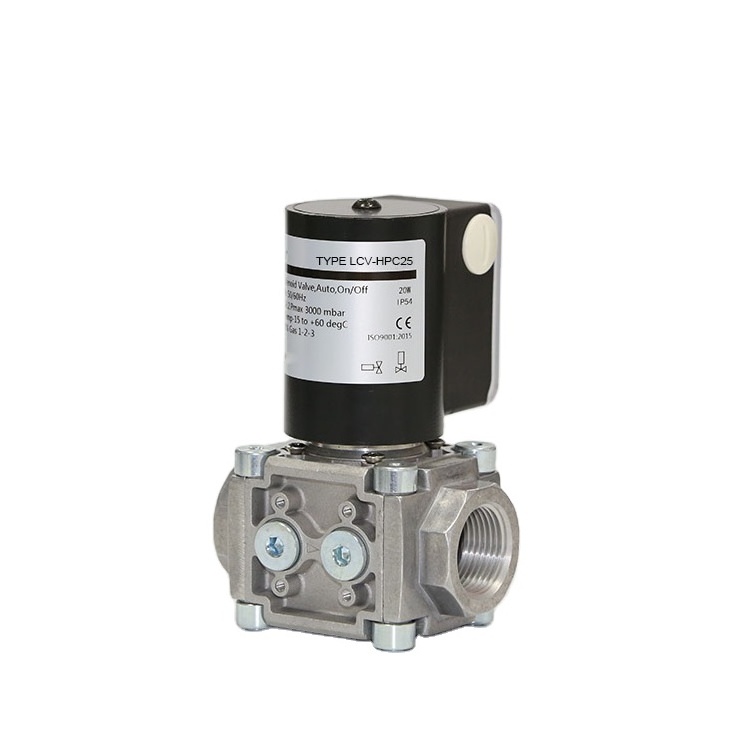

Normally closed direct-acting high pressure solenoid valve
-
Body material:
-
Aluminum Alloy
-
Connection type:
-
Thread Interface
-
Seal Material:
-
Nitrile Rubber
-
Standard:
-
Meet EN161:2002 standard Meet UK and European gas standards
-
Applicable medium:
-
Natural gas, Methane, and Liquefied petroleum gas.
-
OEM:
-
Yes
-
Warranty:
-
18 Months
-
Type:
-
Normal Colsed, SOLENOID VALVES
Quick Details
-
Port Size:
-
RP 1''
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
LCV-HPC25L
-
Brand Name:
-
LENC
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
Normally closed direct-acting high pressure solenoid valve
-
Body material:
-
Aluminum Alloy
-
Connection type:
-
Thread Interface
-
Seal Material:
-
Nitrile Rubber
-
Standard:
-
Meet EN161:2002 standard Meet UK and European gas standards
-
Applicable medium:
-
Natural gas, Methane, and Liquefied petroleum gas.
-
OEM:
-
Yes
-
Warranty:
-
18 Months
-
Type:
-
Normal Colsed, SOLENOID VALVES
Operation and installation
Normally closed, it will open quickly when power is on. When operatirthe blue light will go on.lt will be closed immediately when the power is off and the light will g!off. There are bypass holes with an aperture of 3G1/ 4" provided onboth sides or at the bottom of the valve body.
With G1/4 aperture bypass holesBuilt-in filteringProtection level:I P54Sealing material: NBR
Body material: aluminum alloyAISI 302 steel springWorking temperature:-15C- 60CCoil temperature:65C
Rated voltage: 50/60Hz230Vac,110Vac,24VDC(And other specific)Coil level F,can be 360°rotation,can work 100%continuously for a long time.
