Quick Details
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9050kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Dimension of M/C:
-
L4970W1600H2425(mm)
-
Color:
-
Any color
-
Capacity:
-
360kg/hour
-
Working width:
-
2000-6200mm
-
Needle trip:
-
40mm,60mm
-
Needle density:
-
5000-6500pieses
-
Spare parts supply capacity:
-
Yes
-
Spare parts:
-
Needle and needle board
-
Machine type:
-
Non woven needle punching machine
-
Certification:
-
CE Certificate
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RD
-
Power:
-
22kw
-
Dimension(L*W*H):
-
L4970W1600H2425(mm)
-
Weight:
-
9050kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Dimension of M/C:
-
L4970W1600H2425(mm)
-
Color:
-
Any color
-
Capacity:
-
360kg/hour
-
Working width:
-
2000-6200mm
-
Needle trip:
-
40mm,60mm
-
Needle density:
-
5000-6500pieses
-
Spare parts supply capacity:
-
Yes
-
Spare parts:
-
Needle and needle board
-
Machine type:
-
Non woven needle punching machine
-
Certification:
-
CE Certificate

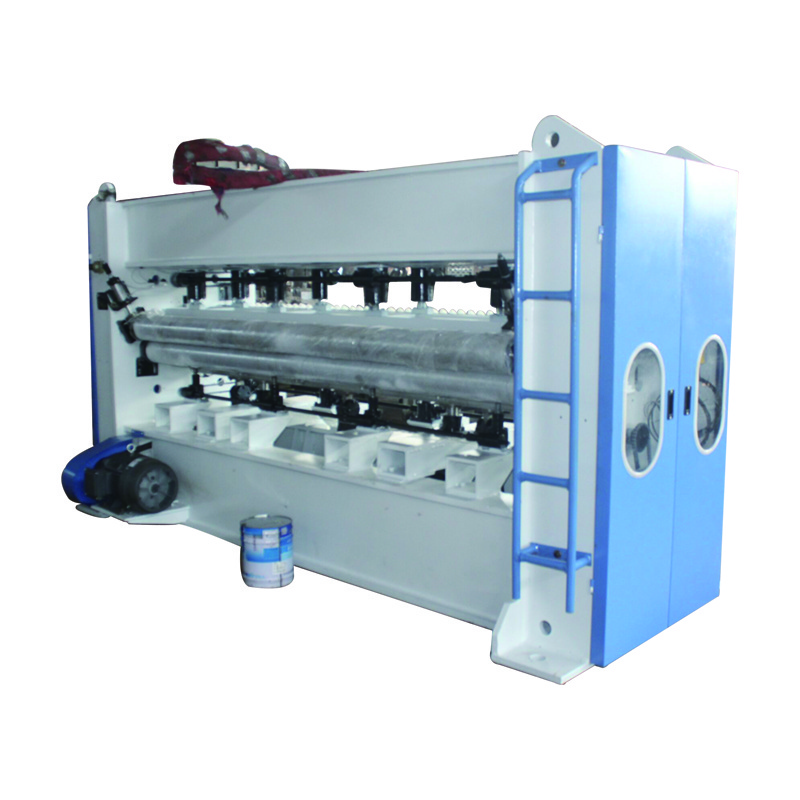

Needle Punching Machine
Non-Woven Punching Machine for recycle Yarn/Clothes /Cotton /Denim /Garment /Jute/Jeans /T-Shirt /Hosiery/ Fiber
Product Description
|
NO |
ITEM |
DESCRIPTION |
|
1 |
Model |
GMZ- 3 8 00mm |
|
Dimension of M/C |
L 4970 W 1600 H 2425 (mm) |
|
|
3 |
Weight |
9050kgs/9350kgs |
|
4 |
Total power |
22 kw |
|
5 |
Main motor |
15 KW; 3 phase AC power 50Hz / |
|
6 |
Needle density |
D epend on the customer ’ s requirements |
|
7 |
The average output |
360kg/hour ( W orking at width 2500mm&300g/m2 under running normal) |
|
8 |
Protection |
Main motor overload protection |
|
9 |
The control mode |
Constant power & Inverter control |
|
10 |
Working width |
38 00mm |
|
11 |
Needle plate |
H igh-strength aluminum alloy |
|
1 2 |
Bearing |
KOYO/Or according to the customer's requirements |
|
1 3 |
Type of holes |
Diameter1.83mm/ An inverted cone |
|
18 |
T rip of needle |
60 mm /40mm/40mm |
Product Features
Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
1. Adopt CNC gantry milling machine with good stability, high precision and high finish .
2.Automatic oil injection system,good for machine lubrication and maintenance.
3. Cagnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board.
4.Chrome plated delivery rollers with carved or patterned surface.
Note: In order to supply the exact price and corresponding technical data, please kindly confirm your details requirement as follows:
1. What is the final product?
2. What's the width of the product?
3. What's the Gsm (grams per square meter) and thickness of product?
4. What's the material you used? And what's the specification of the raw material?
5. What's the capacity you need?
6. Do you have any pics or samples of the final product? If yes, please send to me, thank you!
1.We have After-sale department,every client can get a timely feedback when they have any trouble about our machine.
2. We have installation team,if you need,we will provide installation service.
3. Our equipment warranty period is 1 years,within this time,we will provide free maintenance.
4.I f you have any other question or demand,please feel free to contact our businessmen,they will reply you within 8 hours.
