Quick Details
-
Model Number:
-
IG 5A
-
Warranty:
-
12 months, 12 Months
-
Type:
-
inverter
-
applied range:
-
general type
-
Inverter type:
-
LS IG5A
-
Color:
-
White
-
Protection:
-
Short Circuit/Overload/Overcurrent
-
Condition:
-
100% New and Original
-
Package Type::
-
Carton
-
Lead Time:
-
1-3 Working Days
-
Advantage:
-
Competitive
-
PAYMENT:
-
Paypal\TT\Western Union\Trade Assurance
-
Certification:
-
no
Quick Details
-
Rated Power:
-
1.5kw
-
Place of Origin:
-
Korea
-
Brand Name:
-
Original
-
Model Number:
-
IG 5A
-
Warranty:
-
12 months, 12 Months
-
Type:
-
inverter
-
applied range:
-
general type
-
Inverter type:
-
LS IG5A
-
Color:
-
White
-
Protection:
-
Short Circuit/Overload/Overcurrent
-
Condition:
-
100% New and Original
-
Package Type::
-
Carton
-
Lead Time:
-
1-3 Working Days
-
Advantage:
-
Competitive
-
PAYMENT:
-
Paypal\TT\Western Union\Trade Assurance
-
Certification:
-
no

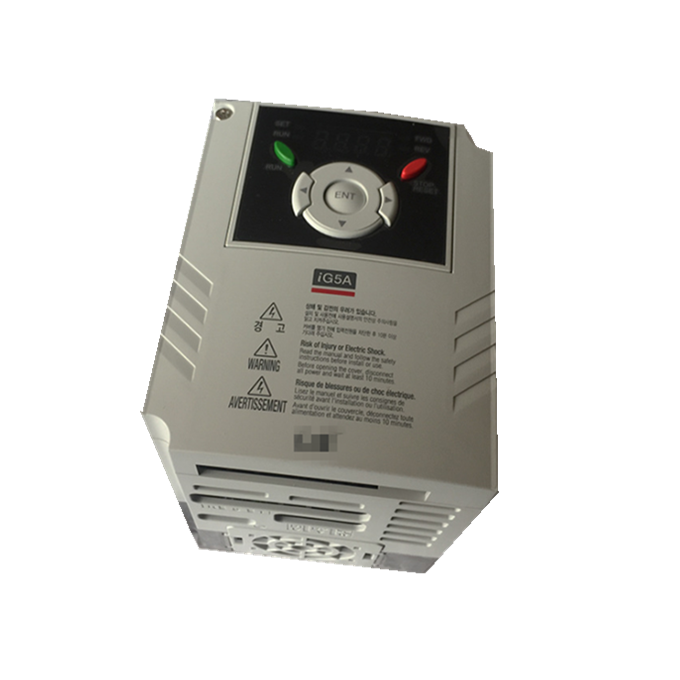

Frequency changer IG5A series product characteristic
Powerful, small size sensorless vector control inverter.
Compared with IG5,LS Starvert iG5A price and functionality are very competitive.The iG5A's user-friendly interface extends the drive's power range to 7.5kW,and its high torque characteristics and small size provide an optimal user environment.
Frequency changer IG5A series product characteristic
1.Sensorless vector control:Built-in sensorless vector control provides excellent speed control and powerful high torque.
2.Ground fault protection is provided during operation:Ground fault protection for the output terminals during operation.
3.Cooling fan control:By controlling the cooling fan,the iG5A provides a very quiet environment depending on the operating status.
4.Automatic carrier frequency control according to temperature variation:The iG5A automatically changes the carrier frequency when the temperature is too high by monitoring the internal temperature of the inverter.
5.User-friendly interface:4-way key allows you to easily master and monitor.
6.Easy to adjust the fan:iG5A fan is replaceable structural design, in case of fan failure.
7.Built-in 485 communication:built-in RS-485 communication support iG5A and other devices between the remote control and monitoring.
8.Built-in PID control:built-in PID function can control the flow rate,oil pressure and temperature and so on.No additional controllers are required.
9.Analog control:-10V to 10V.Inputs of analog signals from -10V to 10V provide user-friendly operation.
10.PNP / NPN input : PNP and NPN inputs are available,so an external power supply can be used.To this end,the user's controller to choose more.
Three Phase 200-230V(±10%)
SV004iG5 A -2 0.37kW
SV008iG5 A -2 0.75kW
SV008iG5 A -2 NC 0.75kW
SV015iG5 A -2 1.5 kW
SV022iG5 A -2 2.2 kW
SV037iG5 A -2 3.7 kW
SV040iG5 A -2 4.0 kW
SV0 55 iG5 A -2 5.5kW
SV0 75 iG5 A -2 7.5kW
Three Phase 380-460V(±10%)
SV00 4 iG5 A - 4 0.37kW
SV008iG5 A - 4 0.75kW
SV008iG5 A - 4NC 0.75kW
SV015iG5 A - 4 1.5 kW
SV022iG5 A - 4 2.2 kW
SV037iG5 A - 4 3.7 kW
SV040iG5 A - 4 4.0 kW
SV0 55 iG5 A - 4 5.5kW
SV0 75 iG5 A - 4 7.5kW
a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedbacks on goods and our service.
1. What is the payment?
Our compang accepts T/T or L/C at sight.
2. Why choose our company?
High quality service and low price. We are very professional in China ( mainland ).
3. What is your advantage compared with other company?
a. We have the most advanced equipment and technical force.
b. We have rich exprience in this field and related products.
c. We have professional teamwork and the best service for you.
Packing Details Standard packing
Delivery Time Shipped in 5-15 days after payment
