Huepar 3D Green Line Laser LS03CG Rotary Laser Levels with Hard Carry Case

Huepar 3D Green Line Laser LS03CG Rotary Laser Levels with Hard Carry Case

FOB Reference Price: Get Latest Price

≥1 Pieces

US $100

≥6 Pieces

US $96

≥50 Pieces

US $90

≥500 Pieces

US $72

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Wavelength:: 505-520nm

Place of Origin:: Jiangsu, China

Brand Name:: Huepar

Model Number:: LS03CG

Laser:: OSRAM

Laser class:: Class 2

Type:: 3 x 360° Green beam

Self-leveling range:: 3°±1°

Beam source:: 520nm

H/V accuracy:: ±3mm/10m ±1/9 In. at 33 Ft.

Working distance:: 20m(60-100LUX),≥40m with detector

IP rating:: IP54

Power source:: Dry battery&Li-Ion battery with Type -C

Charging method:: type-c charge

Quick Details

Warranty:: 1 years

Size:: 36.5*14*29.3cm

Precision:: ±2mm/10m

Wavelength:: 505-520nm

Place of Origin:: Jiangsu, China

Brand Name:: Huepar

Model Number:: LS03CG

Laser:: OSRAM

Laser class:: Class 2

Type:: 3 x 360° Green beam

Self-leveling range:: 3°±1°

Beam source:: 520nm

H/V accuracy:: ±3mm/10m ±1/9 In. at 33 Ft.

Working distance:: 20m(60-100LUX),≥40m with detector

IP rating:: IP54

Power source:: Dry battery&Li-Ion battery with Type -C

Charging method:: type-c charge

Specification

item	value
Grade	DIY, Industrial
Warranty	1 years
Dot Numbers	0
Customized support	OEM, ODM, OBM
Place of Origin	China
	Jiangsu
Brand Name	Huepar
Model Number	LS03CG
Size	36.51429.3cm
Precision	±2mm/10m
Wavelength	505-520nm
Laser	OSRAM
Laser class	Class 2
Type	3 x 360° Green beam
Self-leveling range	3°±1°
Beam source	520nm
H/V accuracy	±3mm/10m ±1/9 In. at 33 Ft.
Working distance	20m(60-100LUX),≥40m with detector
IP rating	IP54
Power source	Dry battery&Li-Ion battery with Type -C
Charging method	type-c charge

Product Description

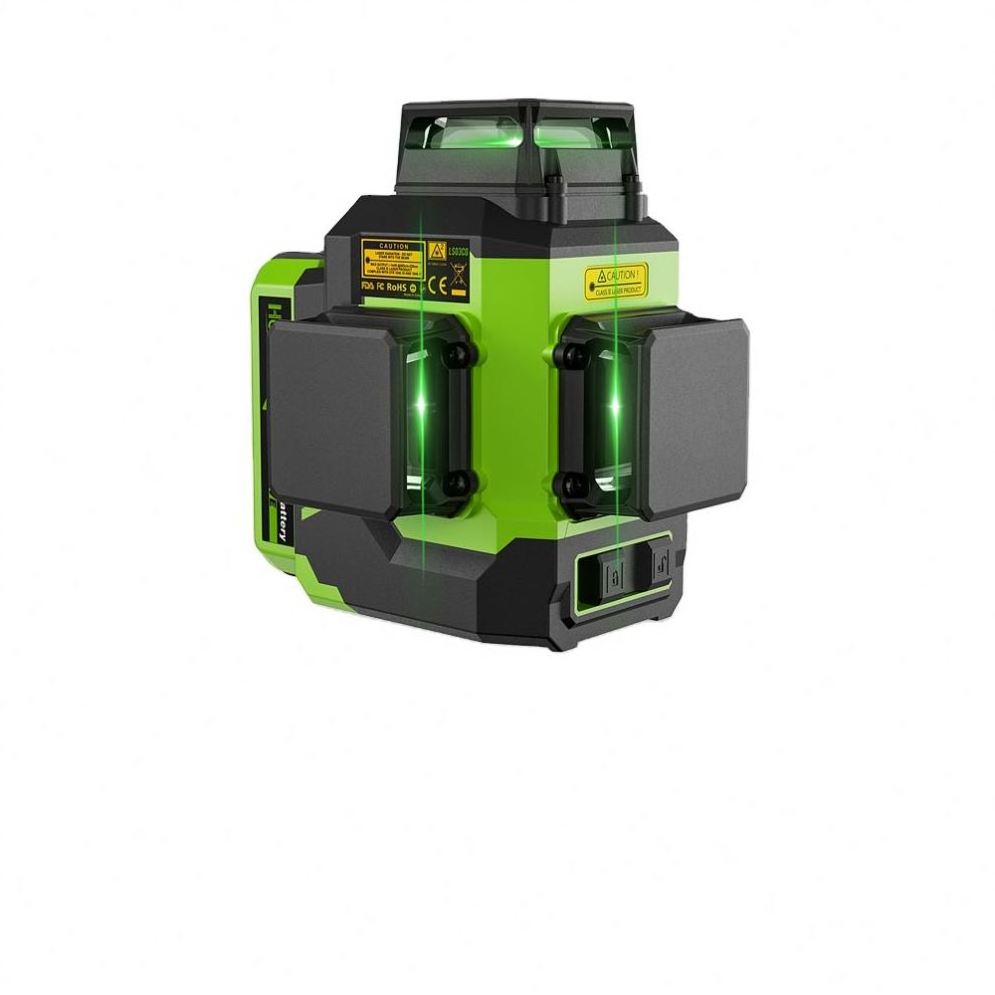

Huepar LS03CG 3 x 360 Green Laser Level Specifications:
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.
Projection: 3 x 360° Green Laser Lines
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1/9in at 33ft (±3mm/10m)
Leveling/Compensation Range: ±4°
Leveling Time: 3s
Working Distance: 95 feet(30m) (300 LUX), 197 feet(60m) with Huepar Laser Detector LR-5RG / LR-6RG
Operating Time: 8 hours continual use with all laser beams on
Power Source: Two 3.7V / 5200mAh Li-ion Battery
Mount Size: 1/4"-20
IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Operation Temperature Range: Between -10℃ and +50℃
Storage Temperature Range: Between -20℃ and +70℃
WARNING: Avoid direct exposure of the laser beam to the eyes.

2 Large Capacity Li-ion Batteries & Type-C Charging Port
This laser tool utilizes the 3.7V / 5200mAh large capacity Li-ion battery. An extra battery pack is included in the package for backup.
Users can charge the battery independently with the. Power adapter. There is a Type-C charging port on the Li-ion battery that can be charged separately.
4 battery indicators on the Li-ion battery pack allow users to know the current battery level and charging status.
With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

Packing & Delivery

Package Contents:

1 x Huepar LS03CG Laser Level

2 x Rechargeable Li-ion Batteries 3.7V / 5200mAh
1 x Type-C Power Cord
1 x Power Adapter
1 x Magnetic Bracket
1 x Green Laser Target Plate
1 x Hard Carry Case
1 x Multilingual User Manual
