Quick Details
-
Model Number:
-
XHQ-PT
-
PART NO.:
-
XHQ-PT
-
Type:
-
Diesel engine Stop Valve Solenoid
-
Function:
-
Stop Valve Solenoid For Generator
-
Keyword:
-
Solenoid Valve XHQ-PT
-
Condition:
-
100% new
-
Packing:
-
Standard Packing
-
Voltage:
-
12VDC
-
Weight:
-
0.35kg
-
Quality Class:
-
A Class high quality
-
Certification:
-
CEISO
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GuangLing, Guangling
-
Model Number:
-
XHQ-PT
-
PART NO.:
-
XHQ-PT
-
Type:
-
Diesel engine Stop Valve Solenoid
-
Function:
-
Stop Valve Solenoid For Generator
-
Keyword:
-
Solenoid Valve XHQ-PT
-
Condition:
-
100% new
-
Packing:
-
Standard Packing
-
Voltage:
-
12VDC
-
Weight:
-
0.35kg
-
Quality Class:
-
A Class high quality
-
Certification:
-
CEISO
Product Description

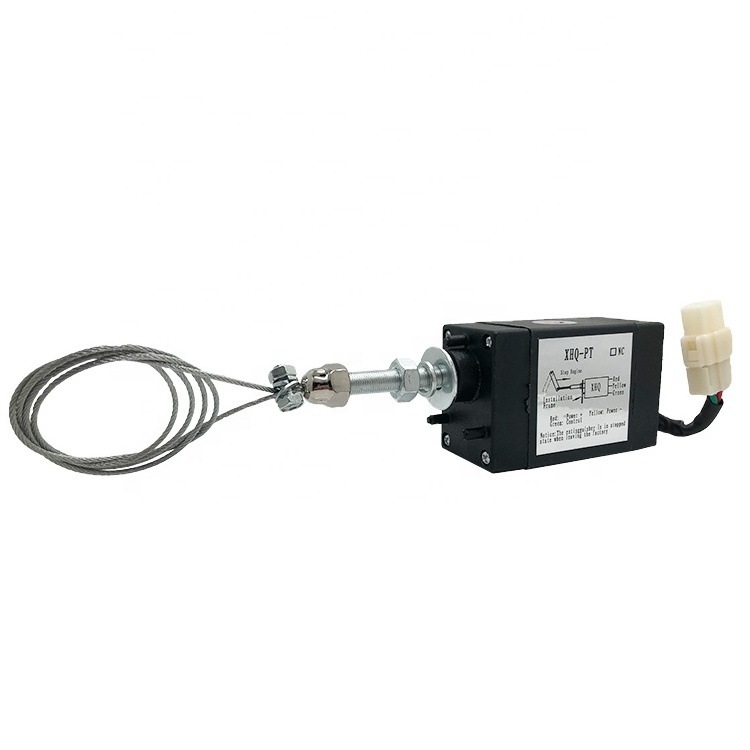

Diesel Engine Fuel Shut-off Solenoid Valve XHQ-PT 12V 24V genset stop generator power off valve for Generator Parts
Stop Solenoid XHQ-PT 12V 24V adopting updated product design, optimized material selection, advanced manufacturing process and production technology.By long time testing, the parts has been proved to be the excellent with longer duration, higher quality, more reliable performance and lower maintenance cost.
Product Parameters
|
Working Current
|
≤0.5A
|
|
|
Rated Voltage
|
DC 12V/24V
|
|
|
Working temperature
|
-40°C~105°C
|
|
|
Operating voltage
|
12V(9-15V DC) 24V(18-30V DC)
|
|
|
Full-load current
|
12V-2.0A 24V-1.0A(Automatic shut down the power when finish, operating current <15mA)
|
|
|
Control line operating current
|
<15mA
|
|
|
Operating stroke
|
53±1mm
|
|
|
Max.tension
|
90N
|
|
|
Environmental temperature
|
-30℃～60℃
|
|
|
Reaction time：
|
≤2 sec
|
|
|
Overload protection：When the solenoid overload or stuck, it will automatic shut down to prevent the solenoid damage. Disconnecting the powers supply of the solenoid for a while then turn on the power again when the failure reset, the solenoid can operating again.
|
|
|
Our Services
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FAQ
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is
longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms
or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
