Quick Details
-
Production Capacity:
-
1-15m/min
-
Power:
-
20hp/3600rpm, 20hp/3600rpm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Dimension(L*W*H):
-
2610x1970x1500mm
-
Name:
-
Concrete Curb Paver Machine
-
Application:
-
For concrete curb and gutter
-
Engine type:
-
HONDA Gasoline Engine, GX630
-
Traveling system:
-
Hydraulic motor
-
Vibrating rod:
-
Hydraulic vibrating rod
-
Nominal amplitude:
-
1.5mm
-
Control mode:
-
Auto/Manual
-
Overall dimension:
-
2610x1970x1500mm
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Max. Paving Thickness:
-
600mm
-
Weight:
-
1200 kg
-
Engine Brand:
-
HONDA GX160 Or B&S
-
Production Capacity:
-
1-15m/min
-
Power:
-
20hp/3600rpm, 20hp/3600rpm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Dimension(L*W*H):
-
2610x1970x1500mm
-
Name:
-
Concrete Curb Paver Machine
-
Application:
-
For concrete curb and gutter
-
Engine type:
-
HONDA Gasoline Engine, GX630
-
Traveling system:
-
Hydraulic motor
-
Vibrating rod:
-
Hydraulic vibrating rod
-
Nominal amplitude:
-
1.5mm
-
Control mode:
-
Auto/Manual
-
Overall dimension:
-
2610x1970x1500mm
-
After-sales Service Provided:
-
Field maintenance and repair service
Description
Description of

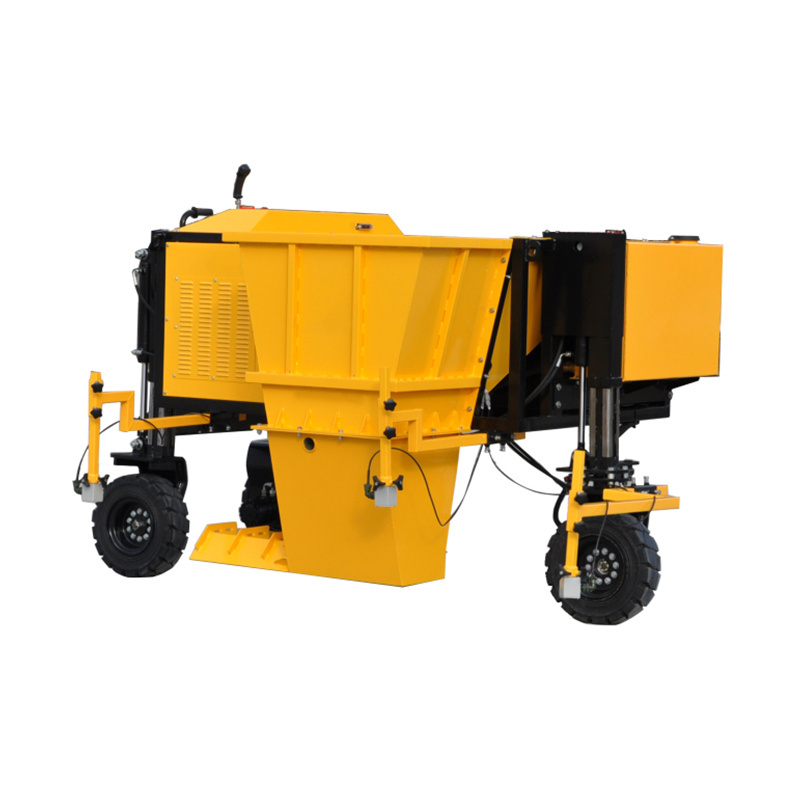

GDHM31 Automatic Concrete Curb Paver
GDHM31
is a new kind of concrete curb paver, hammer feeding, with a
manual
and
automatic control system
. It is high-tech machinery, the integrative technique of
mechanics-electronics-hydraulics
, with advanced sensors, the machine itself can adjust the level and straight, makes the construction easily. Molds can dismantle and change in order to meet the construction requirements.
Technical Data
|
Type
|
GDHM31
|
GDHM31D
|
||
|
Engine
|
|
|
||
|
Model
|
HONDA GX630
|
Yanmar 3TNV74F
|
||
|
Type
|
Gasoline Engine, air cooled, two cylinder
|
Diesel Engine, water cooled, 3 cylinder
|
||
|
Power
|
20hp/3600rpm
|
20hp/3600rpm
|
||
|
Fuel tank volume
|
60L
|
60L
|
||
|
Lubricant L
|
1.5L
|
|
||
|
Fuel consumption
|
313g/Kwh
|
313g/kWh
|
||
|
Traveling system
|
|
|
||
|
Driving
|
Hydraulic motor
|
Hydraulic/Plunger motor
|
||
|
Wheel
|
Solid puncture-proof type
|
Solid tyre
|
||
|
Speed
|
0-70m/min
|
0-70m/min
|
||
|
Vibration system
|
|
|
||
|
Vibrating rod
|
Hydraulic vibrating rod
|
Hydraulic vibrating rod
|
||
|
Nominal amplitude
|
1.5mm
|
1.5mm
|
||
|
Vibrating frequency
|
Adjustable
|
Adjustable
|
||
|
Exciting force
|
11KN(under 10000rpm)
|
11kN(under 10000rpm)
|
||
|
Control system
|
|
|
||
|
Control mode
|
Auto/Manual
|
Auto/Manual
|
||
|
Automatic control
|
Steering, Transverse slope and Longitudinal slope by high accuracy sensor
|
Steering, Transverse slope and Longitudinal slope by high accuracy sensor
|
||
|
Clean system
|
|
|
||
|
Power
|
Hydraulic motor
|
Hydraulic motor
|
||
|
Theoretical flow
|
20L/min
|
20L/min
|
||
|
Theoretical pressure
|
7Mpa
|
7Mpa
|
||
|
Working
|
|
|
||
|
Speed
|
0-15m/min
|
0-15m/min
|
||
|
Mold size
|
Width 100cm*Height 60cm
|
|
||
|
Dimension
|
|
|
||
|
Overall dimension
|
2610x1970x1500mm
|
|
||
|
Weight
|
1200kg
|
|
||
Product Application
Application of GDHM31 Automatic Concrete Curb Paver
GDHM31 automatic concrete curb paver
is mainly used to be made flower bed, curb of recreation green land, living buildings, road curbs, barriers on the highway.
Image Display
Details display
1. With HONDA
gasoline engine
or YANMAR
diesel engine
2. With imported Danfoss
hydraulic variable plunger pump
3. Integrated microcomputer control panel, easy operation
4. Forward, Reverse, and Steering
all controlled by control lever
, easy operation
5. With a hydraulic rod,
high frequency
, and strong power
6. With
high sensitivity tilt sensor
, to control the direction
7. With imported U.S.A Eaton driving motor
8. With hydraulic
high-pressure washing pump
can clean machine any time
9. With
imported Germany DEUTSCH connectors
,
waterproof and dustproof
Physical map display
Molds
We have a variety of molds to choose
, you could choose them from our available standard molds. Or please show us your mold drawing, including the width and height of your curb, we will recommend a suitable model for your project.
Packaging&Shipping
1. Wrapped by the plastic film;
2. Packaged with plywood, wooden cases, or according to your requirements.
