Quick Details
-
Application:
-
Apartment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUSTOMIZED
-
Model Number:
-
LM1202 swing gate opener
-
Product Name:
-

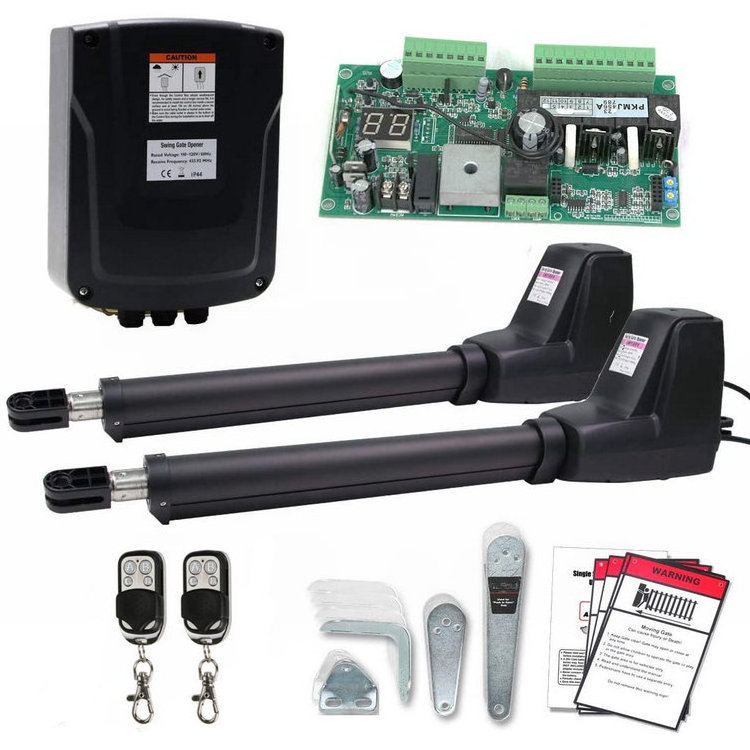

400kg dual swing gate opener automatic gate motor
-
Power supply:
-
24VDC solar and battery
-
Motor Power:
-
80W
-
Open(close) speed:
-
0.8"(20mm/s)
-
Max. Gate Weight:
-
880lbs(400kgs) per panel
-
Remote Control:
-
2pcs 433.92MHZ rolling rode remotes included
-
Certificate:
-
CE
-
Protection Class:
-
IP44
-
Carton Size:
-
90x44x19cm
-
G.w:
-
19.8kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Apartment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CUSTOMIZED
-
Model Number:
-
LM1202 swing gate opener
-
Product Name:
-
400kg dual swing gate opener automatic gate motor
-
Power supply:
-
24VDC solar and battery
-
Motor Power:
-
80W
-
Open(close) speed:
-
0.8"(20mm/s)
-
Max. Gate Weight:
-
880lbs(400kgs) per panel
-
Remote Control:
-
2pcs 433.92MHZ rolling rode remotes included
-
Certificate:
-
CE
-
Protection Class:
-
IP44
-
Carton Size:
-
90x44x19cm
-
G.w:
-
19.8kg
Product Description
800KG Heavy Duty Automatic Swing Gate Opener Solar Gate Motor
Optional Accessories
Specification
|
item
|
dual swing gate opener automatic gate motor
|
|
Warranty
|
12 months and lifetime tech support
|
|
Motor Power
|
80W
|
|
Gate Moving Speed
|
0.8"(20mm/s)
|
|
Max. Gate Weight
|
880LBS(400KGS)
|
|
Brand
|
Lockmaster
|
|
Model
|
LM1202
|
|
Usage
|
Driveway gates made by steel, wood, vinyl, and shaped as tube, panel, and chain-link
|
Features
* Soft start and soft stop
* Emergency release key in case of power failure
* Fast selecting push/pull to open
* Stop in case of obstruction during gate opening.
* Reverse in case of obstruction during gate closing.
* Built in adjustable auto-close (0-100 seconds)
* Built in max. Motor running time (MRT) for multiple safety protection (40 seconds)
* Reliable electromagnetism limit for easy adjustment
* Can be equipped with a wide range of accessories
* Emergency release key in case of power failure
* Fast selecting push/pull to open
* Stop in case of obstruction during gate opening.
* Reverse in case of obstruction during gate closing.
* Built in adjustable auto-close (0-100 seconds)
* Built in max. Motor running time (MRT) for multiple safety protection (40 seconds)
* Reliable electromagnetism limit for easy adjustment
* Can be equipped with a wide range of accessories
How to Power This Gate Opener?
Power Mode 1 - Use the AC electricity as the power source
Power Mode 2 -Use the AC electricity as the power source, solar and battery as back up power
Power Mode 2 -Use the AC electricity as the power source, solar and battery as back up power
|
LM602
|
LM902
|
LM1202
|
|
Motor Power
|
50W
|
80W
|
80W
|
|
Gate Moving Speed
|
20 mm/s (0.8 in/s)
|
20 mm/s (0.8 in/s)
|
20 mm/s (0.8 in/s)
|
|
Max. Gate Weight per panel
|
770LBS(350KGS)
|
880LBS(400KGS)
|
880LBS(400KGS)
|
|
Battery
|
Applicatible
|
Applicatible
|
Applicatible
|
|
Solar Compatible
|
Compatible
|
Compatible
|
Compatible
|
|
Packing Dimension
|
90x44x19cm
|
90x44x19cm
|
90X44X19cm
|
|
Shipping Weight
|
19.8KGS
|
17.5KGS
|
19.8KGS
|
|
Compatible Accessories
|
Not compatible with electric lock and exit wand
|
ALL LOCKMASTER accessories
|
ALL LOCKMASTER accessories
|
